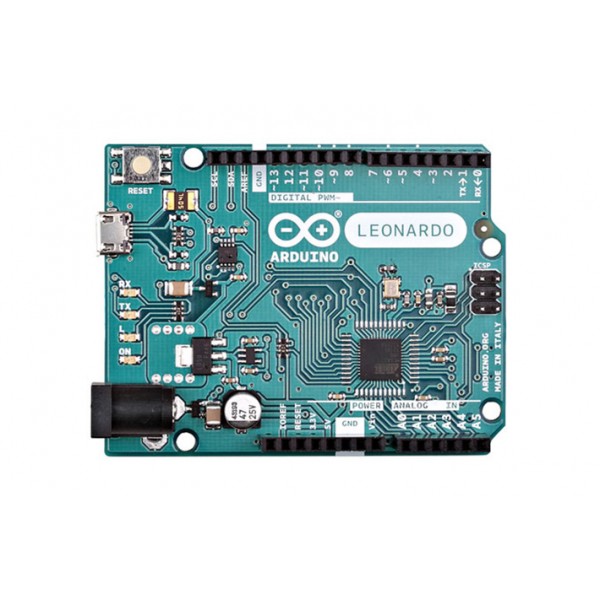

Arduino Leonardo Genuine (Original)

Features:

• Microcontroller Core: Powered by the robust "ATmega32U4" microcontroller unit (MCU), offering a powerful foundation for diverse applications.
• Built-in USB Interface: Incorporates a built-in USB interface, allowing the board to seamlessly emulate a keyboard or mouse when connected to a computer, expanding its interaction capabilities.
• Versatile Functionality: The ability to switch between keyboard and mouse emulation enhances its adaptability, catering to a wide range of user requirements and projects.
• Digital I/O Pins: Offers a generous 20 digital input/output pins, providing ample connectivity options for interfacing with various external devices and components.
• PWM-enabled Pins: Includes 7 Pulse Width Modulation (PWM) enabled pins, enabling precise control over output signals' intensity.
• Analog Input Pins: Incorporates 12 analog input pins, enabling the measurement of continuous analog signals.
• Enhanced Capabilities: Surpasses the capabilities of its predecessor, the Arduino Uno, making it an attractive choice for projects demanding more advanced features and capabilities.
• Broad Application Range: Suitable for a diverse range of projects, from robotics and automation to interactive installations and data acquisition systems.
• User-Friendly Design: Offers a user-friendly platform suitable for both beginners and experienced users.
• Open-Source Platform: Benefits from the Arduino open-source ecosystem, providing access to a vast community, libraries, and resources.
• Programming Flexibility: Supports programming via the Arduino IDE, simplifying the development process.
• Compact Form Factor: Designed with a compact form factor, convenient for embedding in space-constrained projects.
• Educational Tool: Allows users to learn about microcontrollers, electronics, and programming through hands-on experimentation.
• Debugging and Testing: Features serial communication through USB for debugging and testing during development.
• Expandability: Compatible with various shields and modules.

Principle of Work:

1. Program Execution: The "ATmega32U4" MCU stores and executes uploaded programs.
2. Clock Signal: Synchronizes operations using an oscillator or external crystal.
3. Input/Output Handling:
   • Digital Pins: Set as input/output, toggle HIGH/LOW.
   • Analog Pins: Reads analog voltage, converts to digital.
4. PWM Control: MCU outputs modulated signals to PWM pins.
5. USB Interface:
   • USB Driver: Allows keyboard/mouse emulation.
   • USB Data Transfer: Exchanges data with host computer.
6. Serial Communication: Through UART (Rx/Tx pins).
7. Analog-to-Digital Conversion (ADC): Converts analog voltages to digital values.
8. Memory Management:
   • Flash Memory: Stores program code.
   • SRAM: Temporary data storage.
   • EEPROM: Non-volatile storage.
9. Interrupt Handling: Responds to external events.
10. Power Management: Distributes and conserves power.

Pinout of the Module:

• Digital and Analog Pins: Pins 0–13 and A0–A5; logic levels of 0V and 5V; pull-up resistors available.
• Analog Input and Digital Mode: A0–A11 can function as analog or digital inputs (0–5V).
• PWM Pins: Pins 3, 5, 6, 9, 10, 11, 13 support 8-bit PWM with analogWrite.
• SPI: Supported via ICSP connector.
• UART: Pins 0 (RX), 1 (TX); Serial1 and Serial classes for communication.
• TWI/I2C: Dedicated pin used with Wire library.
• LED Indicators:
  • RX/TX: Flash during data transfer.
  • L: PIN 13 LED shows HIGH/LOW.
  • ON: Indicates power.
• Power Supply Connectors: Micro-USB, external (7–12V), ICSP.
• Power Pins Overview:
  • VIN: Unregulated input (7–12V).
  • VCC: 5V regulated output.
  • RST: Reset trigger.
  • GND: Ground reference.
  • IOREF: Monitors ATmega32U4 voltage level.

Applications:

• Custom Input Devices (Keyboards, Mice)
• Interactive Art Installations
• Prototypes for Home Automation
• Educational Tools for Teaching Electronics and Programming
• Data Acquisition Systems and Sensors
• Robotics Projects (Mobile Robots, Arms)
• DIY Gaming Devices and Peripherals
• Prototyping Wearable Technology
• Home Security Systems and Remote Monitoring
• Automotive Hacking and Prototyping
• Musical Instruments and MIDI Controllers
• Internet of Things (IoT) Prototypes
• Experimental Electronics and Circuit Testing
• Custom Gadgets for Specific Needs

Circuit:

No circuit is needed. This example blinks the onboard LED and prints status to the Serial Monitor.

Getting Started with Your Arduino Leonardo:

Step 1: Install Arduino IDE

Download the IDE from the official Arduino website. No external drivers needed.

Step 2: Connect the Board

Connect via data USB cable (not charge-only). USB powers and communicates with the board.

Step 3: Board Selection

1. Open "Tools" menu.
2. Select "Board".
3. Choose "Arduino Leonardo".

Step 4: Port Selection

1. Open "Tools" menu again.
2. Select "Port".
3. Choose the correct COM port for your board.

Step 5: Upload Your Sketch

1. Write or paste code in the IDE.
2. Click "Verify" to check for errors.
3. Click "Upload" to send code to the board.

Additional Step: Monitor Serial Output

1. Click the Serial Monitor icon in the top-right corner.
2. Use it for debugging and data interaction.

Code:

// Define the LED pin
const int ledPin = 13;

void setup() {
  // Initialize the LED pin as an output
  pinMode(ledPin, OUTPUT);

  // Start the Serial communication at 9600 baud
  Serial.begin(9600);
}

void loop() {
  // Turn on the LED
  digitalWrite(ledPin, HIGH);

  // Print LED status to Serial Monitor
  Serial.println("LED is ON");

  // Wait for 1 second
  delay(1000);

  // Turn off the LED
  digitalWrite(ledPin, LOW);

  // Print LED status to Serial Monitor
  Serial.println("LED is OFF");

  // Wait for 1 second
  delay(1000);
}
