Digital Voltmeter Ammeter USB Portable L Shape Tester (Charge DR)

Digital Voltmeter Ammeter USB Portable L Shape Tester (Charge DR)

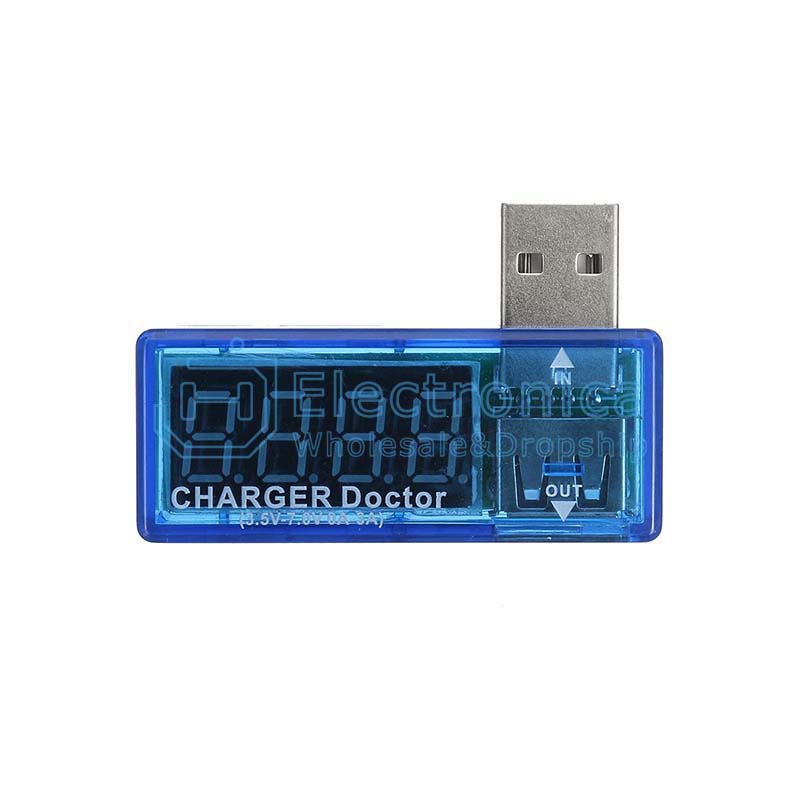

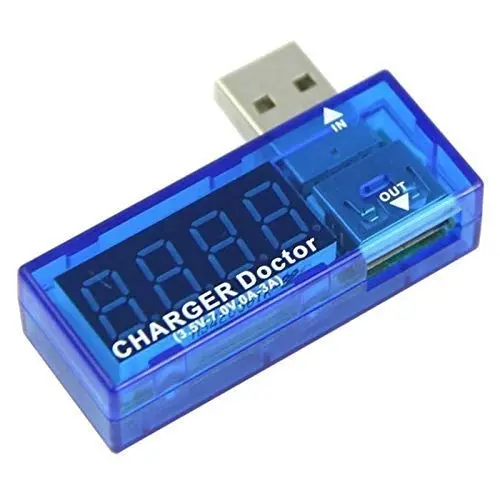

The USB Charger Doctor is a handy diagnostic tool designed to measure the working voltage and current output of any USB port or powered project. Housed in a blue plastic case, this compact dongle connects directly to USB devices and allows data lines to pass through while measuring current draw using a 0.05-ohm resistor connected to the power pin. Real-time voltage and current readings are shown on its digital display, making it ideal for analyzing devices such as chargers, cables, and mobile phones.

Package Includes

  • 1 x USB Charger Doctor Dongle

14.95 AED 14.95 AED Tax Included
14.95 AED Tax Included

Not Available For Sale

This combination does not exist.

USB Current Voltage Display Module
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



Features

  • Input Voltage Range: 3.5 to 7VDC (typical USB range: 4.75 to 5.25V)
  • Current Handling: Up to 3A
  • Automatic Switching: Alternates between voltage and current every 3 seconds
  • USB Compatibility: Supports USB 1.x and 2.x (USB 3.0 ports downgrade to v2)
  • Applications: Great for testing USB devices, debugging chargers, and measuring load levels

Specifications

  • USB Standards: USB 1.x and 2.x
  • Resolution: 10mV / 10mA
  • Operating Temperature: 0–60°C
  • Dimensions: 21mm x 53mm x 15mm (0.8" x 2.1" x 0.6")
  • USB Plug Length: 13mm (0.5")
  • Weight: 16.2g





Features:

  • Standard Raspberry Pi 40PIN GPIO extension header, compatible with Raspberry Pi series boards
  • I2C bus communication for real-time monitoring of battery voltage, current, power, and remaining capacity
  • Multi-battery protection circuits: overcharge/discharge protection, over current protection, short circuit protection, reverse protection, and equalizing charge
  • Onboard 5V regulator, up to 2.5A continuous output current
  • 5V USB output for powering additional boards
  • Batteries warning indicators for easy connection verification

Specifications:

  • Output voltage: 5V
  • Charger: 8.4V 2A
  • Control bus: I2C
  • Battery supported: 18650 Li battery (NOT included)
  • Dimensions: 56mm × 85mm
  • Mounting hole: 3.0mm
