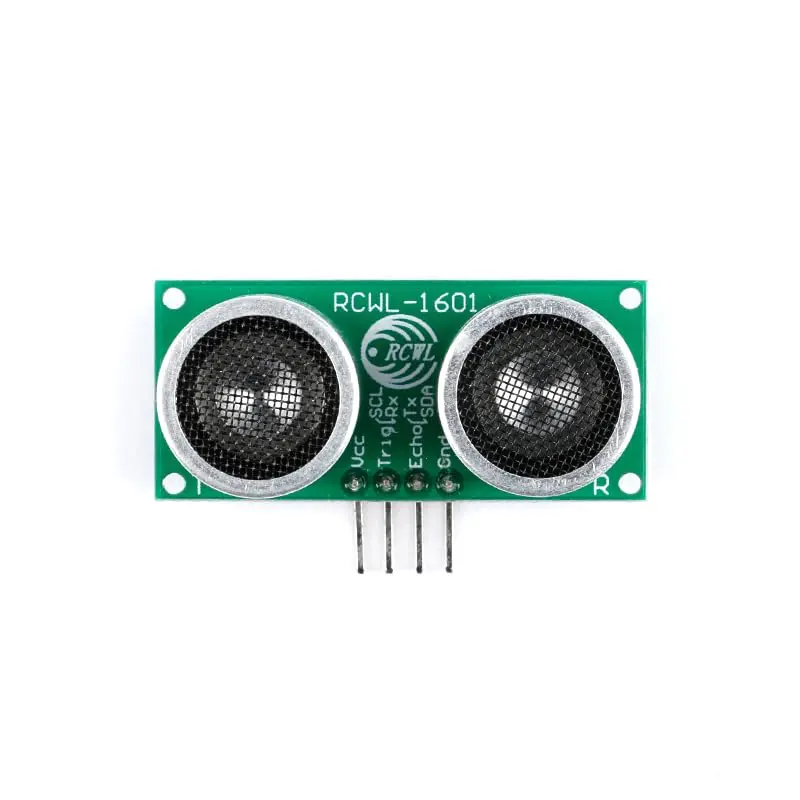

The RCWL-1601 is a compact and reliable ultrasonic ranging module designed for precise non-contact distance measurement. It is widely used in robotics, automation, smart systems, and industrial applications where accurate distance sensing is required. The module features a very small blind spot of only 2-3 cm and supports long-range detection up to approximately 400-450 cm. Its low power consumption and small physical size make it ideal for embedded and portable projects.
This sensor operates using a 40 kHz ultrasonic signal and maintains stable readings even when detecting soft, irregular, or fabric-based objects, which can be difficult for traditional infrared sensors. The RCWL-1601 provides high accuracy with ;2% error, a resolution of 1 mm, and a fast measurement cycle of 50 ms, allowing it to be used in real-time systems. It communicates through a simple GPIO interface and works with standard microcontrollers such as Arduino, ESP32, STM32, and Raspberry Pi.
Features
- Ultrasonic distance measurement using 40 kHz frequency
- Very small blind spot of 2-3 cm
- Long measurement range of 400-450 cm
- High accuracy with ;2% error and ;0.5 cm typical deviation
- 1 mm resolution for precise distance detection
- Fast measurement cycle of 50 ms
- Low working current of approximately 2.2 mA
- Supports wide power input from 3V to 5.5V
- Works well with irregular, soft, or fabric objects
- GPIO output for easy connection to microcontrollers
- Compact design (40 x 18 mm) suitable for tight spaces
Specifications
Working Voltage: 3V-5.5V
Working Current: 2.2 mA
Maximum Detection Distance: 400-450 cm
Blind Spot: 2-3 cm
Detection Accuracy: 2%
Resolution: 1 mm
Error: ;0.5 cm
Working Frequency: 40 kHz
Detection Angle: ;15° to ;20°
Measurement Cycle Time: 50 ms
Output Interface: GPIO
Operating Temperature: −10°C to 60°C (standard probe)
Operating Temperature: −10°C to 90°C (aluminum-shell probe)
Module Size: 40 x 18 mm
Package Includes
- 1 x RCWL-1601 Ultrasonic Ranging Module
