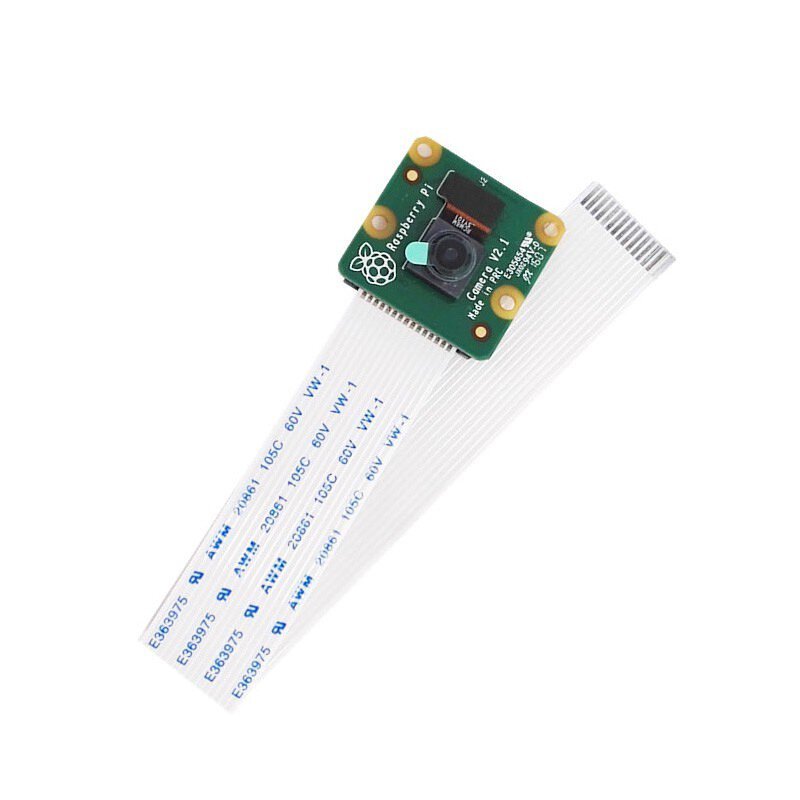

Camera Module V2 8MP for Raspberry Pi

Features:

1. 8-Megapixel Resolution: High-resolution image capture with the Sony IMX219 sensor.
2. Still Image Capture: Supports up to 3280x2464 pixels for detailed images.
3. Video Recording: Supports 1080p30, 720p60, and 640x480p90 video modes.
4. Compact Design: Ideal for space-constrained projects.
5. Easy Integration: Connects via ribbon cable to Raspberry Pi CSI port.
6. CSI Interface: Efficient data transfer through the Camera Serial Interface.
7. Fully Compatible: Works with all Raspberry Pi models.

Description:

This module features an 8MP Sony IMX219 sensor and connects to the Raspberry Pi via a CSI ribbon cable. It supports capturing still images at 3280x2464 resolution and video recording at multiple frame rates. It's ideal for surveillance, robotics, home automation, and more.

Principle of Work:

1. Physical Connection: Ribbon cable connects to the CSI port on the Raspberry Pi.
2. Sensor: Sony IMX219 converts light to digital signals.
3. Data Transfer: Communication via CSI interface.
4. Driver Support: Built-in camera drivers in Raspberry Pi OS.
5. Software: Control via Python libraries like picamera.
6. Image Capture: Capture photos and videos via software commands.

Note: Connect the ribbon cable with the blue backing facing away from the PCB on the camera, and towards the Ethernet port on the Raspberry Pi.

Pinout:

Applications:

• Photography
• Video Recording
• Surveillance Systems
• Robotics
• Home Automation
• Computer Vision Projects
• Remote Monitoring
• Education and Learning

Circuit Setup:

Enable the camera via Raspberry Pi Configuration under the Interfaces tab. Connect the camera module to the CSI port with correct orientation (blue side up on Pi).

Library Installation:

$ python -c "import picamera"
$ python3 -c "import picamera"

If not installed, use the following commands:

$ sudo apt-get update
$ sudo apt-get install python-picamera python3-picamera

Python Code Example:

from time import sleep
from picamera import PiCamera

camera = PiCamera()
camera.resolution = (1024, 768)
camera.start_preview()
sleep(2)
camera.capture('test_photo.jpg')

Technical Specifications:

• Weight: 3g
• CCD size: 1/4 inch
• Aperture: F2.0
• Focal Length: 3.04mm
• Resolution: 3280 × 2464 (8MP)
• Video: 1080p30, 720p60, 480p90
• Sensor: Sony IMX219
• Horizontal FOV: 62.2°
• Vertical FOV: 48.8°
• Dimensions: 25mm × 24mm × 9mm
• Compatible with: Raspberry Pi 4B, 3B, 3B+, 3A+, Zero W
