Prototype PCB Printed Circuit Board 4 Pcs Double Side

Prototype PCB Printed Circuit Board 4 Pcs Double Side

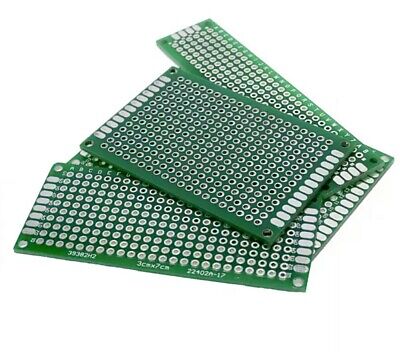

This FR4 Double-Sided Prototyping PCB Kit is a versatile solution for designing and testing electronic circuits. Made from high-quality fiberglass (FR4 material), these printed circuit boards are ideal for soldering components and building custom electronic prototypes. The boards feature plated-through holes and identical copper layouts on both sides, allowing for flexible circuit design and reliable connections. This kit is perfect for hobbyists, engineers, and students working on electronics development and experimentation.

Package Includes:

  • 1 x 50 x 70mm Double-Sided PCB
  • 1 x 40 x 60mm Double-Sided PCB
  • 1 x 30 x 70mm Double-Sided PCB
  • 1 x 20 x 80mm Double-Sided PCB
Double Sided perfboard
19.95 AED 19.95 AED (Tax included)

Add to cart
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days



Features:

  • High-quality FR4 fiberglass material for durability and strength.
  • Double-sided copper layout for flexible circuit design.
  • Plated-through holes for strong and reliable connections.
  • Multiple board sizes included for different project needs.
  • Compatible with standard through-hole components.
  • Easy to solder and prototype electronic circuits.
  • Suitable for DIY, educational, and professional use.



Principle of Work:

The PCB (Printed Circuit Board) works as a mechanical and electrical platform that connects electronic components through conductive copper traces.

  • Conductive Layers: Copper tracks carry electrical signals between components.
  • FR4 Base: Provides insulation and structural support.
  • Plated Through Holes: Connect top and bottom layers electrically.
  • Soldering Points: Allow secure mounting of electronic components.



Applications:

  • Electronic circuit prototyping.
  • DIY electronics projects.
  • Educational and training purposes.
  • Embedded system development.
  • Hardware testing and validation.



Technical Details:

  • Material: FR4 Fiberglass
  • Type: Double-Sided PCB
  • Surface: Copper clad on both sides
  • Hole Type: Plated Through Holes
  • Sizes Included: 50×70mm, 40×60mm, 30×70mm, 20×80mm
  • Color: Standard green PCB (may vary)
  • Use: Prototyping and circuit development
