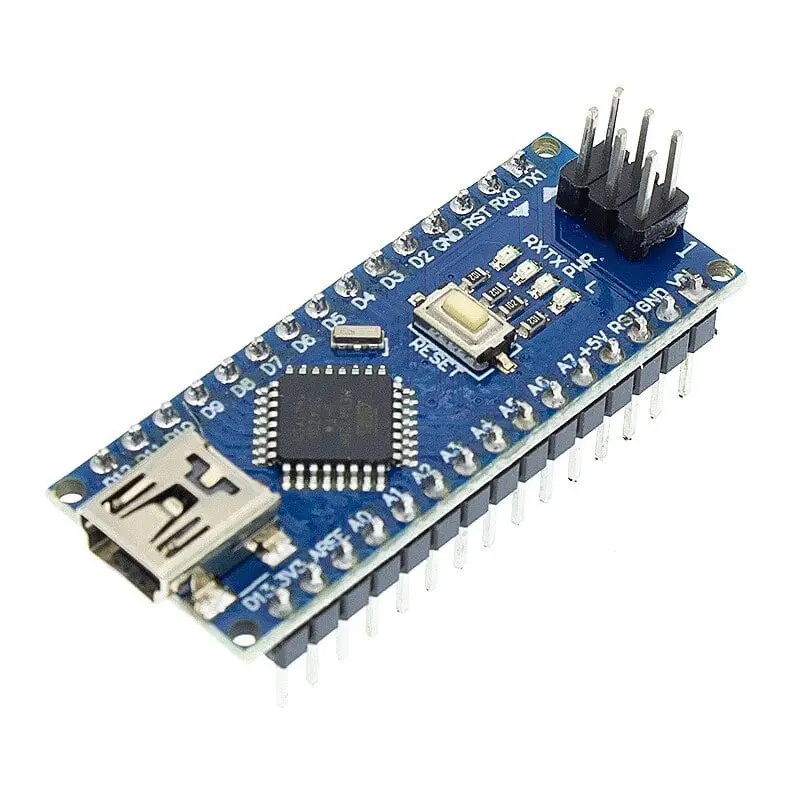

Arduino Nano V3 ATmega328 CH340 Soldered (Compatible)
The Arduino Nano v3 CH340 is a compact and cost-effective microcontroller board built around the powerful ATmega328P microcontroller and CH340 USB-to-serial chip. It is fully compatible with the Arduino IDE and ideal for breadboard use and space-constrained projects.
Package Includes:
- 1 x Arduino Nano v3 ATmega328P - CH340 (Soldered)
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Features:
- Microcontroller: ATmega328P (32KB Flash, 2KB SRAM, 1KB EEPROM)
- USB-to-Serial Chip: CH340
- Digital I/O Pins: 14 (6 with PWM support)
- Analog Inputs: 8
- Clock Speed: 16 MHz Quartz Crystal
- Compatibility: Fully compatible with Arduino IDE
- Breadboard-Friendly: Compact size, fits standard breadboards
- Power Consumption: Energy-efficient design
- Onboard LEDs: Built-in status/debug LED on Pin 13
- Open-Source: Hardware design is open-source
- USB Programming: Program and power via USB
- Expandable: Supports various shields and modules
Principle of Work:
This board operates via the ATmega328P microcontroller, executing uploaded code and managing I/O tasks. The CH340 chip enables communication between the board and a computer through USB, allowing you to upload sketches and interact via the Serial Monitor.
Workflow:
- Install CH340 USB driver if needed: Download here
- Connect board via USB
- Select board type: "Arduino Nano" in Arduino IDE
- Select processor: "ATmega328P"
- Select correct COM port
- Upload code via Arduino IDE

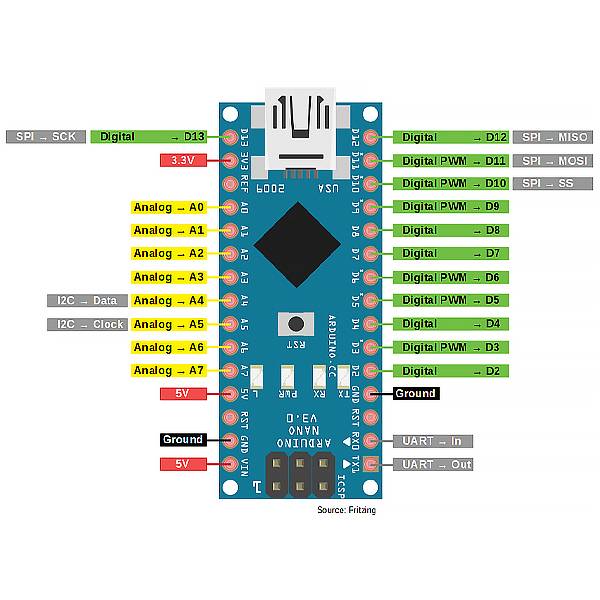

Pinout of the Board:

Pin | Name | Function |
---|---|---|
1 | D13 | Digital output (SPI clock) |
2 | D12 | Digital output (SPI MISO) |
3 | D11 | Digital output (SPI MOSI) |
4 | D10 | Digital output (SPI chip select) |
5 | D9 | Digital output (PWM) |
6 | D8 | Digital output (PWM) |
7 | D7 | Digital output |
8 | D6 | Digital output (PWM) |
9 | D5 | Digital output (PWM) |
10 | D4 | Digital output |
11 | D3 | Digital output (PWM) |
12 | D2 | Digital output |
13 | D1 | TX (UART) |
14 | D0 | RX (UART) |
15 | AREF | Analog reference voltage input |
16 | A0 | Analog input |
17 | A1 | Analog input |
18 | A2 | Analog input |
19 | A3 | Analog input |
20 | A4 | Analog/I2C SDA |
21 | A5 | Analog/I2C SCL |
22 | RESET | Reset |
23 | 5V | Power output |
24 | GND | Ground |
25 | Vin | Power input (7-12V) |
26 | NC | Not connected |
Applications:
- DIY electronics and home automation
- Robotics (e.g., line-followers, RC vehicles)
- Sensor data collection and environmental monitoring
- Wearables (e.g., smartwatches, fitness trackers)
- IoT systems with internet connectivity
- Educational electronics and STEM teaching
- Data logging using SD cards or Serial Monitor
- Art installations and interactive displays
- Automotive diagnostics or small-scale controls
- Wireless communication projects using Bluetooth/Wi-Fi
Sample Code:
void setup() {
pinMode(LED_BUILTIN, OUTPUT); // Set LED pin as output
Serial.begin(9600); // Start serial communication
}
void loop() {
if (Serial.available()) {
char command = Serial.read();
if (command == '1') {
digitalWrite(LED_BUILTIN, HIGH);
Serial.println("LED turned on");
} else if (command == '0') {
digitalWrite(LED_BUILTIN, LOW);
Serial.println("LED turned off");
}
}
}
Technical Specifications:
- Microcontroller: ATmega328P
- Clock Speed: 16 MHz
- Operating Voltage: 5V
- Input Voltage (Recommended): 7–12V
- Input Voltage (Limits): 6–20V
- Digital I/O Pins: 14 (6 PWM)
- Analog Inputs: 8
- Flash Memory: 32 KB (2 KB used by bootloader)
- SRAM: 2 KB
- EEPROM: 1 KB
- DC Current per I/O Pin: 20 mA
- DC Current for 3.3V Pin: 50 mA
- USB to Serial: CH340G
Resources:
Comparison: Nano v3 vs Pro Mini
Feature | Arduino Nano v3 | Arduino Pro Mini |
---|---|---|
Form Factor | USB onboard, breadboard-friendly | Smaller, no USB |
Microcontroller | ATmega328P | |
Voltage | 5V | 3.3V / 5V versions |
USB Interface | CH340G onboard | External FTDI adapter needed |
Ease of Use | Plug & Play with Arduino IDE | Requires adapter and more setup |
