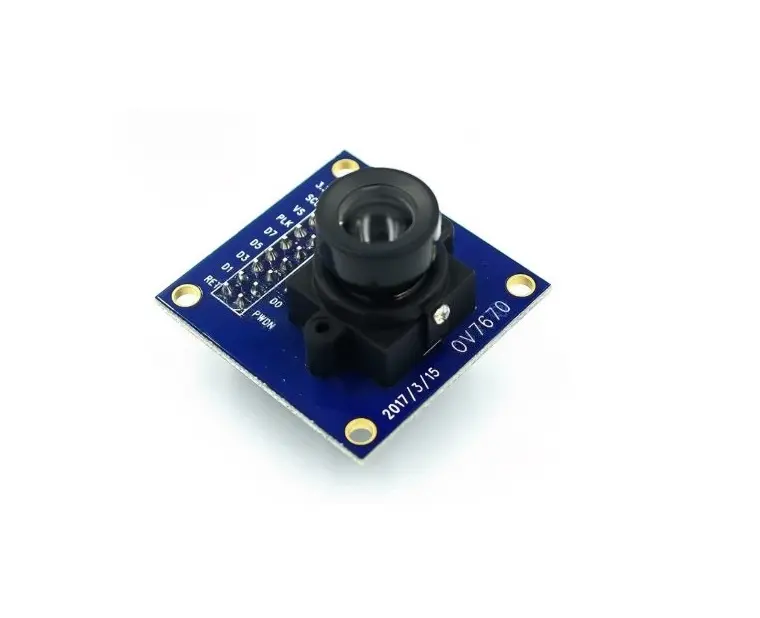

Camera CMOS OV7670 VGA 640X480 Without FiFo for Arduino

Camera CMOS OV7670 VGA 640X480 Without FiFo for Arduino

The OV7670 Camera Module is a compact, low-voltage image sensor that integrates a VGA camera and an image processor into a single chip. It communicates via the SCCB interface and supports various resolutions and formats with 8-bit output. Capable of capturing up to 30 frames per second, it gives users full control over image quality and transmission. OmmiVision’s advanced sensor technology enhances image clarity by minimizing optical and electronic artifacts, ensuring vivid and stable images.

Package Includes:

  • 1 x OV7670 Camera Module with FIFO

29.95 AED 29.95 AED Tax Included
29.95 AED Tax Included

Not Available For Sale

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



Features:

  • High Sensitivity: Performs well in low-light conditions.
  • Low Operating Voltage: Suitable for embedded systems.
  • SCCB Interface: Compatible with I2C communication.
  • AL422 3M-Bits FIFO: For efficient data buffering.
  • Multiple Output Formats: Raw RGB, RGB565/555/444, GRB4:2:2, YUV 4:2:2, YCbCr 4:2:2.
  • Resolution Options: Supports VGA, CIF, and resolutions down to 40 × 30.
  • Vario Pixel Method: Supports sub-sampling.
  • Automatic Image Control: AEC, AGC, AWB, ABF, ABLC.
  • Advanced Image Settings: Controls for saturation, hue, gamma, sharpness, and anti-blooming.
  • Built-in ISP: Handles noise reduction and defect correction.
  • Image Scaling and Lens Shading Correction.
  • Flicker Detection: Auto-detects 50Hz/60Hz flicker.
  • Automatic Enhancements: For color saturation, edge sharpening, and noise reduction.

Specifications:

  • IO Voltage: 2.5V to 3.0V
  • Operating Power: 60mW @ 15fps VGA YUV
  • Sleep Current: <20µA
  • Operating Temperature: -30°C to 70°C
  • Output Formats: YUV/YCbCr4:2:2, RGB565/555/444, GRB4:2:2, Raw RGB (8-bit)
  • Lens Size: 1/6"
  • Field of View: 25°
  • Maximum Frame Rate: 30fps (VGA)
  • Sensitivity: 1.3V / (Lux-sec)
  • Signal-to-Noise Ratio: 46 dB
  • Dynamic Range: 52 dB
  • Pixel Size: 3.6µm × 3.6µm
  • Dark Current: 12 mV/s @ 60°C
