Ethernet Network Module ENC28J60 (Big)

Ethernet Network Module ENC28J60 (Big)

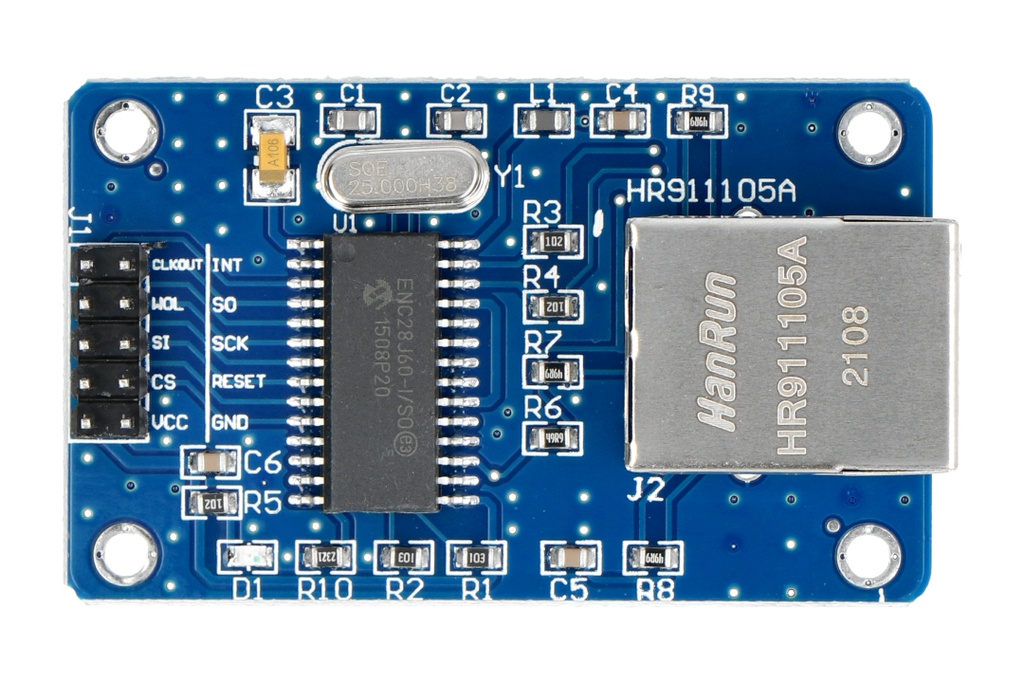

The ENC28J60 Ethernet Board is a compact and reliable module designed for easy integration with Arduino and other microcontrollers that support the SPI communication protocol. It is based on the ENC28J60 Ethernet controller developed by Microchip and is widely used in wired networking projects. This module operates at 3.3V while supporting 5V-tolerant interface lines, making it compatible with many popular microcontroller platforms. Communication with the host microcontroller is handled through SPI, ensuring fast and stable data transfer. With this Ethernet board, you can build applications such as web servers, network ping responders, and internet-connected home automation systems. The integrated RJ45 connector with built-in magnetics simplifies network connections and helps keep the board compact.

Package Includes:

1 x ENC28J60 Ethernet Board

30.00 AED 30.00 AED Tax Included
30.00 AED Tax Included

Not Available For Sale

This combination does not exist.

Ethernet Module
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



Features

  • Provides Ethernet connectivity for microcontrollers
  • Compatible with Arduino and other SPI-based controllers
  • Uses the SPI communication protocol
  • Operates at 3.3V with 5V-tolerant digital lines
  • Supports hosting a basic web server
  • Can respond to network ping requests
  • Suitable for home automation via the internet
  • Based on the Microchip ENC28J60 Ethernet controller
  • RJ45 connector with integrated magnetics for compact design

Specifications

  • Ethernet chip: ENC28J60 from Microchip
  • Network interface: HR911105A
  • Compatible with Arduino, AVR, LPC, and STM microcontrollers
  • Supply voltage: 3.3V with 5V tolerant digital IO lines
  • Crystal oscillator: 25 MHz
  • Board size: approximately 58 x 34 x 17 mm

ENC28J60 Module Connections With Arduino

Label Arduino Pin Description
+5V 5V Power supply input, may be 3.3V on some modules
GND GND Ground
INT NC Interrupt output
CLK NC Clock output from Ethernet controller
SO MISO 12 SPI data output
WOL NC Reserved pin
SCK SCK 13 SPI clock
SI MOSI 11 SPI data input
RST NC Reset pin
CS SS 8 or 10 Chip select
Q3 NC RX 3.3V supply according to datasheet

Arduino Code Example Using ENC28J60

The EtherCard library is commonly used to interface the ENC28J60 module with Arduino. After installing the library in the Arduino IDE, you can upload the following example code to test Ethernet communication and web requests.


#include "EtherCard.h"

static byte mymac[] = { 0x74, 0x69, 0x69, 0x2D, 0x30, 0x31 };
byte Ethernet::buffer[700];
static uint32_t timer;
const char website[] PROGMEM = "www.google.com";

static void my_callback (byte status, word off, word len) {
  Serial.println("Response:");
  Ethernet::buffer[off + 300] = 0;
  Serial.println((const char*) Ethernet::buffer + off);
}

void setup () {
  Serial.begin(57600);

  if (ether.begin(sizeof Ethernet::buffer, mymac, SS) == 0)
    Serial.println("Ethernet controller not found");

  if (!ether.dhcpSetup())
    Serial.println("DHCP failed");

  ether.printIp("IP: ", ether.myip);
  ether.printIp("Gateway: ", ether.gwip);
  ether.printIp("DNS: ", ether.dnsip);

  if (!ether.dnsLookup(website))
    Serial.println("DNS lookup failed");

  ether.printIp("Server: ", ether.hisip);
}

void loop () {
  ether.packetLoop(ether.packetReceive());

  if (millis() > timer) {
    timer = millis() + 5000;
    ether.browseUrl("/foo/", "bar", website, my_callback);
  }
}

Applications

  • Arduino-based web servers
  • Wired home automation systems
  • Network monitoring and diagnostics
  • Internet-connected sensors and controllers
  • Educational networking projects
