Stepper Motor 5V With ULN2003 H Bridge Driver

Stepper Motor 5V With ULN2003 H Bridge Driver

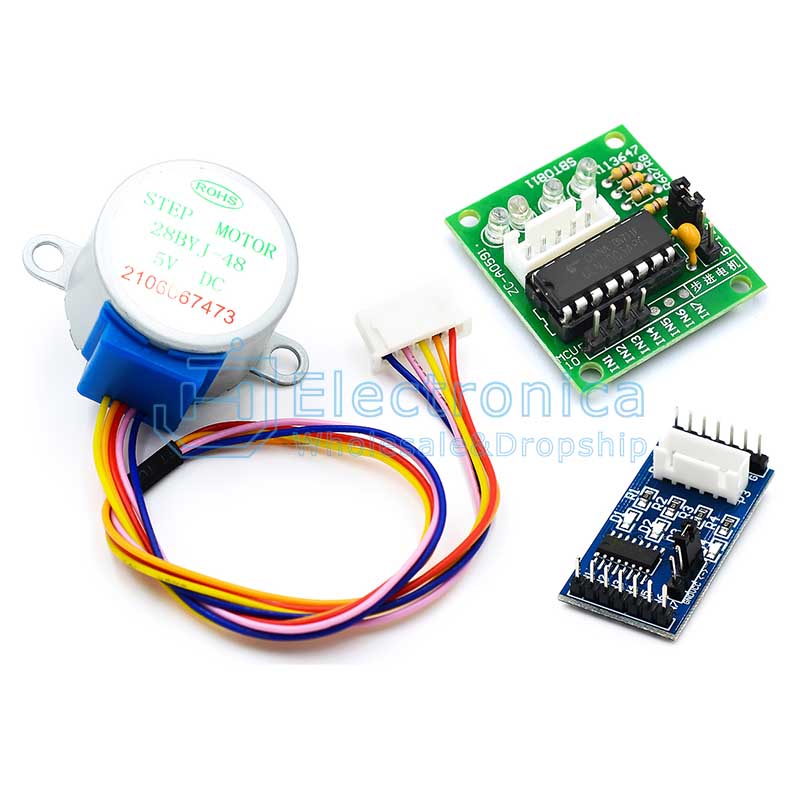

This robotic kit includes a 28BYJ-48 stepper motor paired with a ULN2003 driver module, designed for straightforward integration with microcontrollers such as the Arduino Uno. The 28BYJ-48 is a 5V high-torque stepper motor featuring over 2000 steps per revolution, ideal for miniature robot applications. It includes a geared shaft and propeller connection capability for enhanced versatility. The driver board connects via a 5-wire socket and has four LEDs indicating active coils, aiding troubleshooting and visual feedback. A motor on/off jumper is also provided for easy power management.
15.00 AED 15.00 AED Tax Included
15.00 AED Tax Included

Not Available For Sale

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



Features

  • Easy Integration: Compatible with MCUs such as Arduino Uno.
  • High Torque: Suitable for precise miniature robotics tasks.
  • Gear Shaft and Propeller Connection: Adds flexibility to projects.
  • Visual Coil Indicators: Four LEDs show which coil is powered.
  • Simple Connectivity: 5-wire socket connection for convenience.
  • Power Control: Motor on/off jumper for easy power switching.

Driver Module Specifications (ULN2003)

  • Chip: ULN2003A
  • Voltage Range: 5–12V power supply
  • Indicators: Onboard 4-way LED signal lights
  • Connector: Onboard XH-5P socket for direct stepper motor connection

Stepper Motor Specifications (28BYJ-48)

  • Type: High-quality stepper motor
  • Voltage: DC 5V
  • Diameter: 25 mm
  • Step Angle: 5.625° x 1/64 reduction
  • Reduction Ratio: 1/64
  • Number of Phases: 4
  • Frequency: 100 Hz
  • DC Resistance: 50Ω ± 7% (at 25°C)
  • Idle In-traction Frequency: > 600 Hz
  • Idle Out-traction Frequency: > 1000 Hz
  • In-traction Torque: > 34.3 mN·m (at 120 Hz)
