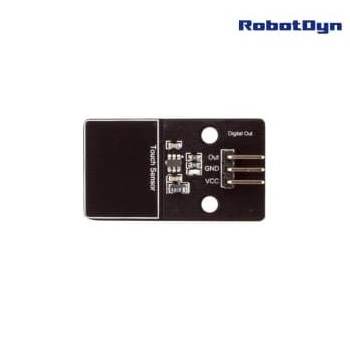

Touch Switch Capacitive Sensor for Arduino RobotDYN

Touch Switch Capacitive Sensor for Arduino RobotDYN

The Robotdyn Capacitive Touch Sensor Switch Module uses the natural capacitance of the human body to detect touch. When a user touches the central sensor pad, the module detects a change in capacitance and switches its digital output state. This allows reliable touch based input without mechanical buttons, making it ideal for modern interactive and automation projects.

Package Includes

  • 1 x Robotdyn Capacitive Touch Sensor Switch Module
15.00 AED 15.00 AED Tax Included
15.00 AED Tax Included

Not Available For Sale

This combination does not exist.

Touch Module
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



Features

  • Capacitive touch sensing technology
  • Detects touch using the human body as a capacitive element
  • Non mechanical and wear free operation
  • Fast and reliable digital output response
  • Simple three pin interface for easy integration
  • Built in LED provides visual feedback on touch detection
  • Suitable for Arduino and other microcontrollers



Principle of Operation

The human body naturally holds an electrical charge. When the user touches the sensor pad, the body becomes part of the sensor circuit. This causes a measurable change in capacitance, which is detected by the onboard controller. The controller then changes the digital output state and activates the indicator LED.

Pinout

  • VCC Power supply input 3.3V to 5V
  • GND Ground connection
  • Out Digital signal output

Application Areas

  • Interactive electronic projects
  • Touch controlled automation systems
  • Smart home interfaces
  • Educational electronics experiments
  • Rapid prototyping of touch enabled devices



Arduino Test Code

int touchPin = 2;
int ledPin = 13;
int touchState = 0;

void setup() {
  pinMode(touchPin, INPUT);
  pinMode(ledPin, OUTPUT);
  Serial.begin(9600);
}

void loop() {
  touchState = digitalRead(touchPin);

  if (touchState == HIGH) {
    digitalWrite(ledPin, HIGH);
    Serial.println("Touch detected");
  } else {
    digitalWrite(ledPin, LOW);
    Serial.println("No touch");
  }

  delay(200);
}

Technical Details

  • Manufacturer Robotdyn
  • Sensor type Capacitive touch
  • Number of pins 3
  • Operating voltage 3.3V to 5V
  • Output type Digital
  • Built in LED indicator
