Expansion Sensor Shield With SD Card Logger For Arduino Mega 2560 RobotDYN

Expansion Sensor Shield With SD Card Logger For Arduino Mega 2560 RobotDYN

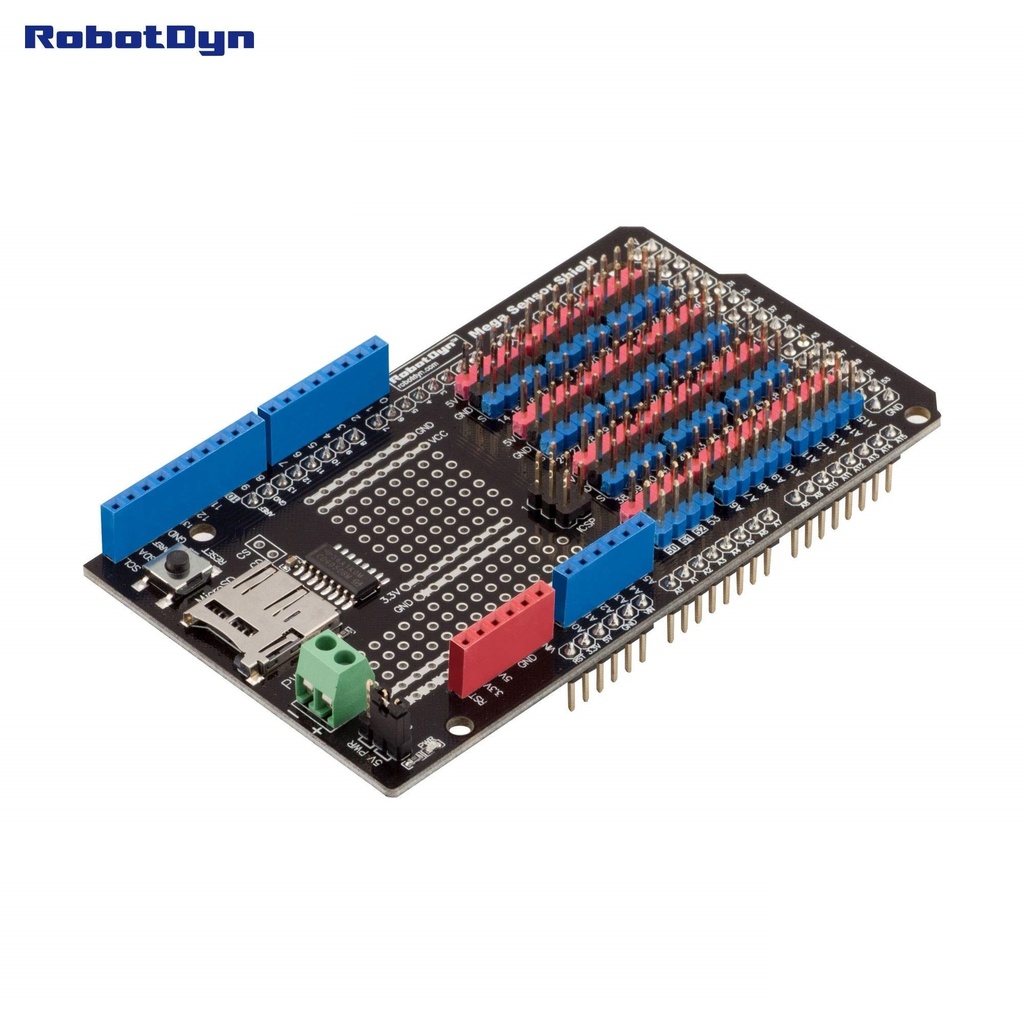

The Robotdyn Sensor Shield for Arduino Mega is designed to simplify prototyping and data logging applications. It provides dedicated connection points for sensors, relays, servos, buttons, and potentiometers, while also including an onboard Micro SD card reader for data storage. The shield features an additional soldering area that allows users to add custom circuits and external components easily.

Package Includes

  • 1 x Robotdyn Sensor Shield for Arduino Mega with Micro SD Card Reader
Data Logger
36.75 AED 36.75 AED (Tax included)

Add to cart
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days



Features

  • Designed specifically for Arduino Mega boards
  • Integrated Micro SD card reader and writer
  • Supports FAT16 and FAT32 formatted SD cards
  • Extra soldering area for custom prototyping
  • Easy connection of sensors, relays, servos, and other modules
  • Flexible chip select and card detect pin configuration
  • Supports external power or Arduino 5V power supply



Micro SD Card Function

The onboard SD card interface allows reading and writing data to standard Micro SD cards. The card must be formatted using FAT16 or FAT32 file systems. The chip select and card detect pins can be connected to any available Arduino Mega input or output pin using jumper wires.

Pinout Overview

  • 5V Arduino 5V power supply
  • GND Common ground
  • Digital pins Available through shield headers
  • Analog pins Available through shield headers
  • CS SD card chip select configurable via jumper wire
  • CD SD card detect configurable via jumper wire

Applications

  • Data logging projects
  • Sensor monitoring systems
  • Robotics control platforms
  • Educational Arduino experiments
  • Rapid prototyping and testing



Arduino Test Code

#include <SPI.h>
#include <SD.h>

const int chipSelect = 4;

void setup() {
  Serial.begin(9600);

  if (!SD.begin(chipSelect)) {
    Serial.println("SD card initialization failed");
    return;
  }

  Serial.println("SD card ready");

  File dataFile = SD.open("datalog.txt", FILE_WRITE);

  if (dataFile) {
    dataFile.println("Sensor Shield Data Logger Test");
    dataFile.println("Logging successful");
    dataFile.close();
    Serial.println("Data written to SD card");
  } else {
    Serial.println("Error opening datalog.txt");
  }
}

void loop() {
}

Technical Details

  • Compatible board Arduino Mega
  • Storage Micro SD card
  • File system FAT16 and FAT32
  • Power supply 5V from Arduino or external source
  • Onboard soldering area for custom circuits
