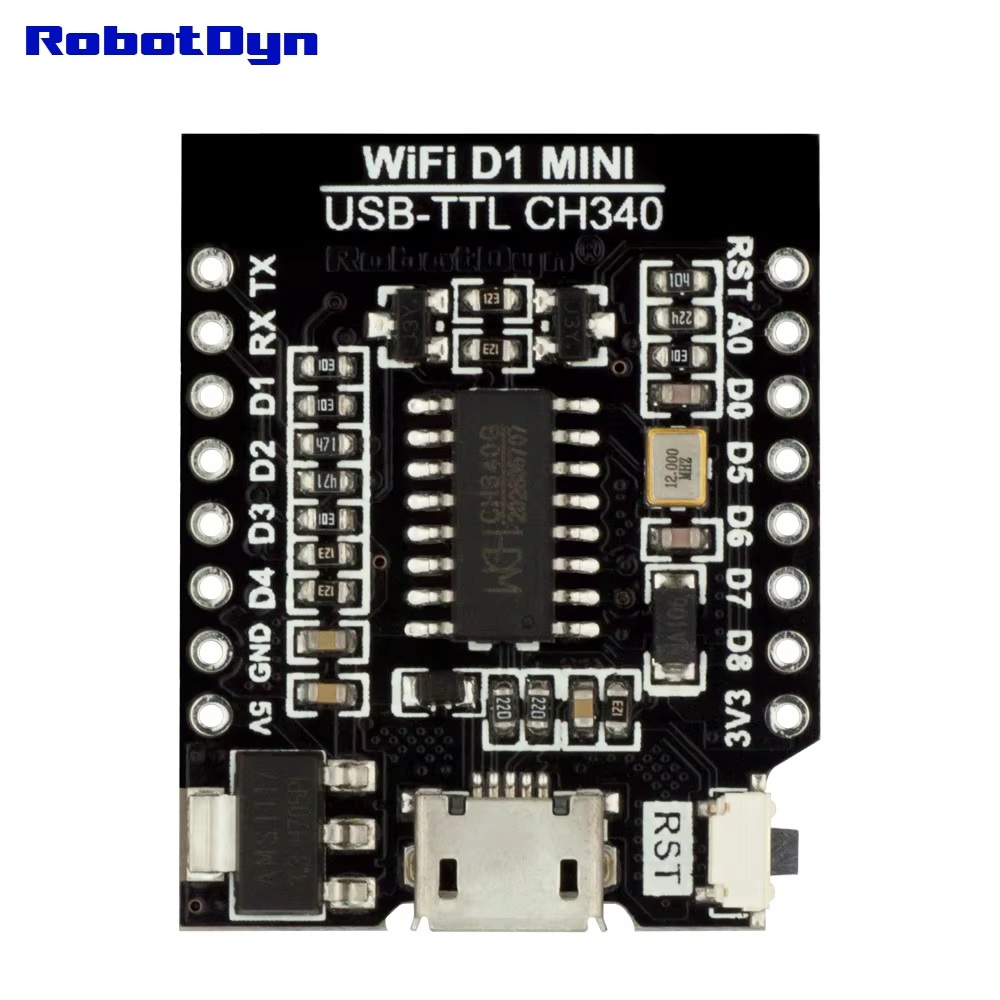

WIFI D1 mini - USB-TTL ch340 Converter Shield (Serial programmer ) (Per Piece)

WIFI D1 mini - USB-TTL ch340 Converter Shield (Serial programmer ) (Per Piece)

Working directly with ESP 12 or ESP 07 WiFi modules can be difficult due to their small size and lack of onboard USB programming support. This USB TTL adapter board with CH340 USB to serial converter is designed to solve that problem by allowing ESP 07 or ESP 12 modules to be soldered directly onto the board. Once installed, the module becomes functionally similar to a D1 mini style development board and can be programmed easily using a USB cable without any external programmer.

Package Includes

  • 1 x USB TTL Adapter Board with CH340
  • 2 x Male Pin Header 1x8 pins
  • 2 x Female Pin Header 1x8 pins
  • 2 x Stackable Pin Header 1x8 pins
27.30 AED 27.30 AED Tax Included
27.30 AED Tax Included

Not Available For Sale

This combination does not exist.

Wemos ESP8266 Shield
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



Features

  • USB to TTL serial converter using CH340 chipset
  • Designed for ESP 07 and ESP 12 WiFi modules
  • Converts ESP modules into D1 mini compatible form factor
  • Allows direct USB programming without additional tools
  • Supports firmware upload and serial communication
  • Compact and beginner friendly design



Pinout

  • 5V USB power input
  • 3.3V regulated output for ESP module
  • TX Serial transmit
  • RX Serial receive
  • GND Ground
  • EN Enable pin
  • IO0 Boot mode selection

Applications

  • ESP8266 firmware development
  • WiFi IoT prototyping
  • Serial debugging and testing
  • Educational ESP projects
  • Converting ESP modules into development boards



Arduino IDE Test Code

void setup() {
  Serial.begin(115200);
  Serial.println("ESP USB TTL Adapter Ready");
}

void loop() {
  Serial.println("Hello from ESP8266");
  delay(1000);
}

Technical Details

  • USB to serial chip CH340
  • Compatible modules ESP 07 and ESP 12
  • Operating voltage 5V via USB
  • Logic level 3.3V
  • USB interface Micro USB
  • Supports standard ESP8266 boot modes
