Features:
- Quad XNOR gate in a single package
- Operates with supply voltage from 2V to 6V
- Compatible with TTL and CMOS logic levels
- High speed switching performance
- Low power consumption
- Wide operating temperature range

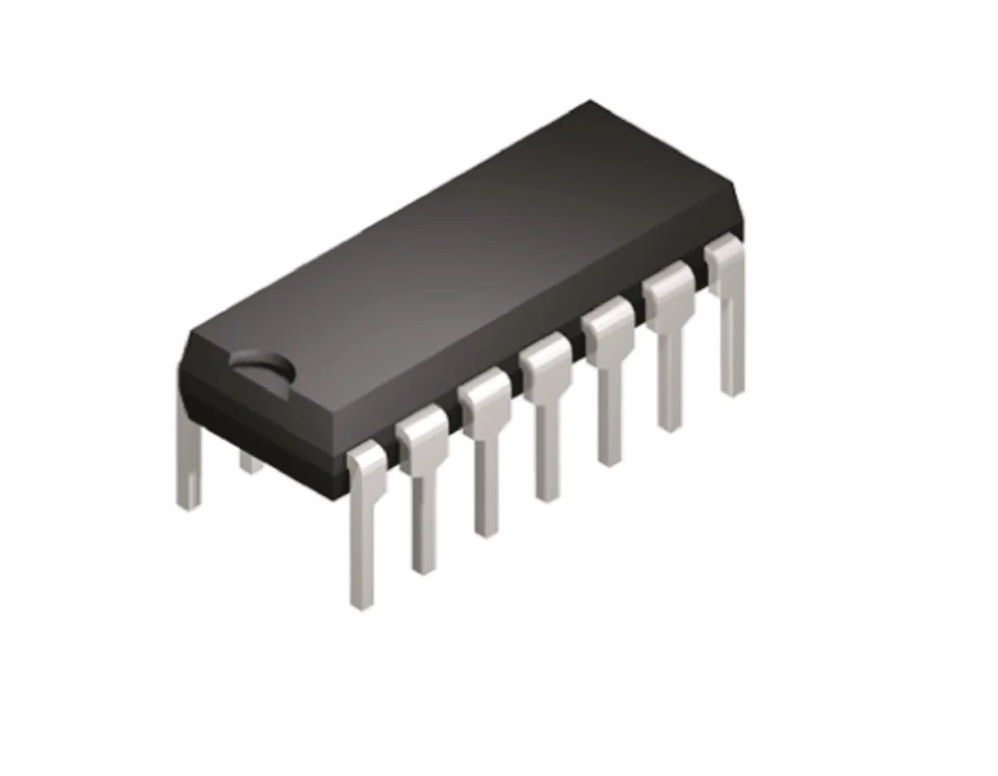

- Compact 14 pin DIP package
Specifications:
- Logic Type: XNOR
- Number of Gates: 4
- Supply Voltage: 2V to 6V
- Operating Temperature Range: -40 C to 125 C
- Package Type: 14 pin DIP
Principle of Operation:
Each XNOR gate compares two binary input signals. When both inputs are identical, the output switches to a high state. When the inputs differ, the output switches to a low state. The internal CMOS structure ensures efficient operation with minimal power usage.
Pin Description:
- Inputs: Pins 1, 2, 5, 6, 9, 10, 12, 13
- Outputs: Pins 3, 7, 11, 14
- Ground: Pin 4
- Supply Voltage: Pin 8
Logic Function:
The output is high only when both input signals are equal. This function is commonly used for comparing binary values.
Applications:
- Binary comparison circuits
- Parity checking systems
- Arithmetic logic circuits
- Memory and address decoding circuits
- Control and automation systems
Comparison:
Compared to the 74SL266, the 74HC266N offers lower power consumption and a wider operating voltage range. While the 74SL266 provides faster switching speeds, it consumes significantly more power and operates at a fixed voltage range.
