TFMini -S Micro LiDAR Module

TFMini -S Micro LiDAR Module

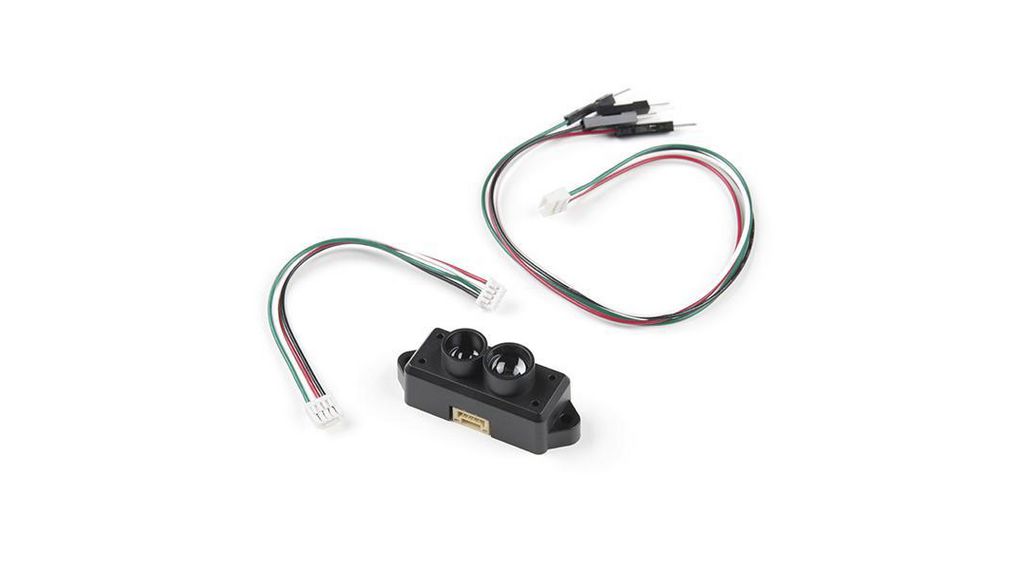

The TFMini S Micro LiDAR Module is a small lightweight and low power time of flight LiDAR sensor designed for distance sensing applications. It offers a measuring range of up to twelve meters with high accuracy and a data output rate of up to one hundred hertz. The module is easy to integrate with microcontrollers or single board computers using UART or I2C communication and is widely used in robotics drones and automation systems.

Package Includes

  • 1 x TFMini S Micro LiDAR Module
  • 1 x Connection Cable

177.45 AED 177.45 AED (Tax included)

Add to cart
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days



Features

  • Measuring range up to twelve meters for long distance sensing
  • High accuracy distance measurement for short and long ranges
  • Distance resolution of one centimeter
  • High frame rate up to one hundred hertz
  • High ambient light immunity suitable for outdoor use
  • Class one laser safety suitable for all environments
  • Supports UART and I2C communication interfaces
  • Compact size and lightweight design
  • Low power consumption suitable for battery powered projects





Principle of Operation

The module emits an infrared laser pulse using a VCSEL light source. The laser beam reflects off a target object and returns to the receiver inside the module. A high precision timer measures the travel time of the laser pulse and calculates the distance using the speed of light. The measured distance data is transmitted through the UART or I2C interface.

Pinout

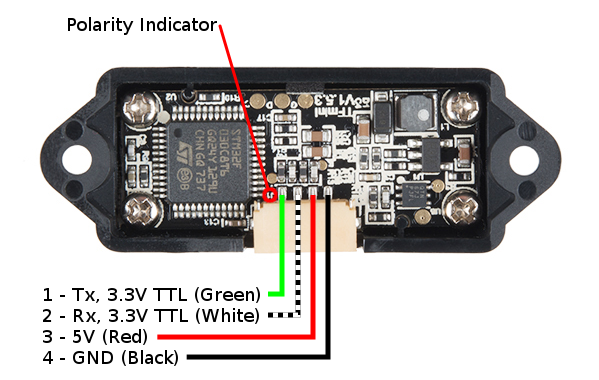

TFMini S Pinout

Pin Number Function Wire Color
1 UART TX 3.3V TTL Green
2 UART RX 3.3V TTL White
3 Power 5V Red
4 Ground Black



Applications

  • Robotics obstacle detection and navigation
  • Drones altitude control and landing assistance
  • Industrial automation and distance monitoring
  • Security and surveillance systems
  • Traffic monitoring systems
  • Agriculture crop and irrigation monitoring
  • Motion detection and interactive systems

Circuit

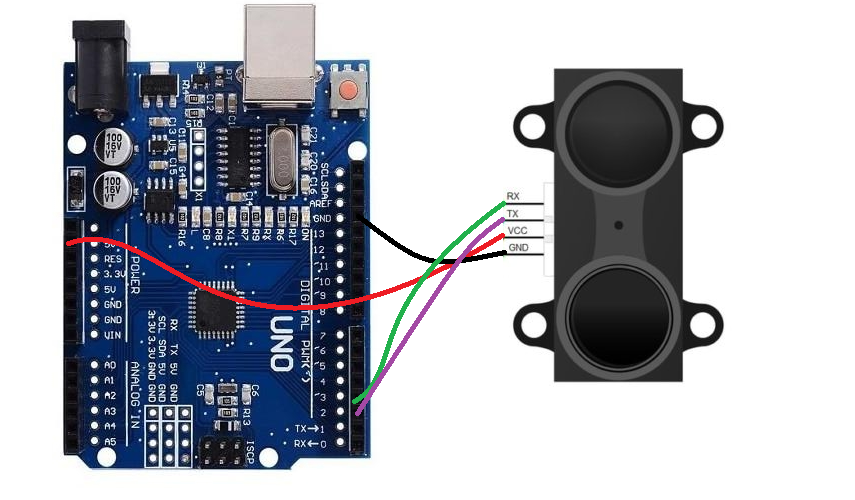

TFMini S Circuit

TFMini Pin Arduino Pin
VCC 5V
GND GND
TX D3
RX D2

Library Installation

  1. Open the Arduino IDE
  2. Click Sketch then Include Library
  3. Select Manage Libraries
  4. Search for TFMini
  5. Install the SparkFun TFMini Plus library

Example Arduino Code

#include "SoftwareSerial.h"
#include "TFMini.h"

SoftwareSerial SerialTFMini(2, 3);
TFMini tfmini;

void setup() {
  Serial.begin(115200);
  SerialTFMini.begin(115200);
  tfmini.begin(&SerialTFMini);
}

void loop() {
  int distance = 0;
  int strength = 0;

  tfmini.getDistance(&distance, &strength);

  if (distance > 0) {
    Serial.print(distance);
    Serial.print(" cm ");
    Serial.print("strength ");
    Serial.println(strength);
  }

  delay(100);
}

Technical Specifications

  • Operating range from zero point one to twelve meters
  • Distance resolution one centimeter
  • Frame rate up to one hundred hertz
  • Ambient light immunity suitable for outdoor environments
  • Operating temperature from zero to sixty Celsius
  • Light source infrared VCSEL
  • Supply voltage five volts
  • Average current consumption one hundred forty milliamps
  • Peak current two hundred milliamps
  • Communication level three point three volt TTL
  • Communication interfaces UART and I2C
  • Dimensions forty two by fifteen by sixteen millimeters
  • Weight approximately five grams



Comparison with Infrared Distance Sensors

The TFMini S is a LiDAR based distance sensor that offers a longer range higher accuracy and faster response compared to traditional infrared proximity sensors. Infrared sensors are better suited for short range applications while the TFMini S is ideal for long range and real time distance measurement projects.
