DC-DC Converter (USB) 0.9V-5V DC-DC Step-Up Module to USB 600mA

DC-DC Converter (USB) 0.9V-5V DC-DC Step-Up Module to USB 600mA

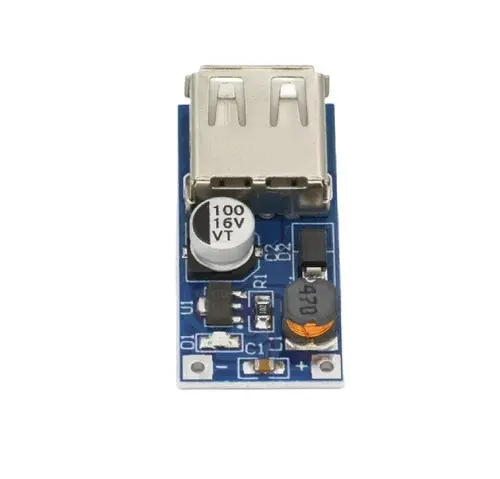

The HCMODU0018 is a compact DC to DC converter designed to boost input voltages from 0.9V to 5V DC up to a stable 5V DC output. It features a USB Type A socket and delivers up to 600mA output current, making it suitable for various low-voltage power supply applications.

Package Includes:

  • 1 x HCMODU0018 DC to DC Converter Module

14.95 AED 14.95 AED Tax Included
14.95 AED Tax Included

Not Available For Sale

This combination does not exist.

Boost Converter
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



Features and Specifications:

  • PFM control DC/DC boost technology
  • Input voltage: 0.9V – 5V DC
  • Output voltage: 5V DC
  • Output current: up to 600mA
  • USB Type A output socket
  • High-efficiency imported chip
  • Built-in LED indicator
  • Compact size: 34mm x 16.2mm
  • Single AA battery: 100–200mA output
  • Two AA batteries: 500–600mA output
  • Efficiency: up to 96%
  • Operating temperature: -40°C to +85°C

Important Note:

  • For maximum load, input voltage must be >2.5V
  • Without load, output voltage may momentarily exceed 5V
