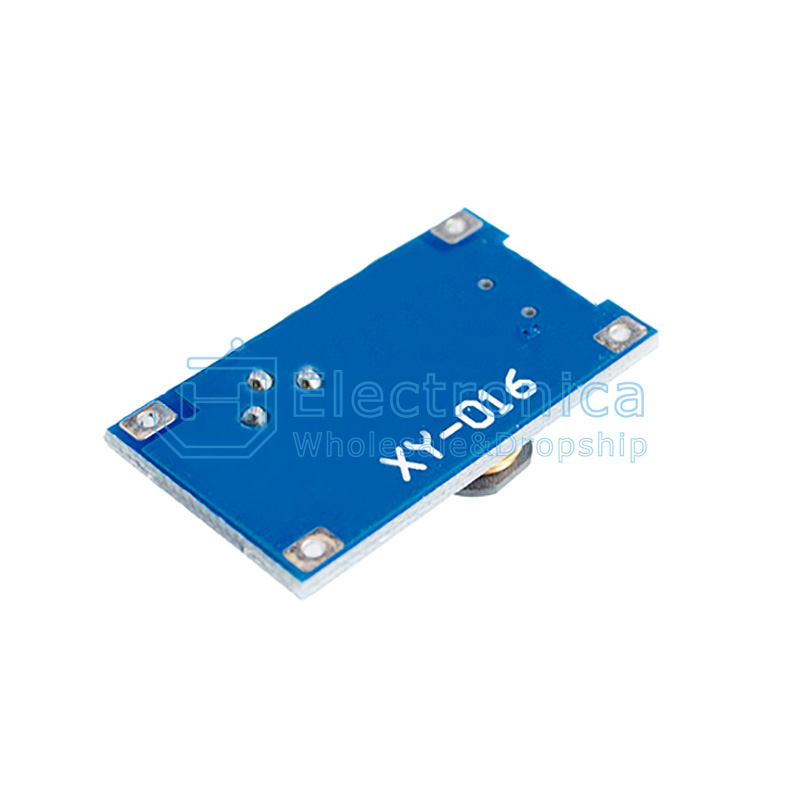

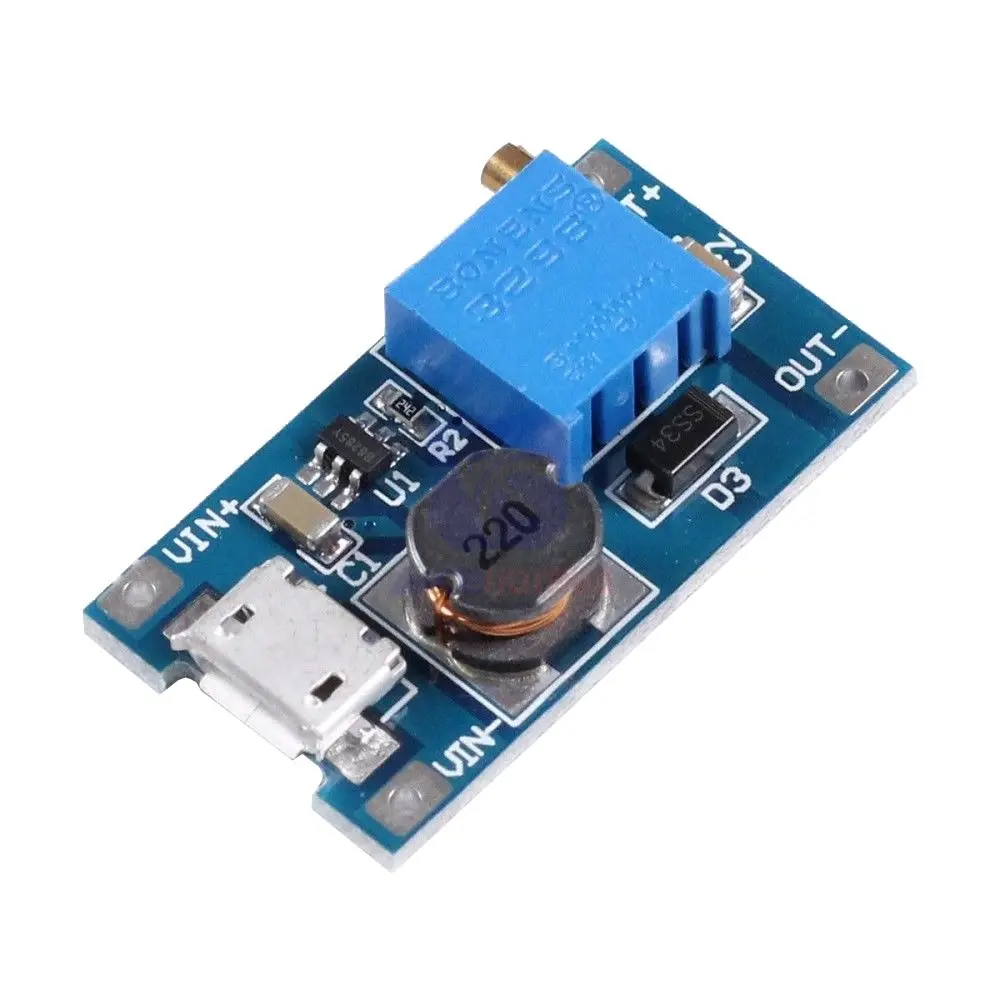

DC-DC Voltage Boost Converter With Micro USB MT3608

DC-DC Voltage Boost Converter With Micro USB MT3608

The MT3608 is a compact and efficient boost converter module designed to step up input voltages as low as 2V to output voltages up to 28V. It is ideal for applications requiring higher voltage from low-voltage sources. This module features a 25-turn trimpot for precise voltage adjustment and incorporates protections such as under-voltage lockout, current limiting, and thermal overload.

Package Includes:

  • 1 x MT3608 2A Step-Up (Boost) Converter Module with Micro USB

11.75 AED 11.75 AED Tax Included
11.75 AED Tax Included

Not Available For Sale

This combination does not exist.

Boost Converter
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



Features:

  • Wide Input Voltage Range: Operates from as low as 2V up to 24V.
  • High Output Voltage: Boosts output up to 28V to suit different application needs.
  • Efficient Operation: Automatically shifts to Pulse Frequency Modulation (PFM) mode at low loads for better energy efficiency.
  • Under-Voltage Lockout: Prevents operation when input voltage is too low.
  • Current Limiting: Protects against excessive current draw.
  • Thermal Overload Protection: Prevents damage from overheating.
  • Precision Voltage Adjustment: 25-turn potentiometer allows fine-tuning of output voltage.

Specifications:

  • Input Voltage: 2V – 24V
  • Maximum Output Voltage: 28V
  • Maximum Output Current: 2A
  • Adjustment: 25-turn potentiometer
  • Efficiency: Up to 93%
  • Switching Frequency: 1.2 MHz

Dimensions:

  • Length: 36 mm (1.42")
  • Width: 17 mm (0.67")
  • Height: 6.25 mm (0.25")
  • Weight: 4.4 g (0.155 oz)
