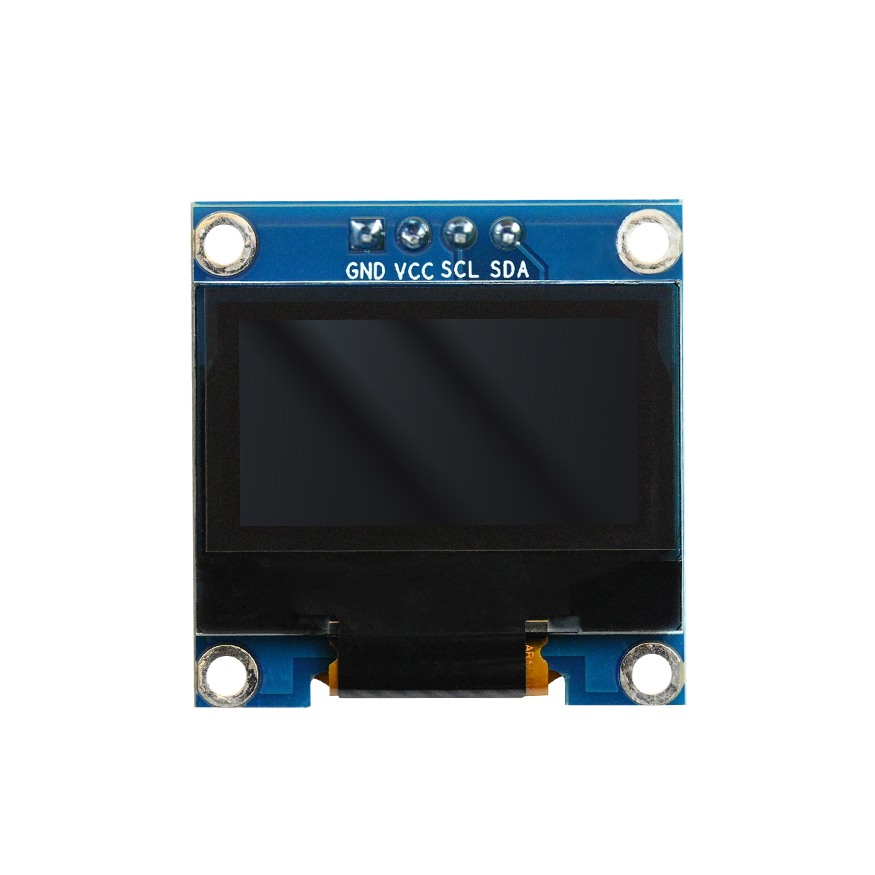

OLED 0.96 Inch 128x64 I2C SSD1306 Display Module White

OLED 0.96 Inch 128x64 I2C SSD1306 Display Module White

The OLED display module provides clear visual output with a size of 0.96 inch and a resolution of 128 by 64 pixels. It is easy to integrate and communicate using the I2C protocol, making it suitable for hobbyists and professionals.This OLED display module uses organic light emitting diode technology and includes the SSD1306 controller. It provides sharp text and graphics and supports scrolling and basic animation. The white display color offers good visibility and contrast. The module connects using the I2C interface which reduces wiring complexity.

Package Includes

  • 1 OLED 0.96 Inch 128x64 I2C SSD1306 Display Module White

OLED White
32.00 AED 32.00 AED (Tax included)

Add to cart
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days



Features

  • OLED display technology with high contrast and wide viewing angle
  • Display size of 0.96 inch with 128 by 64 resolution
  • I2C communication interface for simple wiring
  • SSD1306 driver controller
  • White color display output
  • Low power consumption
  • Compact size for space limited projects
  • Suitable for IoT wearable and embedded systems



Principle of Work

  1. The OLED pixels emit light individually when powered
  2. The SSD1306 controller manages pixel data and display refresh
  3. The microcontroller communicates with the display using I2C
  4. The display is initialized using configuration commands
  5. Pixel data is sent to display text and graphics
  6. The controller refreshes the screen continuously

Pin Description

  • Vin connect to 5V
  • GND connect to ground
  • SCL connect to I2C clock pin
  • SDA connect to I2C data pin

Arduino Connections

Arduino Uno

  • Vin to 5V
  • GND to GND
  • SCL to A5
  • SDA to A4

Arduino Mega

  • SDA to pin 20
  • SCL to pin 21

Arduino Leonardo

  • SDA to pin 20
  • SCL to pin 21

Applications

  • Wearable electronics
  • IoT devices
  • DIY and prototyping projects
  • Embedded control panels
  • Educational projects
  • Measurement instruments
  • Consumer electronics

Library Installation

Install Adafruit GFX and Adafruit SSD1306 libraries using the Arduino Library Manager.

I2C Scanner Code

#include "Wire.h"
void setup() {
 Wire.begin();
 Serial.begin(9600);
 while (!Serial);
 Serial.println("I2C Scanner");
}
void loop() {
 byte error, address;
 int deviceCount = 0;
 for (address = 1; address < 127; address++) {
 Wire.beginTransmission(address);
 error = Wire.endTransmission();
 if (error == 0) {
 Serial.print("Device found at address ");
 Serial.println(address, HEX);
 deviceCount++;
 }
 }
 delay(5000);
}

Sample Arduino Code

#include "Wire.h"
#include "Adafruit_GFX.h"
#include "Adafruit_SSD1306.h"
#define OLED_ADDR 0x3C
Adafruit_SSD1306 display(128, 64, &Wire, -1);
void setup() {
 Wire.begin();
 display.begin(SSD1306_SWITCHCAPVCC, OLED_ADDR);
 display.clearDisplay();
 display.setTextSize(1);
 display.setCursor(0, 0);
 display.println("Hello World");
 display.display();
}
void loop() {
}

Technical Details

  • Display type OLED
  • Resolution 128 by 64
  • Operating voltage 3.3V to 5V
  • Maximum current 20mA
  • Viewing angle 160 degrees
  • Interface I2C

Comparison

I2C version uses two wires and fewer pins but is slower. SPI version uses more pins but provides faster data transfer.
