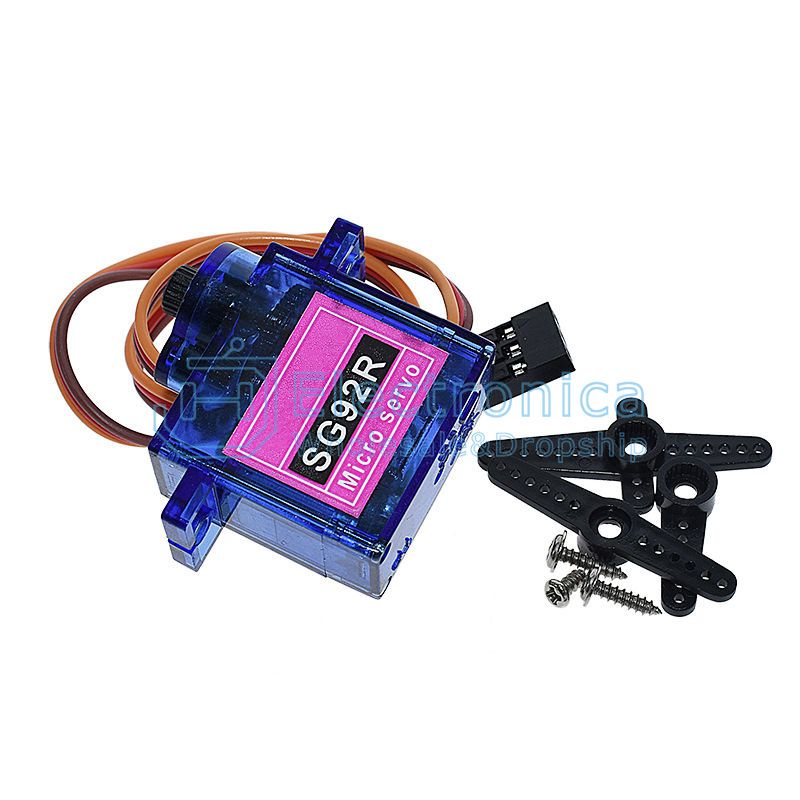

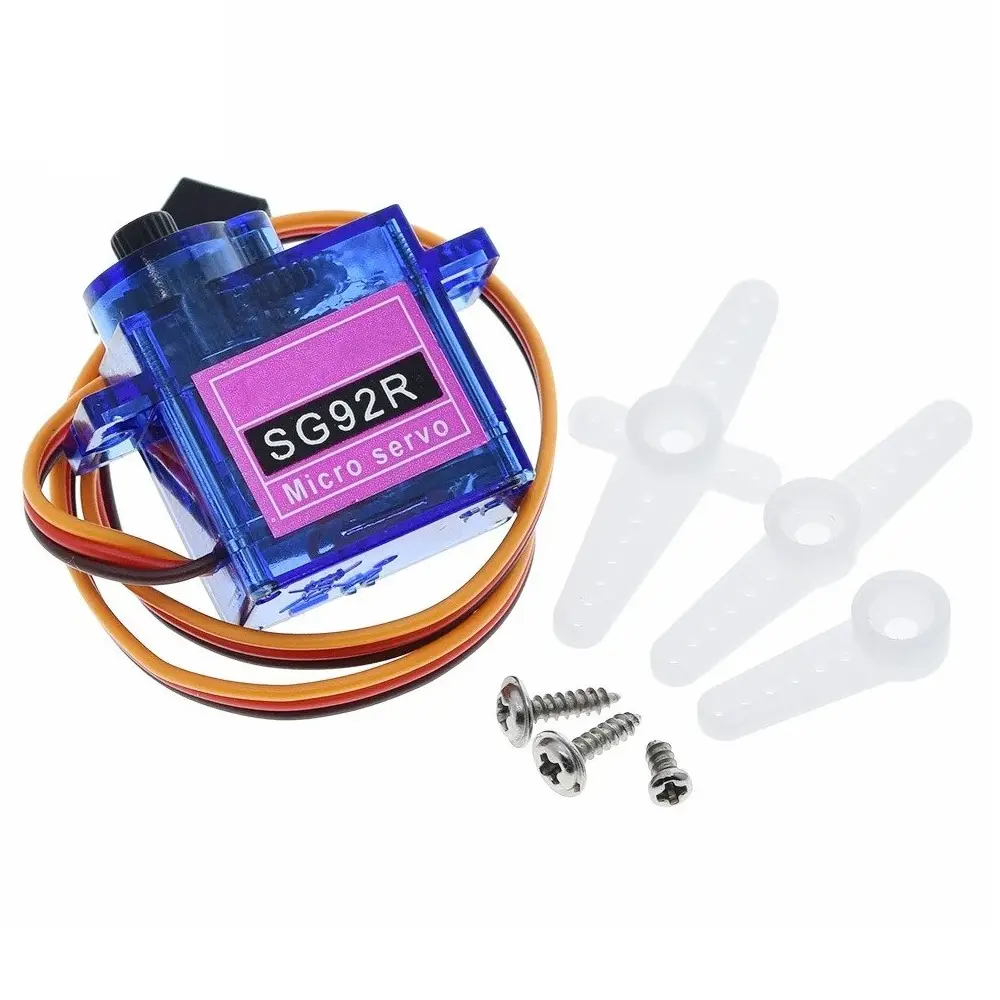

Servo SG92R Micro Digital 9g

Servo SG92R Micro Digital 9g

The SG92R is an upgraded version of the popular SG90 micro servo, featuring carbon fiber gears for improved durability and reliability. Its lightweight design and precision make it ideal for use in RC aircraft, helicopters, cars, robots, and a wide range of DIY projects.

Package Includes

  • 1 × Micro Servo SG92R TowerPro
  • 1 × Set of propellers and accessories
  • 1 × Set of mounting screws

30.45 AED 30.45 AED Tax Included
30.45 AED Tax Included

Not Available For Sale

This combination does not exist.

Small Servo
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



Features

  • Carbon Fiber Gears: Improved strength and wear resistance over traditional plastic gears.
  • Lightweight Design: Weighs only 9g, ideal for compact and weight-sensitive projects.
  • Versatile Applications: Suitable for RC aircraft, helicopters, cars, robots, and more.
  • High Reliability: Offers precise and consistent performance in demanding applications.

Specifications

  • Model: SG92R Micro Servo
  • Operating Voltage: 4.8V DC
  • Torque: 2.5 kg/cm @ 4.8V
  • Gears: Carbon fiber
  • Speed: 0.1 sec/60° @ 4.8V
  • Operating Temperature: 0°C to 55°C
  • Cable Length: Approx. 25cm
  • Connector: JR Standard (compatible with JR and Futaba)
  • Weight: 9g
  • Dimensions: 27 × 23 × 12.2 mm

Product Dimensions Diagram

SG92R Dimensions Diagram

Parameter Value
Weight (g) 12
Torque (kg·cm @ 4.8V) 2.5
Speed (sec/60°) 0.1
A (mm) 34.5
B (mm) 22.8
C (mm) 26.7
D (mm) 12.6
E (mm) 32.5
F (mm) 16





Features

  • LoRa SX1276 Wireless Module: Built around the SX1276 chip, the module employs LoRa technology, allowing for long-range data transmission and excellent penetration capabilities.
  • Configurable Output Power: The module's output power can be adjusted from +13 to +20 dBm (up to 100 mW) through software settings, providing flexibility in balancing communication distance and power consumption.
  • Low Power Consumption: During transmission, power consumption ranges from 50mA (+13 dBm) to 150mA (+20dBm), while in listening mode, it requires approximately 30mA, making it energy-efficient for battery-operated applications.
  • AES-128 Encryption Support: The module offers AES-128 encryption, ensuring secure and private data transmission, making it suitable for applications that require data confidentiality.
  • Multipoint Network Capabilities: It supports multipoint networks, allowing the establishment of individual nodes within the network for seamless and efficient communication.
  • Wide Power Supply Range: The module can be powered with a voltage range from 3V to 5V, making it compatible with various power sources and microcontrollers.

NOTE: It is important to solder a 16cm length of cable to the antenna pin before using it since not connecting any antenna can damage it. Optionally, the board has pads to solder an SMA connector with antenna thread.

Specifications

  • LoRa SX1276 wireless module with SPI interface (900 MHz)
  • Output power: +13 to +20 dBm up to 100 mW configurable by software
  • Consumption: 50mA (+13 dBm) to 150mA (+20dBm) in transmission, approx 30mA in listening
  • Supports AES-128 encryption
  • Supports multipoint networks with individual nodes
  • Power: 3 to 5V
