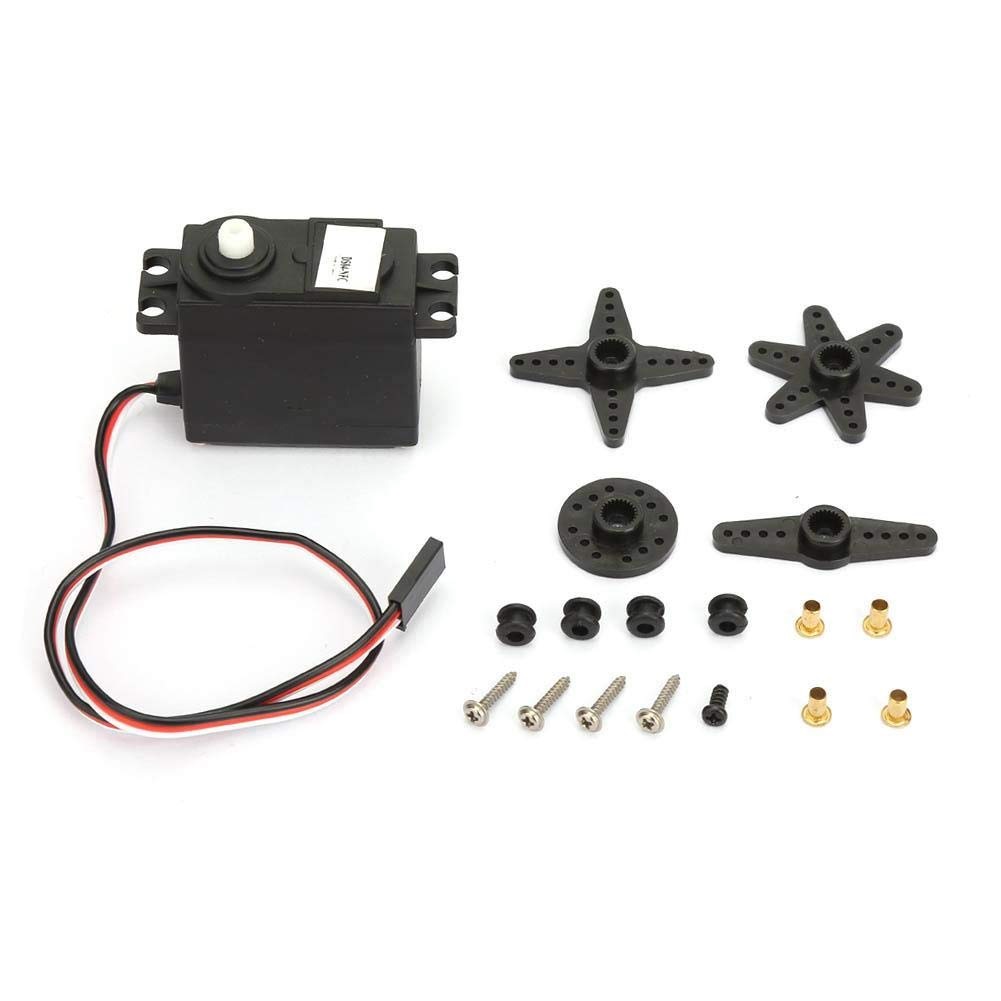

Servo DS04-NFC 360 Degree Continuous Rotation

Features:

• 360° Continuous Rotation: Rotates continuously in both clockwise and counterclockwise directions.
• Compact Design: Measures 40.8 x 20 x 39.5 mm, ideal for tight spaces.
• Lightweight: Weighs only 38g, suitable for applications with weight constraints.
• High Torque: Delivers 5.5kg/cm torque at 4.8V.
• Fast Speed: 0.22 seconds per 60° at 4.8V, enabling quick, accurate movement.
• Wide Voltage Range: Operates from 4.8V to 6V.
• Energy Efficient: Consumes less than 1000mA current.
• Wide Temperature Range: Operates from 0°C to 60°C.

Specifications:

• Model: DS04-NFC
• Weight: 38g
• Dimensions: 40.8 x 20 x 39.5 mm
• Torque: 5.5kg/cm (at 4.8V)
• Speed: 0.22 sec/60° (at 4.8V)
• Operating Voltage: 4.8V–6V
• Operating Temperature: 0°C–60°C
• Current Consumption: <1000mA

Applications:

• Model Aircraft
• Model Cars
• Model Robots

Arduino Usage Example:

Below is a simple example code that allows you to control the continuous rotation servo motor using serial commands:

#include "Servo.h"

Servo myservo; // create servo object
int incomingByte = 0; // for incoming serial data

void setup() {
  Serial.begin(9600);
  myservo.attach(9); // servo connected to pin 9
}

void loop() {
  if (Serial.available() > 0) {
    incomingByte = Serial.read();
    Serial.print("received: ");
    Serial.print(incomingByte);

    if(incomingByte == 108){         // 'l'
      Serial.println(" sent 0 Rotating CW ");
      myservo.write(0);
    } else if(incomingByte == 114){  // 'r'
      Serial.println(" sent 180 Rotating CCW ");
      myservo.write(180);
    } else if(incomingByte == 60){   // '<'
      Serial.println(" sent Stopped ");
      myservo.write(90);
    } else {
      Serial.println(" moving Random");
      myservo.write(incomingByte);
    }
  }
}
