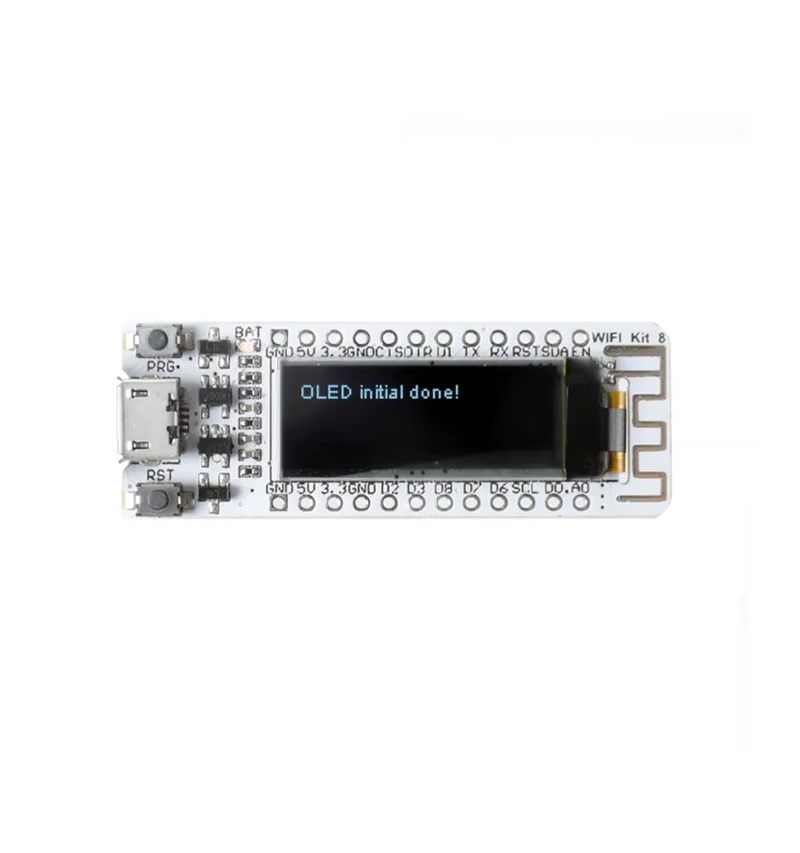

ESP8266 WIFI Kit 8 Development Board with 0.96 Blue OLED

ESP8266 WIFI Kit 8 Development Board with 0.96 Blue OLED

WIFI Kit 8 is a compact networking development board based on the ESP8266 microcontroller. It integrates USB to serial communication, onboard OLED display, WiFi antenna, and power management circuits. The board is suitable for IoT development and supports programming using Arduino IDE and NodeMCU environments. Its operation and pin layout are compatible with NodeMCU, making it easy to use for learning and prototyping.

Package Includes

  • 1 x WIFI Kit 8 ESP8266 development board with OLED display

Wemos ESP8266 with Screen
51.45 AED 51.45 AED (Tax included)

Add to cart
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Features

  • ESP8266 WiFi microcontroller
  • Integrated 0.91 inch OLED display
  • USB to serial converter for easy programming
  • Supports Arduino and NodeMCU environments
  • Multiple WiFi operating modes
  • All ESP8266 pins are accessible

Specifications

  • Main chip ESP8266
  • Flash memory 32 MByte
  • OLED display size 0.91 inch
  • OLED resolution 128 x 32
  • USB to serial chip CP2102
  • WiFi modes softAP station softAP plus station WiFi Direct
  • Operating temperature minus 40 to 90 Celsius
  • Output power 19.5 dBm at 11b 16.5 dBm at 11g 15.5 dBm

Pin Description

  • GND Common ground
  • 5V Power supply input 5V up to 500mA
  • 3.3V Power supply input or output max 200mA
  • ADC Analog input range 0 to 3.2V
  • GPIO pins support digital I O I2C SPI PWM and interrupt functions

Power Notes

  • Power can be supplied via USB 5V input or external 3.3V supply
  • OLED display consumes approximately 30mA
  • Onboard voltage regulator provides limited current for external devices
  • Board is not recommended for battery operation
  • Idle current consumption is approximately 7mA

Programming

  • Compatible with Arduino IDE
  • Compatible with NodeMCU firmware
  • Uses SSD1306 and GFX libraries for OLED programming
  • Automatic reset circuit similar to NodeMCU boards

Applications

  • IoT projects
  • Wireless sensor nodes
  • Home automation
  • Educational and learning projects
