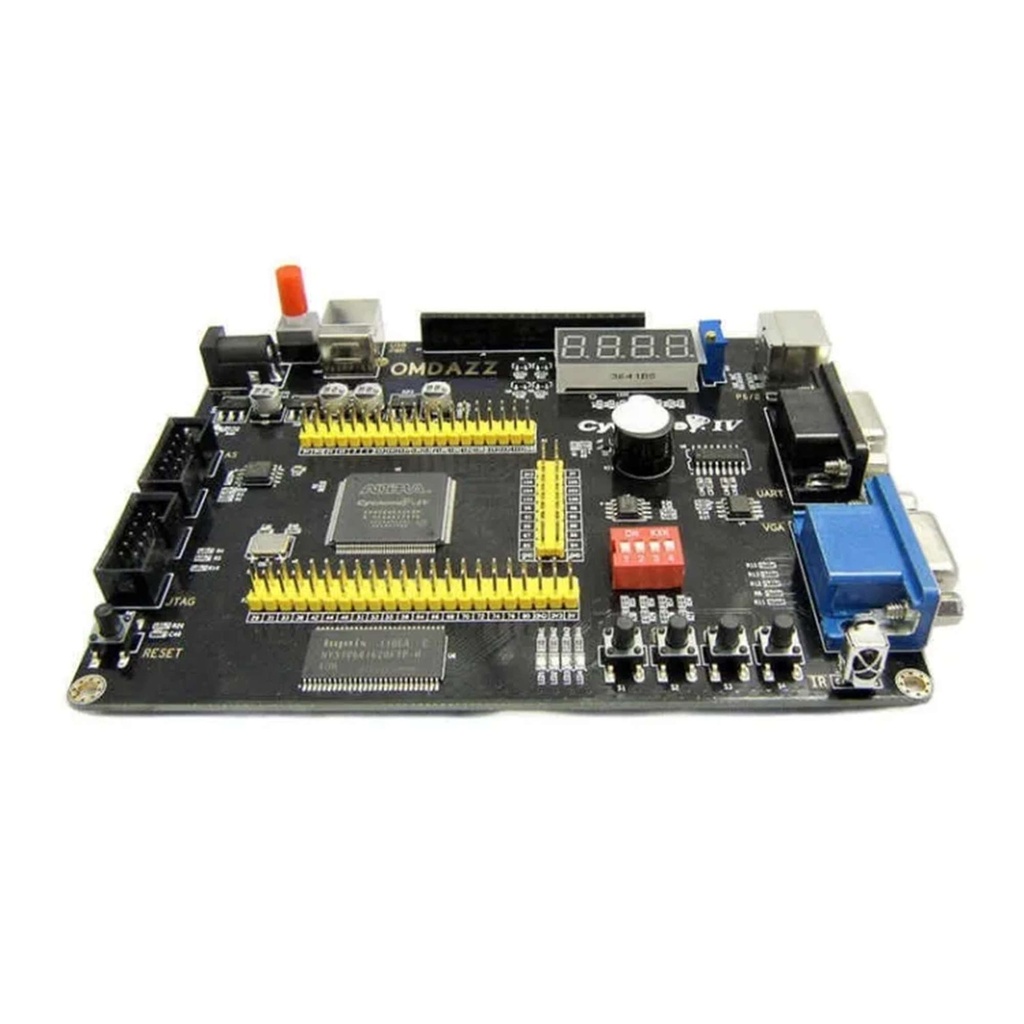

FPGA Altera Cyclone IV EP4CE Development Board

FPGA Altera Cyclone IV EP4CE Development Board

Altera Cyclone IV FPGA devices extend the Cyclone FPGA family by offering low cost and low power solutions, including variants with built in transceivers. These devices are designed for high volume and cost sensitive applications, allowing system designers to meet higher bandwidth requirements while reducing overall system cost.

Package Includes

  • 1 x Cyclone IV FPGA Development Board EP4CE6E22C8N

408.45 AED 408.45 AED (Tax included)

Add to cart
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days



The Cyclone IV family is built on an optimized low power process and includes two main variants. Cyclone IV E focuses on low power and high functionality at the lowest cost. Cyclone IV GX provides low power and low cost FPGA solutions with integrated 3.125 Gbps transceivers. Cyclone IV E devices operate with core voltages of 1.0V and 1.2V.

This development board is based on the Altera Cyclone IV FPGA EP4CE6E22C8N. It includes an onboard high capacity EPCS16N serial configuration memory and supports both JTAG and AS download modes. The board also integrates 64Mbit SDRAM and supports SOPC and NIOS II development.

Features

  • FPGA model EP4CE6E22C8N from Altera Cyclone IV series
  • Onboard EPCS16N serial configuration memory
  • Supports JTAG and AS programming modes
  • Onboard 64Mbit SDRAM for system development
  • 50MHz active crystal oscillator for stable system clock
  • Multiple voltage regulators providing 3.3V 2.5V and 1.2V supplies
  • Extensive decoupling capacitors for stable power delivery
  • Supports both DC power input and USB power supply
  • Reset button usable as user input
  • Self locking power switch
  • Power indicator LED
  • All IO pins broken out with 2.54mm spacing for easy expansion

Programming Interfaces

  • JTAG interface using SOF file format recommended for fast programming
  • AS interface using POF file format for permanent configuration

Onboard Peripherals

  • 4 independent push buttons
  • 4 LED indicators
  • 4 digit digital display
  • 4 position DIP switch
  • Buzzer
  • PS2 interface
  • RS232 serial port
  • LCD interface supporting LCD1602 LCD12864 and TFT LCD
  • LM754A temperature sensor
  • Adjustable potentiometer for LCD backlight control
  • VGA interface for display experiments
  • I2C EEPROM AT24C08
  • Infrared receiver module

FPGA Specifications

  • FPGA family Cyclone IV
  • Logic elements 6272
  • Maximum IO pins 91
  • RAM bits 276480
  • Typical operating voltage 1.2V
  • Operating voltage range 1.16V to 1.24V
  • Operating temperature range 0C to 85C
  • Commercial temperature grade
  • Package type EQFP
  • Pin count 144
  • Surface mount package
  • EU RoHS compliant
  • China RoHS compliant
