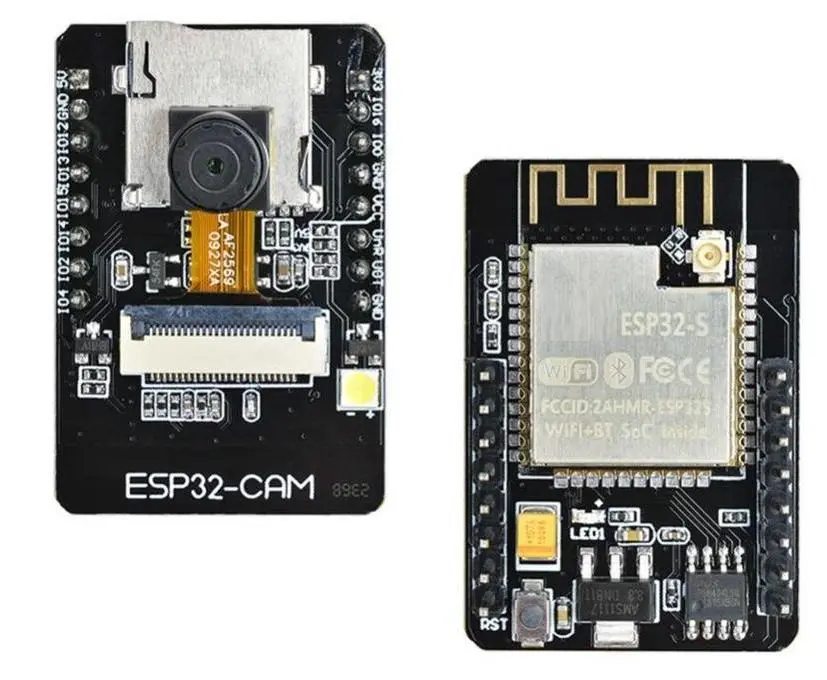

ESP32 With CAM

The ESP32-CAM is a compact development board based on the powerful ESP32 chip. It supports both Wi-Fi and Bluetooth connectivity and features a built-in OV2640 camera, making it ideal for a wide range of IoT and video streaming projects. This board is perfect for applications like home automation, wireless monitoring, industrial control, QR code recognition, and other IoT scenarios. With its microSD card slot and multiple GPIOs, you can connect various peripherals and expand your project possibilities.

Package Includes:

1 x ESP32-CAM Module
1 x OV2640 Camera Module

45.00 AED (Tax included)

Add to cart

Add to wishlist

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Specifications of the Module:

Product model: HW-818
Working voltage: DC 5V
Product size: 27mm x 48.5mm x 4.5mm / 1.06” x 1.9” x 0.17”
SPI Flash: Default 32Mbit
RAM: Internal 520KB + External 4MB PSRAM
Bluetooth: Version 4.2 BR/EDR and BLE
Wi-Fi: 802.11 b/g/n/e/i
Supported interfaces: UART, SPI, I2C, PWM
TF Card support: Up to 4GB
IO ports: 9
Serial port rate: Default 115200 bps
Image output format: JPEG (OV2640 only), BMP, Grayscale
Frequency range: 2412–2484 MHz
Antenna: Onboard PCB antenna, 2 dBi gain
Transmission power:
- 802.11b: 17 ± 2 dBm (11 Mbps)
- 802.11g: 14 ± 2 dBm (54 Mbps)
- 802.11n: 13 ± 2 dBm (MCS7)

Camera Specifications (OV2640):

2 Megapixel sensor
Array size: UXGA 1622 × 1200
Output formats: YUV422, YUV420, RGB565, RGB555, 8-bit compressed
Image transfer rate: 15 to 60 fps

Note:

To program the ESP32-CAM, you must first connect it to an FTDI adapter. Use GPIO 1 (TxD) and GPIO 3 (RxD) for UART. Make sure to cross-connect Rx and Tx between the board and the FTDI adapter.

Pinout of the Module:

ESP32-CAM Pinout

Hardware Overview:

ESP32-CAM Hardware Overview
