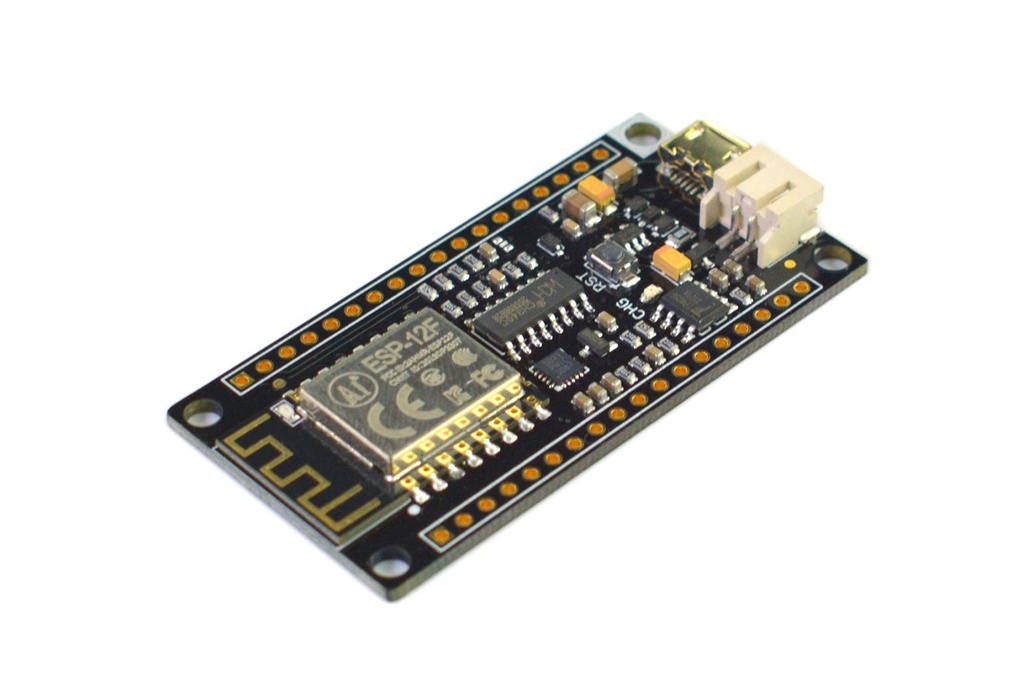

FireBeetle ESP8266 IOT Microcontroller (Supports Wi-Fi)

The DFRobot FireBeetle ESP8266 is a low power development board designed for Internet of Things applications. It integrates WiFi connectivity, a TCP IP protocol stack, and a 32 bit microcontroller in a compact and efficient design. The board is optimized for stable wireless communication and reduced power consumption, making it suitable for battery powered and embedded IoT projects. It is fully compatible with Arduino programming for simplified development.

Package Includes

FireBeetle ESP8266 Development Board x1
Micro USB Cable x1

78.75 AED (Tax included)

Add to cart

Add to wishlist

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Features

Low power IoT development board
Integrated WiFi and TCP IP protocol stack
32 bit microcontroller based on Tensilica L106
10 bit analog to digital converter
Supports SPI UART PWM I2C and I2S interfaces
External SPI flash memory for firmware storage
Compatible with Arduino IDE
Designed for stable and reliable wireless applications

Specifications

Operating Voltage 3.3V
Input Voltage Range 3.3V to 5V
Microcontroller Tensilica L106 32 bit
Clock Frequency 80MHz up to 160MHz
SRAM 50KB
External Flash Memory 16MB
Low Power Sleep Current 46 microampere
Average Operating Current 80mA
Digital Input Output Pins 10
Analog Input Pins 1
WiFi Standard IEEE 802.11 b g n 2.4GHz
Operating Temperature minus 10 to plus 55 degrees Celsius
Board Dimensions 58 x 29 millimeter
Board Weight 24 gram
