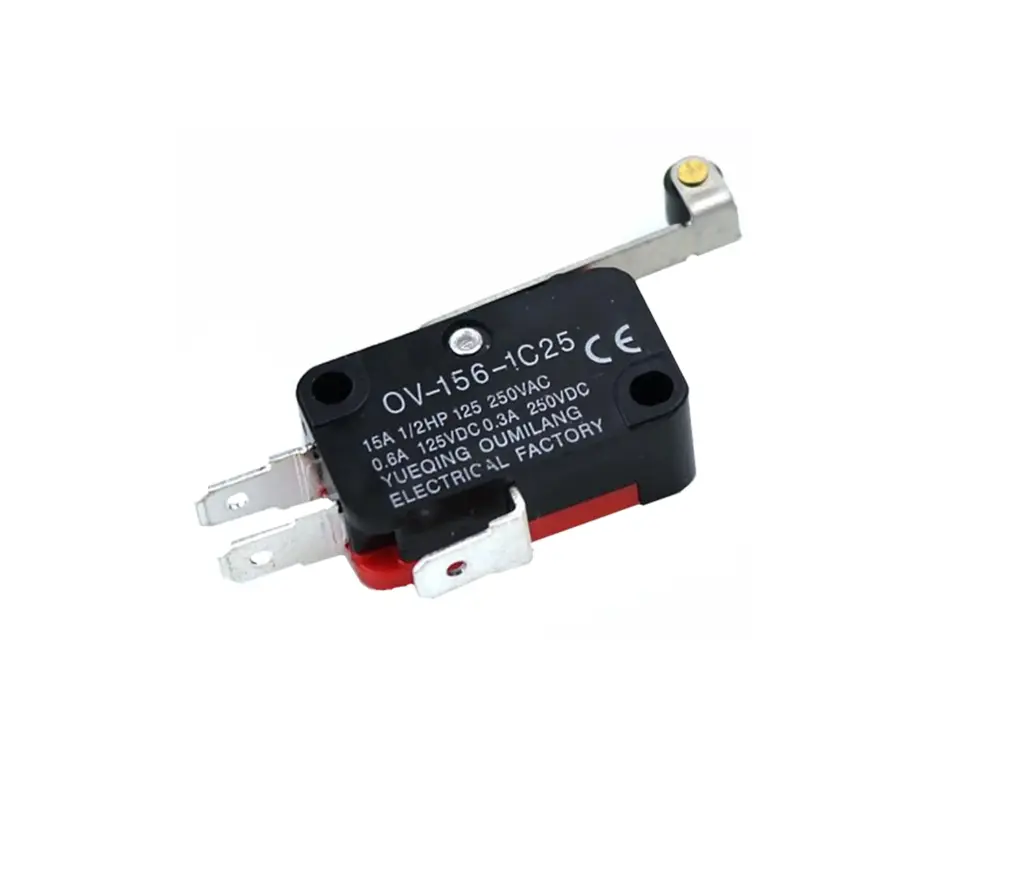

Switch Push Button SPDT Momentary Limit switch V-156-1C25 15A

Switch Push Button SPDT Momentary Limit switch V-156-1C25 15A

Compact and reliable micro switch for AC/DC control circuits. Ideal for mechanical control and industrial applications.

Package Includes:

  • 1 x V-156-1C25 SPDT Micro Switch

14.00 AED 14.00 AED Tax Included
14.00 AED Tax Included

Not Available For Sale

This combination does not exist.

Limit switch
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



Features:

  • Rated for 15A, 1/2HP at 125/250VAC; 0.6A at 125VDC; 0.3A at 250VDC
  • SPDT (Single Pole, Double Throw) contact configuration
  • Durable plastic and metal construction
  • Precision mechanism for accurate switching and long life

Specifications:

  • Model: V-156-1C25
  • Rating: 15A, 1/2HP, 125/250VAC; 0.6A, 125VDC; 0.3A, 250VDC
  • Contact: SPDT
  • Switch Body Size: Approx. 2.8cm x 1cm x 1.6cm
  • Fixing Hole Diameter: Approx. 0.32cm
  • Button Height: Approx. 0.3cm
  • Actuator Size: Approx. 2.8cm x 0.45cm
  • Terminal Blade Width: Approx. 0.47cm
  • Material: Plastic & Metal
  • Terminals: 3 terminals (AC/DC compatible)
