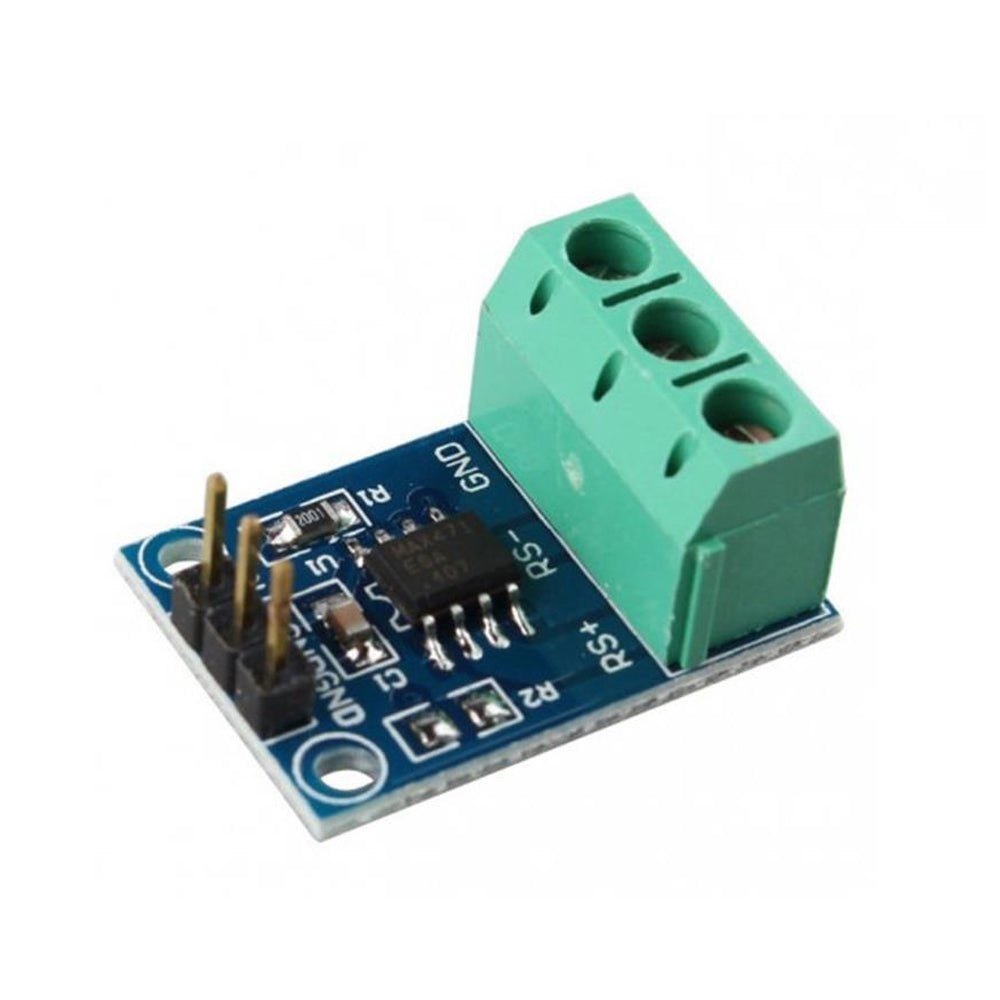

Current Sensor Module MAX471 DC Blue

Current Sensor Module MAX471 DC Blue

The MAX471 sensor is a precise high side current sensing solution designed for monitoring both charge and discharge currents in DC power systems. This module integrates a precision internal sense resistor and current sense amplifier, enabling accurate current measurement up to 3A using the internal resistor of the MAX471 or higher currents when used with an external sense resistor in the MAX472 variant. It is suitable for energy management, battery powered systems, and embedded applications requiring reliable bidirectional current monitoring.

Package Includes

  • 1 x MAX471 DC current sensor module
Current and Voltage Sensor
15.75 AED 15.75 AED (Tax included)

Add to cart
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days



Features

  • Charge and Discharge Monitoring: Supports bidirectional current measurement, allowing detection of both charging and discharging currents.
  • High Side Current Sensing: Measures current on the high side of the load without interrupting the ground path.
  • Integrated Precision Shunt: Built in 35 milliohm internal sense resistor for accurate current measurement.
  • Wide Operating Voltage: Supports current sensing across a supply voltage range from 3V to 36V.
  • Flexible Current Range: Measures up to 3A using the internal shunt resistor, with support for higher currents using external resistors on MAX472.
  • Microcontroller Friendly Interface: Provides analog voltage output compatible with standard microcontroller ADC inputs.
  • Positive Voltage Output: Output voltage remains positive regardless of current direction.
  • Low Power Consumption: Suitable for battery powered and low power designs.



Principle of Work

The MAX471 and MAX472 are bidirectional high side current sense amplifiers designed to measure current flow without disturbing ground connections. The internal shunt resistor generates a voltage proportional to the load current, which is amplified and converted into a proportional output signal. An open collector SIGN output indicates the direction of current flow, allowing differentiation between charging and discharging conditions. The devices operate with supply currents below 100 microampere and feature a shutdown mode with extremely low current consumption.

Input Connections

  • INPUT plus RS plus: Connects to the positive terminal of the power supply or load source.
  • INPUT minus RS minus: Connects to the positive terminal of the load.
  • GND: Common ground reference connected to the system ground.

Output Connections

  • OUT: Analog voltage output proportional to the sensed current with a scale of 1 volt per ampere.
  • GND: Ground reference for the output signal.

Applications

  1. Battery charge and discharge monitoring
  2. Power management and distribution systems
  3. Motor control and automation
  4. Overcurrent detection and protection
  5. Battery chargers and solar charge controllers
  6. IoT and smart electronic devices
  7. Adjustable power supplies
  8. Energy monitoring systems
  9. DIY and educational electronics projects
  10. Automotive electrical systems
  11. Solar power systems
  12. Home automation power monitoring

Circuit Notes

  • Signal Reading A0: The OUT pin connects to an analog input for current measurement.
  • Current Direction SIGN: Open collector output indicating current flow direction.
  • Direction Detection: A pull up resistor allows digital reading of the SIGN pin state.

Technical Details

  • Maximum sensing current: plus or minus 3A
  • Supply current: up to 100 microampere
  • Shutdown current: up to 18 microampere
  • Current sense voltage range: 3V to 36V
  • Output sensitivity: 1V per ampere
  • Internal shunt resistor: 35 milliohm
  • Module dimensions: approximately 24.3 mm by 17 mm
