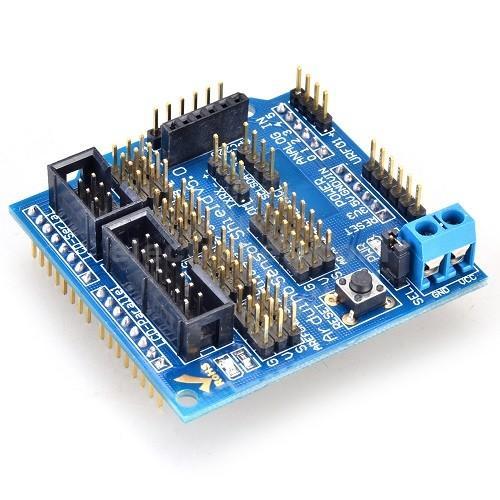

Expansion V5 Sensor Shield Board For Arduino UNO R3

Expansion V5 Sensor Shield Board For Arduino UNO R3

The Sensor Shield Expansion Board V5.0 is a versatile and beginner friendly expansion module designed for Arduino UNO R3 and compatible boards. It simplifies sensor and module connections by exposing all Arduino I O pins through clearly labeled interfaces, making rapid prototyping and educational projects easier and more organized.

Package Includes

  • 1 x Sensor Shield Expansion Board V5.0
Expansion for Uno
19.95 AED 19.95 AED (Tax included)

Add to cart
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days



Features

  1. The Sensor Shield V5.0 is specifically designed for the Arduino UNO R3 control board and compatible controllers.
  2. The board uses a stacked design that brings out all I O ports of the UNO R3 main board and includes onboard LEDs, a reset button, and an external power interface.
  3. Dedicated interfaces are provided for common modules such as Bluetooth, making integration simple and convenient for beginners.
  4. The expansion board offers good scalability, compatibility, and ease of use, reducing complexity for new Arduino users.
  5. Common sensors can be connected easily using standard 3 pin sensor cables without requiring separate digital or analog wiring.
  6. After completing the hardware connections, Arduino sketches can be uploaded to read sensor data or exchange data with wireless modules to complete interactive projects.



Pin Description

  1. I O Ports
    • 14 digital pins, including 6 PWM capable pins
    • 8 analog input pins
  2. Board Indicators and Controls
    • Red LED for power indication
    • Yellow LED connected to digital pin D13
    • Reset button for controller reset
    • External 5V power supply port

Interface

  • I2C communication interface
  • Actuator controller interface
  • Bluetooth module communication interface
  • SD card module communication interface
  • APC220 radio frequency module interface
  • Ultrasonic sensor interface
  • 12864 LCD serial and parallel interface
