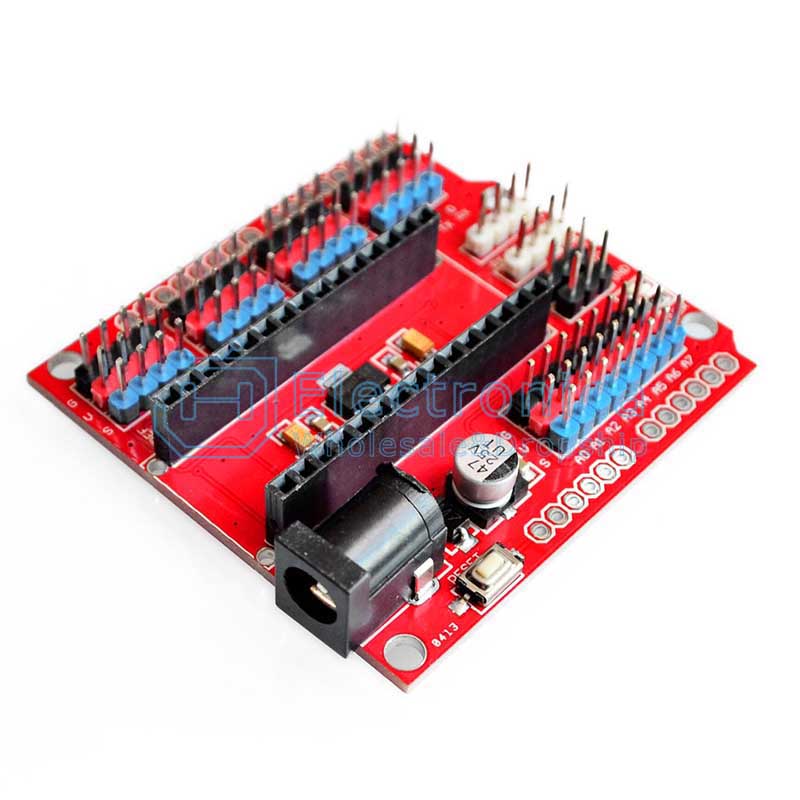

Expansion Sensor Shield Module For Arduino Nano (Red)

Expansion Sensor Shield Module For Arduino Nano (Red)

The IO Expansion Shield for Arduino Nano is ingeniously designed to simplify and enhance the connectivity of your Nano board. Serving as a powerful intermediary between the Nano and external devices, this expansion shield enables effortless interfacing with servos, sensors, and other modules. Compatible with both Nano v2.x and v3.x, it is an essential tool for anyone building advanced Arduino-based projects.

Package Includes:

  • 1 x IO Expansion Shield for Arduino Nano

19.95 AED 19.95 AED Tax Included
19.95 AED Tax Included

Not Available For Sale

This combination does not exist.

Expansion for Nano
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



Features:

  • 14 I/O Pins (Servo Style): Each pin includes GND, power, and signal for easy servo or module connections.
  • 8 Analog Input Pins: Each analog pin is paired with a power output and ground for simple sensor connections.
  • 6 PWM Output Pins: Supports PWM control for motors, LEDs, and more.
  • 1 Dedicated Servo Power Input: Enables external power supply specifically for servo motors.
  • 5 I2C Expansion Pins: Offers easy connectivity for I2C-compatible devices and sensors.
  • AREF Output: Provides Analog Reference voltage output for accurate analog input readings.
  • 3.3V Output: Supplies 3.3V power for low-voltage devices.

Specifications:

  • Compatibility: Arduino Nano v2.x and v3.x
  • Dimensions: Approx. 57.8mm x 53.5mm
  • Material: High-quality, durable PCB

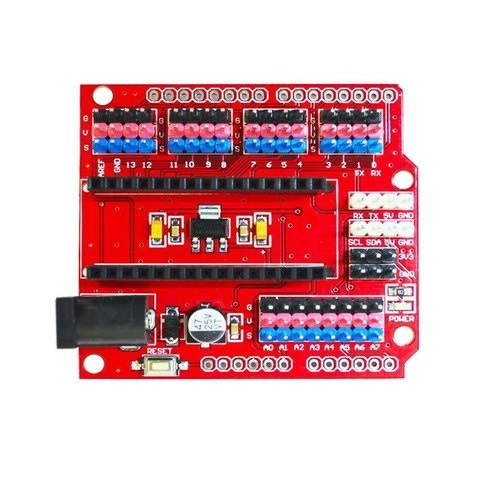

What’s on the Board:

  • Servo-compatible pins with GND, VCC, and signal
  • Analog pins with dedicated power and ground
  • PWM outputs for motor or light dimming control
  • Dedicated servo motor power input
  • 5-pin I2C breakout area
  • AREF output for analog reference voltage
  • 3.3V regulated output
