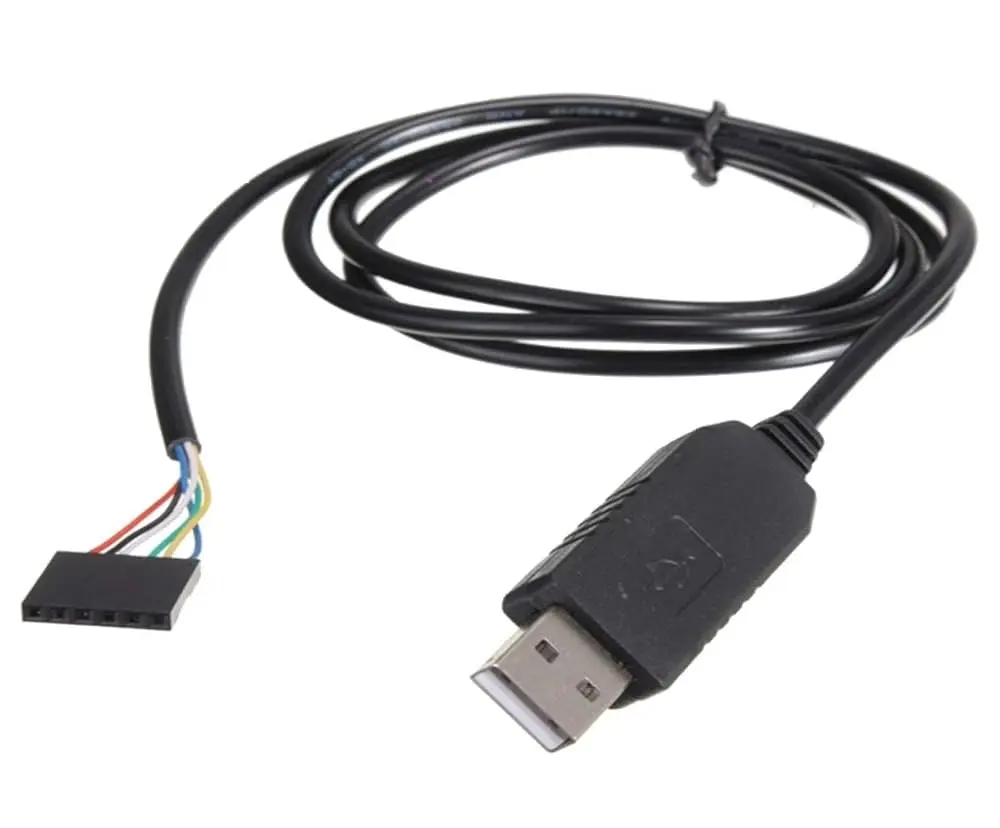

USB to TTL Adapter Module 6Pin FTDI FT232RL
This FTDI-based USB to TTL Serial Cable offers a reliable and efficient solution for serial communication between USB-enabled devices and those using TTL-level signals. Built with the high-performance FT232RL chipset, it provides robust signal integrity, diverse connector options, and compliance with major standards, making it ideal for embedded development, microcontroller interfacing, and debugging applications.
Package Includes:
- 1 x FTDI-based USB to TTL Serial Cable (1.0m)
Features:
- Utilizes the FT232RL USB to Serial UART interface IC for dependable USB signaling and protocol handling.
- Features a 6-way SIL, 0.1" pitch connector for versatile device compatibility.
- Operates at TTL logic level of 3.3V, suitable for various microcontroller-based projects.
- Internal circuit encapsulated within the USB connector for compact and durable design.
- Meets FCC, CE, and RoHS compliance standards for environmental and safety assurance.
- Supports multiple connector types: 6-way SIL, 3.5mm Audio Jack, 8-way keyed 2mm connector (compatible with VMUSIC2 and VDRIVE2), and bare, tinned wire ends.
- USB-powered and supports USB 2.0 full-speed (12 Mbps).
- Cable length: 1.0 meter, allowing ample flexibility in setup.
- High-speed data transfer rate up to 3 Mbaud.
Specifications:
- Chipset: FT232RL
- TTL Level: 3.3V
- Cable Length: 1.0 meter
- Data Transfer Rate: Up to 3 Mbaud
- Connector Options:
- 6-way SIL, 0.1" pitch
- 3.5mm Audio Jack
- 8-way keyed 2mm pitch (VMUSIC2/VDRIVE2 compatible)
- Bare, tinned wire-ended connections
Pinout:
- Red: 5V
- Black: GND
- White: RXD
- Green: TXD
- Yellow: RTS
- Blue: CTS
