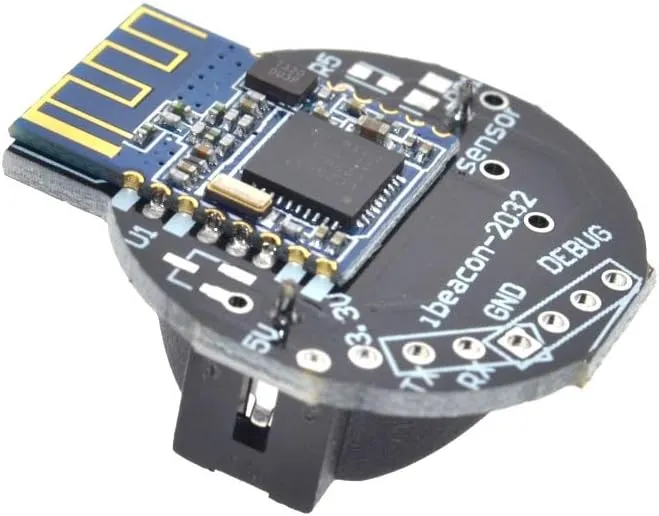

Bluetooth 4.0 WAVGAT iBeacon Module BLE

Bluetooth 4.0 WAVGAT iBeacon Module BLE

This iBeacon module operates on Bluetooth 4.0 BLE technology and is compatible with Apple iOS 7.0 and above as well as Android 4.3 and above. It supports both Central and Peripheral roles and allows full customization of iBeacon parameters such as UUID, Major, Minor, and transmission power through AT commands. The module is optimized for low power consumption and long battery life, making it suitable for battery powered deployments. It supports broadcast based data such as battery level and sensor readings without requiring an active connection.

Package Includes

  • 1 x iBeacon Bluetooth 4.0 BLE Module
  • Battery not included
Bluetoothe Beacon
72.45 AED 72.45 AED (Tax included)

Add to cart
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days





Features

  • Bluetooth 4.0 BLE compliant
  • Based on TI CC2541 chipset
  • Supports iBeacon protocol
  • Customizable UUID Major and Minor values
  • Central and Peripheral mode support
  • Configurable RF transmission power via AT commands
  • Long range communication in open space
  • Ultra low power consumption design
  • Supports firmware upgrade
  • Supports authentication and encryption

Specifications

  • Chipset: TI CC2541
  • Bluetooth Profile: BLE iBeacon
  • Operating Voltage: 3.3V DC
  • Current Consumption: ultra low power
  • Communication Interface: UART
  • Security: authentication and encryption supported

Bluetooth Specifications

  • Bluetooth Version: Bluetooth 4.0 BLE
  • Working Frequency: 2.4GHz ISM band
  • Modulation: GFSK
  • RF Power Levels: -23 dBm -6 dBm 0 dBm 6 dBm
  • Power Adjustment Command: AT+POWE
  • Service UUID: FFE0 FFE1

Data and Communication

  • Asynchronous Data Rate: 6 KB per second
  • Synchronous Data Rate: 6 KB per second
  • No data length limitation
  • Supports secure authentication and encryption

Power Consumption

  • Operating Voltage: 3.3V DC
  • Average Operating Current: 50 mA
  • Active Mode Current: approximately 8.5 mA
  • Sleep Mode Current: 400 uA to 1.5 mA
  • Battery Type: CR2032 coin cell

Pinout

  • VCC: 3.3V power supply input
  • GND: Ground
  • TXD: UART transmit pin for AT command communication
  • RXD: UART receive pin for AT command communication
  • STATE: Connection status indicator output
  • EN or KEY: Module enable or configuration mode control

Mechanical Specifications

  • Board Size: 24.8 mm x 24.8 mm
  • Thickness: 7.5 mm
  • Compact square form factor

Environmental Specifications

  • Operating Temperature Range: -5 to 65 degrees Celsius
  • Designed for indoor and light outdoor use

Range Performance

  • Typical Range: up to 30 meters
  • Maximum Range: up to 100 meters in open space
  • Tested with iPhone 4S and newer devices

Applications

  • Indoor positioning systems
  • Asset and personnel tracking
  • Smart retail and proximity marketing
  • Access control and authentication systems
  • IoT sensor broadcasting
  • Mobile payment and identification systems
  • Smart home and automation projects

Software and Tools

  • Compatible with LightBlue application on iOS
  • Supports AT command configuration
  • Supports over the air firmware upgrade
  • Compatible with HM10 command set

Compatibility

  • Apple iOS 7.0 and above
  • Android 4.3 and above
  • Bluetooth 4.0 and higher devices
