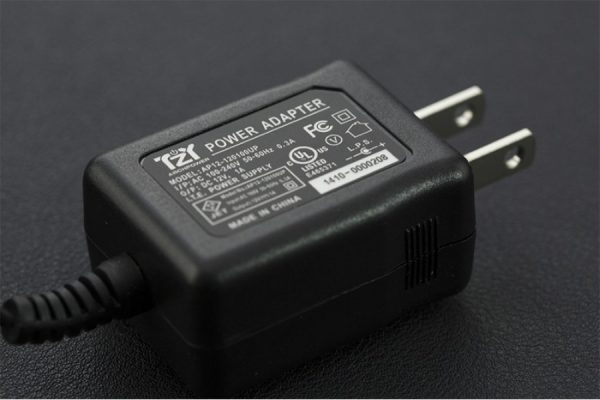

Wall Adapter Power Supply PSU 12VDC 1A (American Standard)

High quality switching wall adapter AC to DC 12V 1A power supply designed for reliable use with electronic projects and development boards. This switch mode power supply provides a stable and regulated 12V output, eliminating the high no-load voltages common with unregulated adapters. It accepts a wide 100 to 240VAC input at 50 or 60Hz, making it suitable for worldwide use without the need for a transformer. The compact wall-mounted design occupies only one outlet position and features a center-positive 5.5mm x 2.1mm barrel connector that plugs directly into the standard Arduino power jack.

Package Includes:

  • 1 x 12V 1A AC to DC Switching Wall Adapter Power Supply
61.95 AED 61.95 AED (Tax included)

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days



Features:

  • Regulated 12V DC output for stable and safe operation
  • Switch mode design for high efficiency and low heat generation
  • Wide input voltage range for international compatibility
  • Center-positive barrel connector compatible with Arduino and similar boards
  • Compact wall-mounted form factor using a single outlet position
  • Suitable for projects requiring up to 1A current consumption

Specification:

  • Model: AP12-120100UP
  • Input Voltage: 100-240V AC
  • Input Frequency: 50/60Hz
  • Input Current: 0.3A
  • Output Voltage: 12V DC
  • Output Current: 1A
  • DC Plug Dimension: 5.5mm x 2.1mm (0.22 x 0.08 inch)
  • Polarity: Center Positive
  • Certifications: FCC, UL
