LCD 1.44 Inch Colored Screen TFT SPI Module 128X128

The 1.44-inch SPI TFT LCD Display Module is a compact full-color display designed for embedded systems, Arduino projects, and other microcontroller applications. Featuring a 128 × 128 pixel resolution and the ST7735 display controller, it delivers vibrant 65K-color graphics while requiring only a few GPIO pins through its SPI interface. Its small size, fast refresh rate, and low power consumption make it ideal for portable devices, instrumentation, robotics, IoT projects, and graphical user interfaces.

Package Includes

  • 1 × 1.44 Inch SPI TFT LCD Display Module (128 × 128, ST7735)
TFT
36.75 AED 36.75 AED (Tax included)

Add to cart
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days



Features

  • 1.44-inch full-color TFT LCD display.
  • 128 × 128 pixel resolution.
  • Driven by the ST7735 display controller.
  • SPI interface for high-speed communication.
  • Supports up to 65K RGB colors.
  • Low GPIO usage with SPI communication.
  • Integrated LED backlight.
  • Compact design suitable for embedded applications.
  • Compatible with Arduino, ESP32, STM32, Raspberry Pi, and other SPI-capable controllers.

Principle of Operation

The display communicates with a host microcontroller using the SPI (Serial Peripheral Interface) protocol. The microcontroller sends commands and pixel data to the onboard ST7735 controller, which stores the image in internal display memory and refreshes the TFT LCD accordingly.

The Data/Command (A0/DC) pin selects whether transmitted bytes represent display commands or pixel data, while the Chip Select (CS) pin enables communication with the display. The RESET pin initializes the controller during startup, and the LED pin powers the display backlight.

Pinout

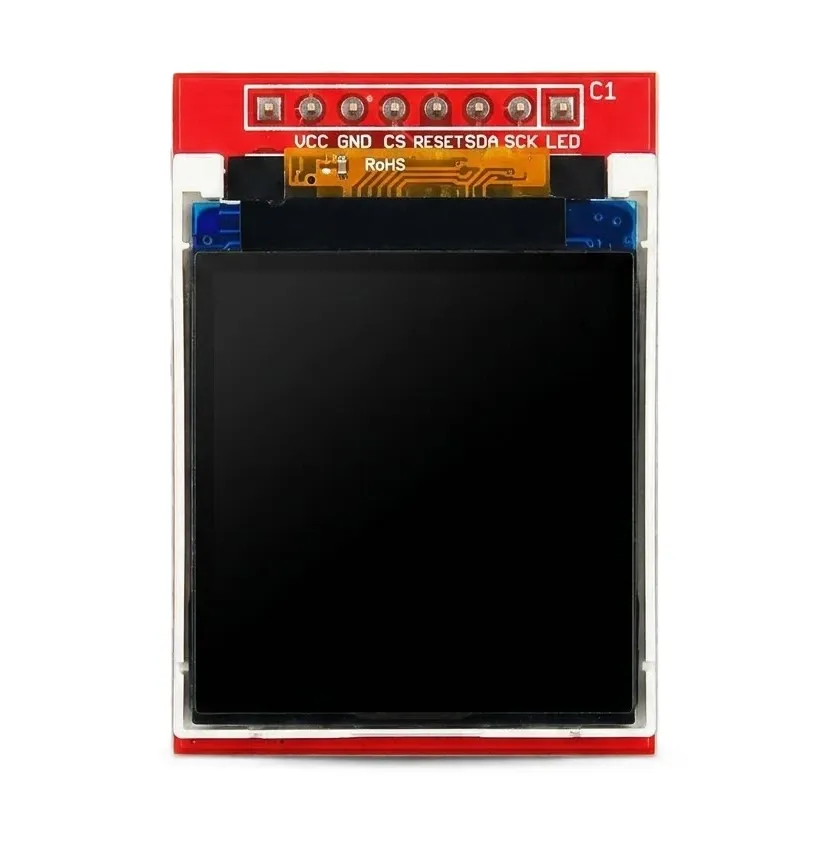

LCD module TFT 1.44 inch TFT LCD screen for Arduino

Pin Description
VCC Power input (3.3V or 5V depending on module version)
GND Ground
CS SPI Chip Select
RESET (RST) Display reset input
A0 (DC) Data / Command selection
SDA (MOSI) SPI data input
SCK (CLK) SPI clock input
LED Backlight power input

Wiring (ESP8266 (Wemos))

DIYmalls 1.44 inch TFT LCD Display Screen Module 3.3V 128x128 (Pack of 2) | DIYmalls 1.44" TFT LCD Display Screen Module 3.3V RGB 65K 128x128 ST7735S for Arduino ESP32 Development Board (Pack

TFT Module Pin Wemos Board Pin Pin Purpose / Function
VCC 3.3V Power input
GND GND Ground line
CS D1 SPI Chip Select
RESET D2 Hardware Reset
A0 (DC) D3 Data / Command Control Pin
SDA (MOSI) D7 Hardware SPI Data Output
SCK D5 Hardware SPI Clock Output
LED 3.3V Display Backlight Power Source

Wemos Custom Arduino Sketch

Install the Adafruit ST7735 and GFX libraries in the Arduino IDE before uploading this sketch.

#include <Adafruit_GFX.h>    // Core graphics library
#include <Adafruit_ST7735.h> // Hardware-specific library for ST7735
#include <SPI.h>

// Hardware pin mapping definitions tailored for Wemos boards
#define TFT_CS     D1
#define TFT_RST    D2
#define TFT_DC     D3

// Initialize the display object mapped to the hardware layout
Adafruit_ST7735 tft = Adafruit_ST7735(TFT_CS, TFT_DC, TFT_RST);

void setup() {
  Serial.begin(115200);

  // Start up the driver chip for a 128x128 pixel module configuration
  tft.initR(INITR_144GREENTAB);

  // Wipe screen and paint it solid blue
  tft.fillScreen(ST7735_BLUE);

  // Render test message strings
  tft.setCursor(10, 30);
  tft.setTextColor(ST7735_WHITE);
  tft.setTextSize(2);
  tft.println("WEMOS");

  tft.setCursor(10, 60);
  tft.setTextColor(ST7735_YELLOW);
  tft.println("ONLINE!");
}

void loop() {
  // Static rendering frame
}

Applications

  • Arduino graphical user interfaces.
  • IoT device displays.
  • Portable measurement instruments.
  • Robotics control panels.
  • Embedded status displays.
  • Menu-driven electronic projects.
  • Sensor data visualization.
  • Wearable electronics.

Specifications

Parameter Value
Display Size 1.44 Inch
Resolution 128 × 128 pixels
Display Type TFT LCD
Driver IC ST7735
Interface SPI
Color Depth 65K RGB Colors
Supply Voltage 3.3V–5V (module dependent)
Backlight LED
Operating Temperature -20°C to +70°C (typical)
