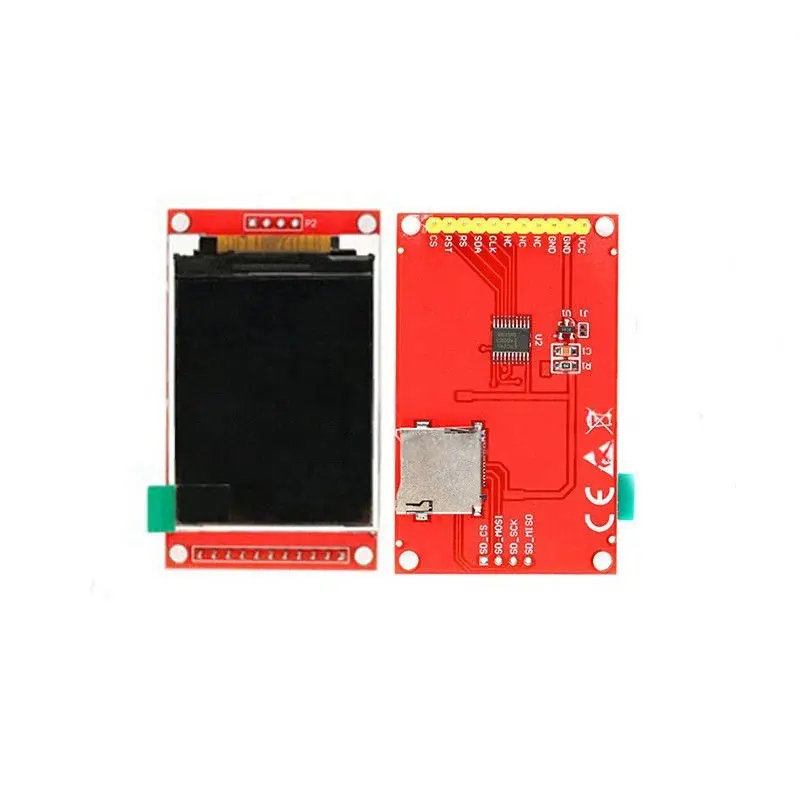

LCD 1.8 inch TFT SPI Module 128*160 ST7735

LCD 1.8 inch TFT SPI Module 128*160 ST7735

The 1.8-inch SPI TFT LCD Display Module with ST7735 driver is a compact, feature-rich screen for microcontroller-based applications. Its vibrant color display, ease of connectivity, and SD card support make it ideal for visual interfaces in embedded systems.

Package Includes:

  • 1 × 1.8-inch SPI TFT LCD Display Module (ST7735 Driver)

56.00 AED 56.00 AED Tax Included
56.00 AED Tax Included

Not Available For Sale

This combination does not exist.

TFT
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



Features:

  • Size: Compact 1.8-inch screen, ideal for portable or embedded projects.
  • Resolution: 128×160 pixels – clear and sharp display for text, graphics, and images.
  • Driver IC: ST7735 – a widely supported and efficient TFT controller with full-color support.
  • Interface: SPI (Serial Peripheral Interface) – fast and simple communication with microcontrollers.
  • Power Supply: Compatible with both 5V and 3.3V input voltages via onboard voltage regulator.
  • Level Shifting: Built-in level shifting for 5V/3.3V IO compatibility – no need for external logic shifters.
  • SD Card Slot: Integrated SD card interface for image or data logging applications.

Specifications:

  • Display Size: 1.8 inches
  • Resolution: 128 × 160 pixels
  • Driver IC: ST7735
  • Interface: SPI
  • Power: 5V/3.3V input (regulated internally)
  • Extras: Integrated SD card reader

Hardware Connections:

LCD Pin Arduino Pin
1 - Vcc 3.3V or 5V
2 - GND GND
3 - GND or N/C GND / Not Connected
4 - N/C Not Connected
5 - N/C Not Connected
6 - LED 3.3V
7 - CLK (SCK) D13
8 - SDI (MOSI) D11
9 - RS (DC) D9
10 - RST D8
11 - CS (SS) D10

Sample Arduino Code:

#include "UTFT.h"

// Declare font
extern uint8_t SmallFont[];

// Create an instance of UTFT
UTFT myGLCD(ITDB18SP, 11, 13, 10, 8, 9);

void setup() {
  myGLCD.InitLCD(PORTRAIT);
  myGLCD.setFont(SmallFont);
  myGLCD.clrScr();
  myGLCD.setContrast(64);
  myGLCD.setColor(255, 255, 255);
  myGLCD.setBackColor(255, 100, 0);
  myGLCD.print("Mooper", CENTER, 0);
}

void loop() {
  // Custom drawing or graphics routines can be placed here.
}

Library:

Make sure to download and install the UTFT library by Henning Karlsen from the Arduino Library Manager or GitHub.

Applications:

  • Embedded display interfaces
  • Graphical user interfaces (GUI)
  • Sensor data visualization
  • Game development on microcontrollers
  • Portable electronic devices
