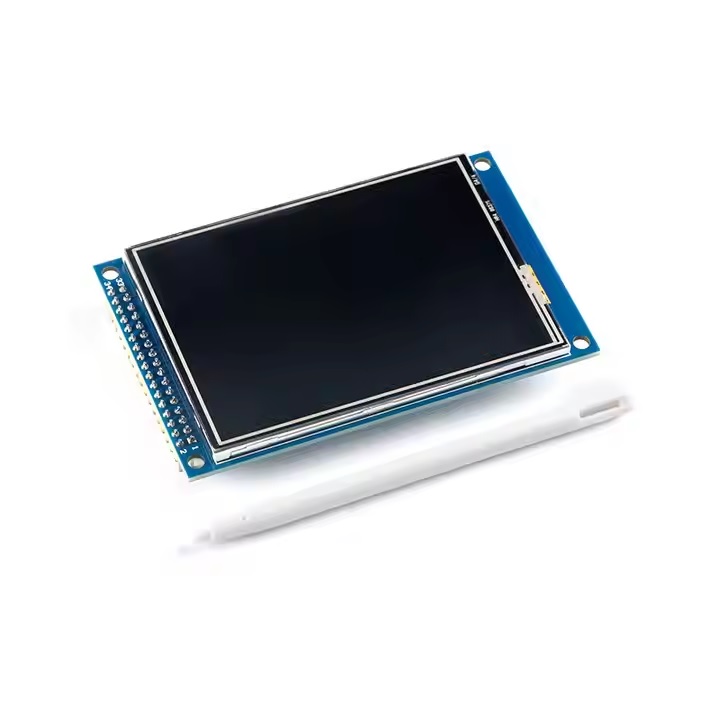

LCD TFT 3.2 Inch Touch Screen Display Module 240x320 For Mega

The 3.2-inch LCD TFT Touch Screen Display Module is a powerful, feature-rich display solution designed to enhance any embedded project with clarity, interaction, and versatility. Equipped with the ILI9341 controller, this module delivers a sharp 240×320 resolution, 65K color depth, and smooth touch functionality. The integrated SD card slot and Flash design further expand its capabilities, making it ideal for user interfaces, controllers, menus, data visualization, and more.

Package Includes

1 × LCD TFT 3.2-Inch Touch Screen Display Module

TFT Touch

89.25 AED (Tax included)

Add to cart

Add to wishlist

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Features

3.2 Inch TFT LCD Display: Features a 3.2-inch TFT LCD with a resolution of 240 x 320 pixels, delivering clear visuals and smooth color rendering.
Integrated Touch Functionality: Built-in touch capability enables interactive user interfaces and improves overall user experience.
SD Card Slot: The device features an SD card slot for direct data storage and retrieval, providing added flexibility for handling graphics, logs, and media.
Flash Design: Designed with flash support to improve data handling and storage efficiency.
Wide Viewing Angle: Offers a wide viewing angle and good contrast ratio to maintain visibility and clarity from different perspectives.

Specifications

Display Type: TFT LCD with touch screen
Display Size: 3.2 Inch
Resolution: 240 x 320 pixels
Color Depth: 65K colors
LCD Controller: ILI9341
Interface: 40-pin interface

Libraries

Adafruit GFX Library: https://github.com/adafruit/Adafruit-GFX-Library
Adafruit ILI9341 Library: https://github.com/adafruit/Adafruit_ILI9341
MCUFRIEND_kbv Library: https://github.com/prenticedavid/MCUFRIEND_kbv
TouchScreen Library: https://github.com/adafruit/Adafruit_TouchScreen
XPT2046 Touchscreen Library: https://github.com/PaulStoffregen/XPT2046_Touchscreen
SD Library: https://github.com/arduino-libraries/SD
