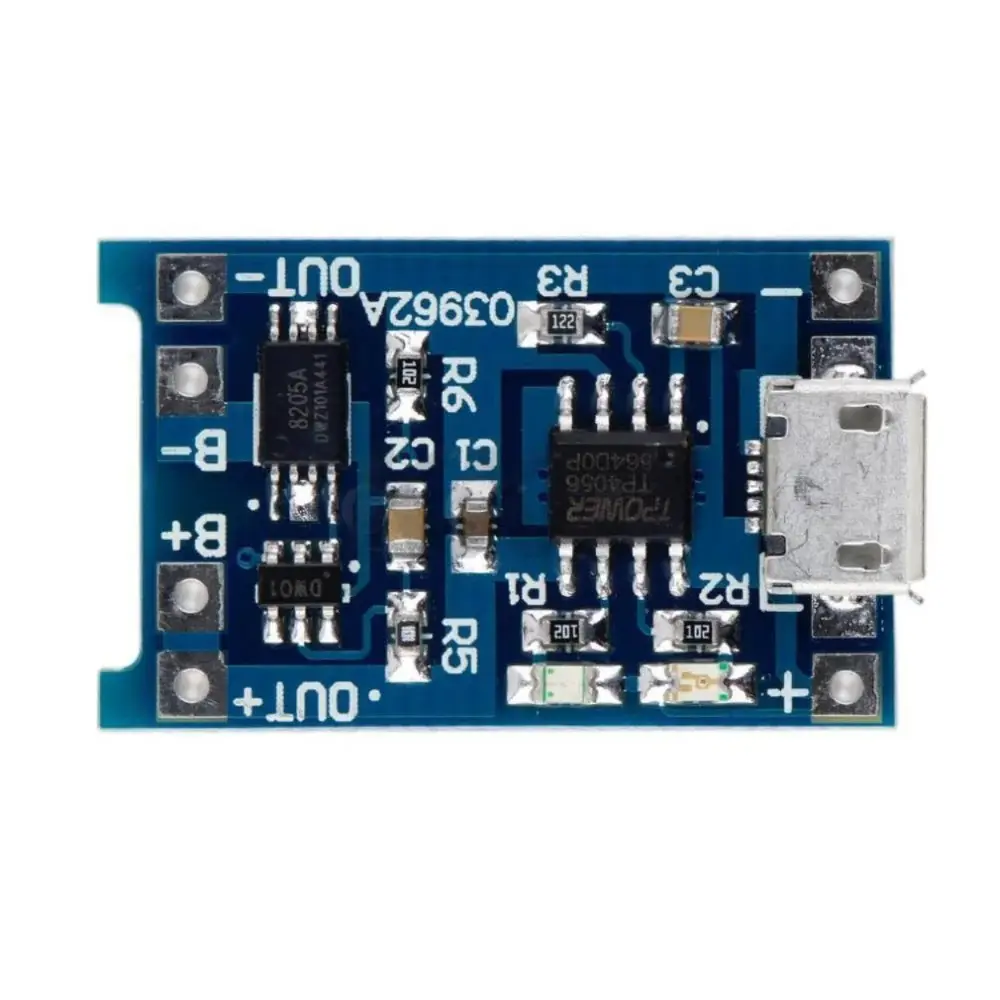

DC-DC Battery Charger for Lithium 18650 Li-ion Charging Protection Board 5V 1A TP4056

DC-DC Battery Charger for Lithium 18650 Li-ion Charging Protection Board 5V 1A TP4056

This Charge Module with linear charging capability provides a reliable and compact solution for charging single-cell lithium batteries like the 18650. It features adjustable current settings and dual LED indicators for monitoring the charging status, making it ideal for DIY electronics and battery-powered projects.

Package Includes:

  • 1 x DC-DC Battery Charger for Lithium 18650 Li-ion Charging Protection Board 5V 1A TP4056

9.95 AED 9.95 AED Tax Included
9.95 AED Tax Included

Not Available For Sale

This combination does not exist.

Battery Charger Module
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



Specifications:

  • Charging Type: Linear
  • Charging Current: 1A adjustable
  • Charge Precision: ±1.5%
  • Input Voltage: 4.5V – 5.5V
  • Full Charge Voltage: 4.2V
  • Input Interface: Micro USB
  • LED Indicators: Red = Charging, Green = Fully Charged
  • Inversed Polarity Protection: Not supported
  • Dimensions: 25 x 19 x 10 mm

Features:

  • Adjustable charge current to suit different battery capacities
  • Visual charging indicators with built-in LEDs
  • Compact size for easy integration into space-limited applications
  • Micro USB interface for convenience and wide compatibility

Important Notes:

  1. Ampere Meter Connection: Only connect to the 5V input terminal.
  2. Recommended Charging Current: 37% of battery capacity (e.g., 400mA for a 1000mAh battery).
  3. Wire Thickness: Avoid overly thick wires for input/output connections.
  4. Connection Quality: Ensure firm and clean connection points.
  5. High Input Voltage Protection: Charging current reduces automatically when input > 5.2V to protect the IC.
  6. No Reverse Polarity Protection: Ensure correct wiring to prevent permanent damage.
