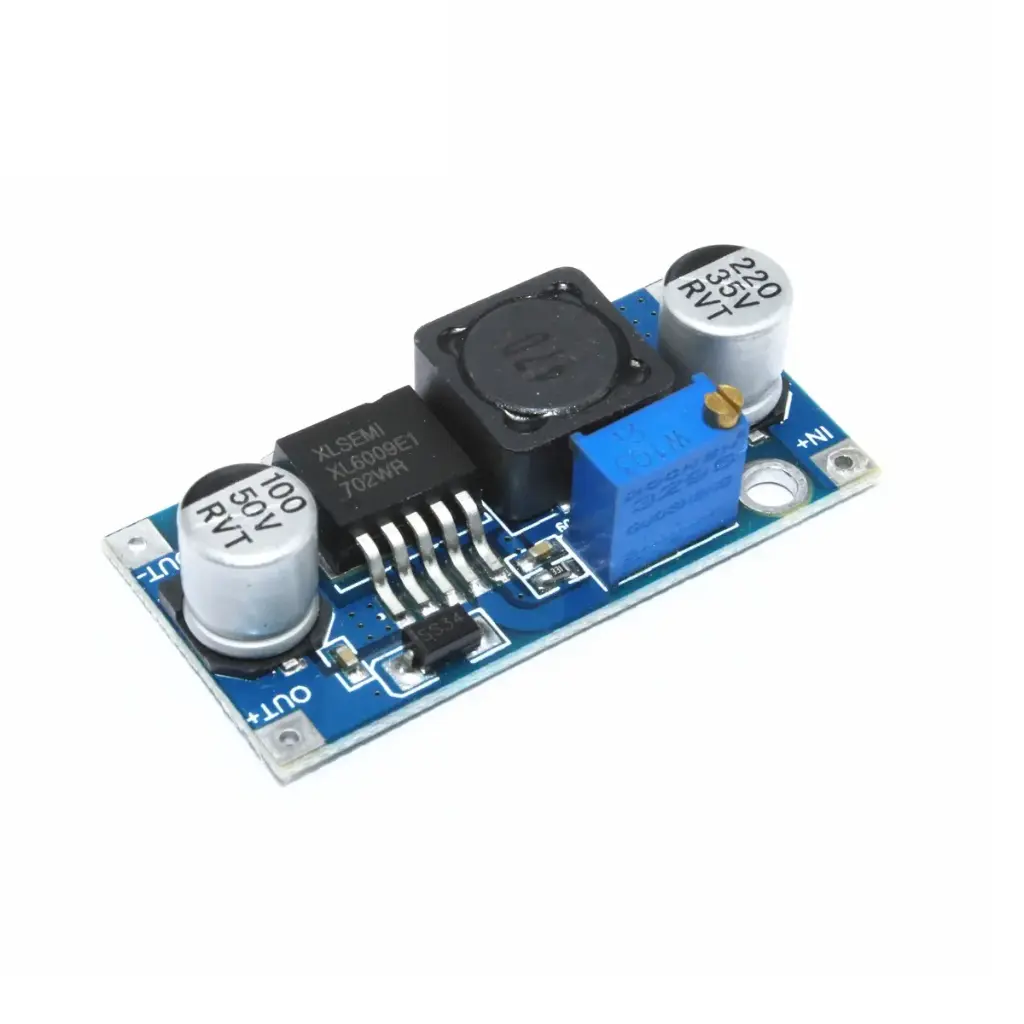

DC-DC Step-Up Booster Power Supply Module XL6009

DC-DC Step-Up Booster Power Supply Module XL6009

The DC-DC XL6009 Module is a high-efficiency step-up (boost) converter designed to provide a stable voltage output for a wide range of electronic applications. It features an integrated 4A MOSFET switch for efficient operation, delivering up to 94% efficiency. Its ultra-high switching frequency enables the use of small filter capacitors while ensuring excellent performance, making it ideal for compact and power-sensitive designs.

Package Includes:

  • 1 x DC-DC Step-Up Booster Power Supply Module XL6009

Boost Converter
15.75 AED 15.75 AED (Tax included)

Add to cart
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days



Features:

  • High Efficiency: Built-in 4A efficient MOSFET switch achieves up to 94% conversion efficiency.
  • Ultra-High Switching Frequency: Allows the use of low-capacitance filtering components while maintaining stable output.
  • Durable Design: Solid structure ensures reliability for demanding environments.
  • Wide Input Voltage: Accepts from 3.5V to 32V, ideal for various power sources.
  • Adjustable Output: Output voltage adjustable from 5V to 35V to match your application needs.
  • High Output Current: Rated at 2.5A, with a maximum of 3A when additional heatsinking is used.

Specifications:

  • Input Voltage: 3.5V – 32V
  • Output Voltage: 5V – 35V (adjustable)
  • Output Current: Rated: 2.5A; Max: 3A (requires heatsink)
  • Load Regulation: ±0.5%
  • Voltage Regulation: ±0.5%
  • Operating Temperature: -40°C to +125°C
  • Maximum Output Power: 10W
  • Dimensions: 4.1 x 2.1 x 1.3 cm

Applications:

  • Power supply for IoT devices, sensors, and microcontrollers
  • Battery charging and energy harvesting applications
  • LED drivers and lighting systems
  • Automotive and aerospace electronics

How to Use the XL6009 DC-DC Step-up Booster Module

The XL6009 is a high-efficiency step-up (boost) converter capable of providing adjustable output voltage from a lower input voltage. It is easy to integrate into projects requiring a stable voltage supply.

Connections

  • VIN (+): Connect to the positive terminal of your power source (3.5V – 32V).
  • GND: Connect to the negative terminal of your power source.
  • VOUT (+): Connect to the device or circuit requiring the boosted voltage.
  • GND: Connect to the negative terminal of the load (common ground).

Adjusting the Output Voltage

  1. Locate the small potentiometer (screw) on the module.
  2. Use a screwdriver to turn the potentiometer.
  3. Measure the output voltage with a multimeter while adjusting.
  4. Turn clockwise to increase the output voltage, counterclockwise to decrease.
  5. Do not exceed the module's maximum output voltage (35V) or rated current (2.5A without heatsink).

Tips for Safe Operation

  • Always connect the load after adjusting the output voltage to avoid accidental overvoltage.
  • For currents above 2.5A, attach a heatsink to prevent overheating.
  • Ensure the input voltage is always lower than the desired output voltage, as the module cannot step down voltage.
  • Keep wiring short and thick enough to handle the expected current.
  • Use a multimeter to monitor voltage and current during initial setup.
