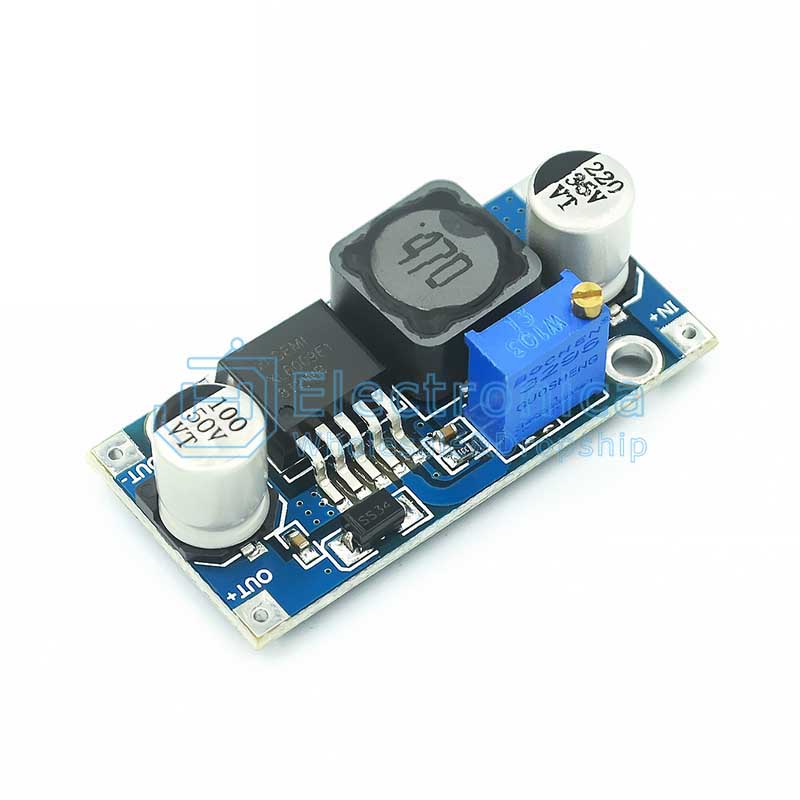

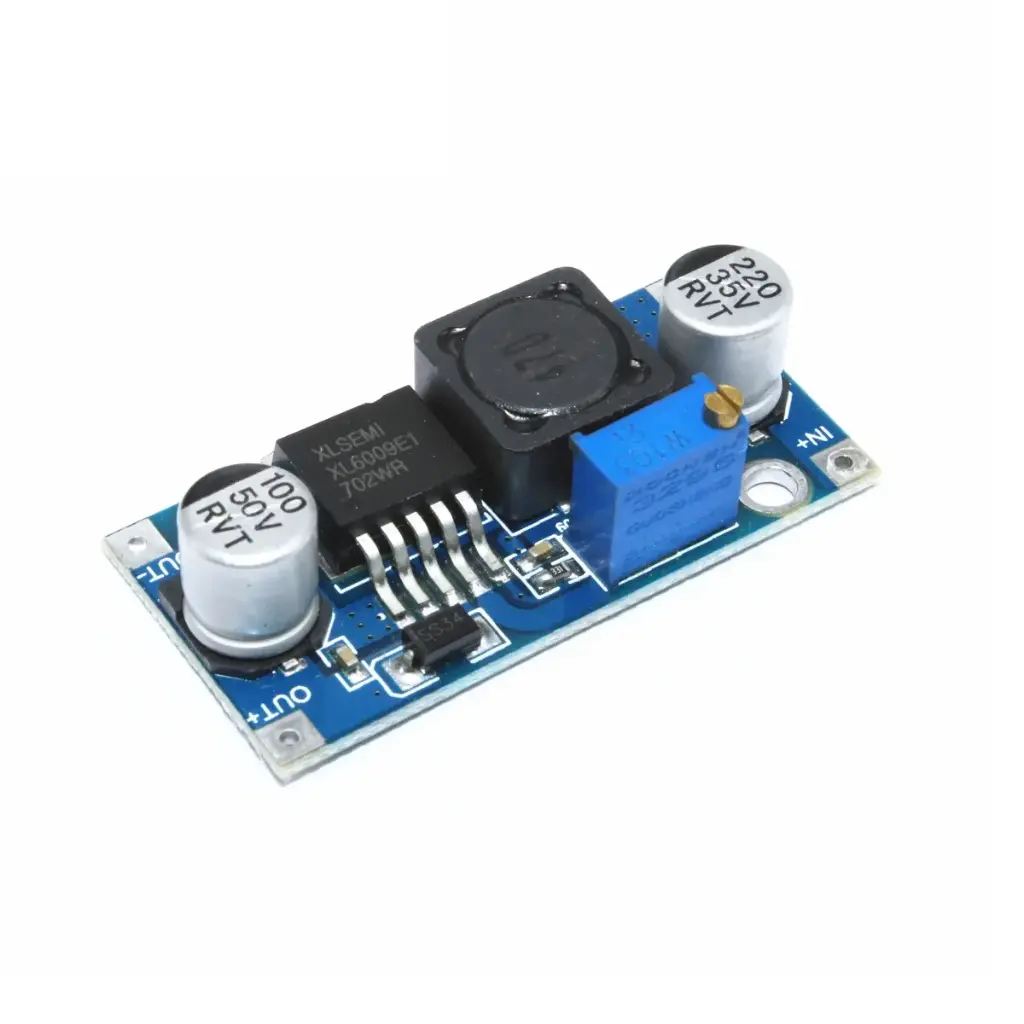

DC-DC Step-Up Booster Power Supply Module XL6009

DC-DC Step-Up Booster Power Supply Module XL6009

The DC-DC XL6009 Module is a high-efficiency step-up (boost) converter designed to provide a stable voltage output for a wide range of electronic applications. It features an integrated 4A MOSFET switch for efficient operation, delivering up to 94% efficiency. Its ultra-high switching frequency enables the use of small filter capacitors while ensuring excellent performance, making it ideal for compact and power-sensitive designs.

Package Includes:

  • 1 x DC-DC Step-Up Booster Power Supply Module XL6009

15.75 AED 15.75 AED Tax Included
15.75 AED Tax Included

Not Available For Sale

This combination does not exist.

Boost Converter
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



Features:

  • High Efficiency: Built-in 4A efficient MOSFET switch achieves up to 94% conversion efficiency.
  • Ultra-High Switching Frequency: Allows the use of low-capacitance filtering components while maintaining stable output.
  • Durable Design: Solid structure ensures reliability for demanding environments.
  • Wide Input Voltage: Accepts from 3.5V to 32V, ideal for various power sources.
  • Adjustable Output: Output voltage adjustable from 5V to 35V to match your application needs.
  • High Output Current: Rated at 2.5A, with a maximum of 3A when additional heatsinking is used.

Specifications:

  • Input Voltage: 3.5V – 32V
  • Output Voltage: 5V – 35V (adjustable)
  • Output Current: Rated: 2.5A; Max: 3A (requires heatsink)
  • Load Regulation: ±0.5%
  • Voltage Regulation: ±0.5%
  • Operating Temperature: -40°C to +125°C
  • Maximum Output Power: 10W
  • Dimensions: 4.1 x 2.1 x 1.3 cm

Applications:

  • Power supply for IoT devices, sensors, and microcontrollers
  • Battery charging and energy harvesting applications
  • LED drivers and lighting systems
  • Automotive and aerospace electronics
