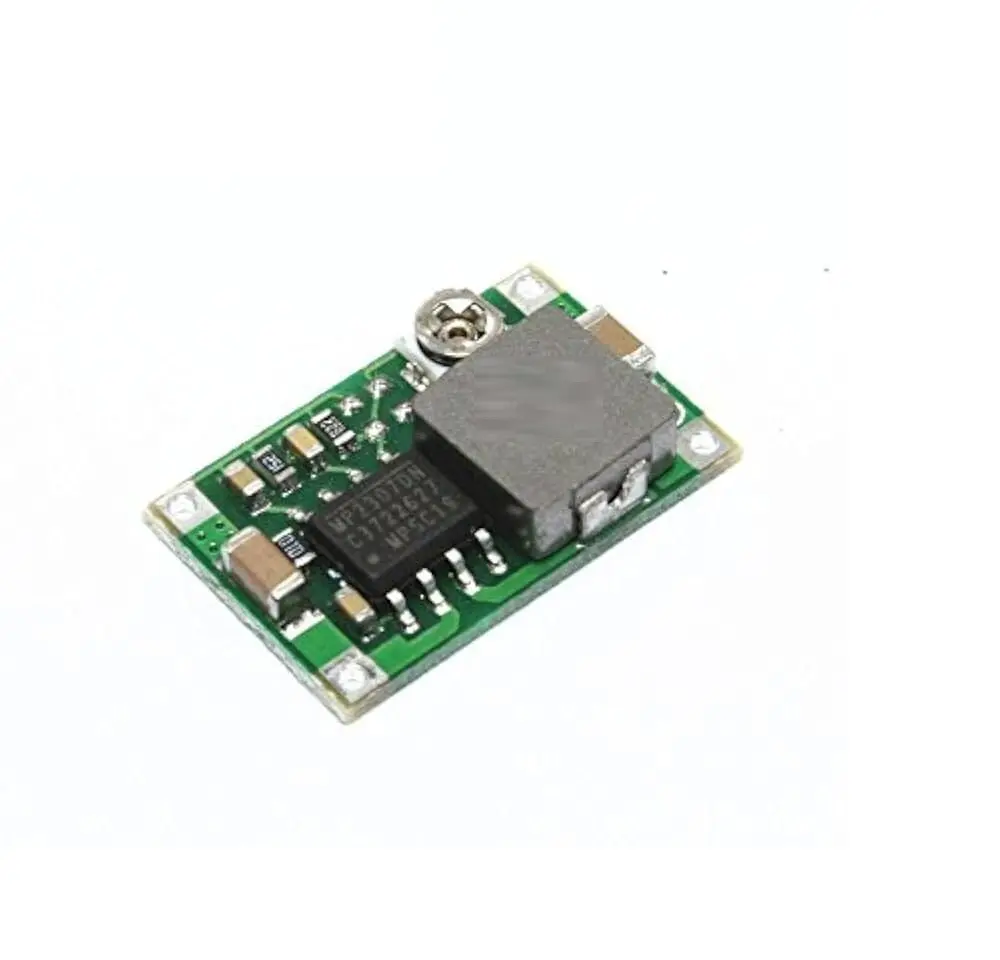

DC-DC Mini Converter Step down Power Supply 0.8-20V 3A

DC-DC Mini Converter Step down Power Supply 0.8-20V 3A

The Mini 0.8-20V 3A DC-DC Converter is an adjustable step-down (buck) power supply module designed for compact and efficient voltage regulation. It provides a stable output voltage from a higher input voltage and is suitable for powering a wide range of electronic devices and projects.

Package Includes

  • 1 x Mini 0.8-20V 3A DC-DC Buck Converter Module
Buck Converter
15.75 AED 15.75 AED (Tax included)

Add to cart
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Specifications

  • Input Voltage: 4.5V – 28V DC
  • Output Voltage: 0.8V – 20V DC (Adjustable)
  • Output Current: Rated 3A (Maximum)
  • Efficiency: Up to 96%
  • Switching Frequency: 1MHz
  • Output Ripple: Less than 30mV
  • Operating Temperature: Industrial grade -45℃ to +85℃
  • Module Type: Non-isolated step-down module (Buck)
  • Size: Approx. 0.87 x 0.67 x 0.16 inch / 22 x 17 x 4 mm

Applications

  • Powering microcontrollers, sensors, and other electronics from higher voltage sources
  • Adjustable voltage supply for testing and prototyping circuits
  • Embedded systems requiring efficient step-down voltage conversion

How to Use the XL6009 DC-DC Step-up Booster Module

The XL6009 is a high-efficiency step-up (boost) converter capable of providing adjustable output voltage from a lower input voltage. It is easy to integrate into projects requiring a stable voltage supply.

Connections

  • VIN (+): Connect to the positive terminal of your power source (3.5V – 32V).
  • GND: Connect to the negative terminal of your power source.
  • VOUT (+): Connect to the device or circuit requiring the boosted voltage.
  • GND: Connect to the negative terminal of the load (common ground).

Adjusting the Output Voltage

  1. Locate the small potentiometer (screw) on the module.
  2. Use a screwdriver to turn the potentiometer.
  3. Measure the output voltage with a multimeter while adjusting.
  4. Turn clockwise to increase the output voltage, counterclockwise to decrease.
  5. Do not exceed the module's maximum output voltage (35V) or rated current (2.5A without heatsink).

Tips for Safe Operation

  • Always connect the load after adjusting the output voltage to avoid accidental overvoltage.
  • For currents above 2.5A, attach a heatsink to prevent overheating.
  • Ensure the input voltage is always lower than the desired output voltage, as the module cannot step down voltage.
  • Keep wiring short and thick enough to handle the expected current.
  • Use a multimeter to monitor voltage and current during initial setup.
