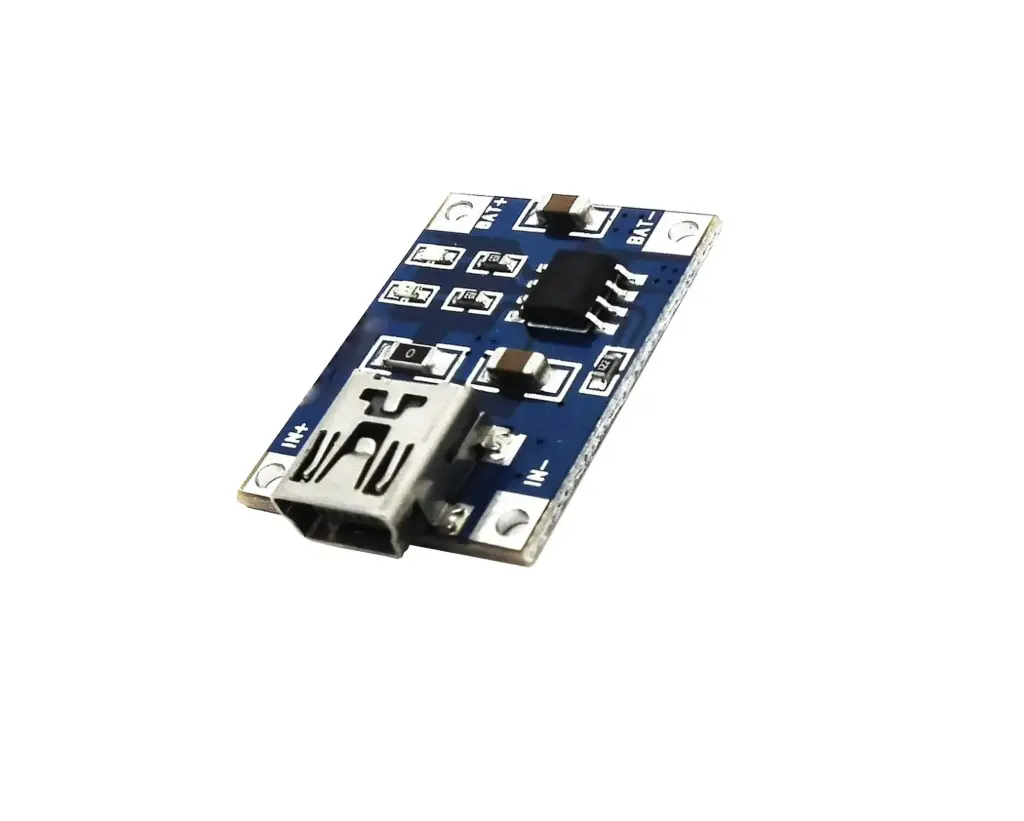

DC-DC Battery Mini USB LiPo Charging Board Module TP4056 5V 1A

DC-DC Battery Mini USB LiPo Charging Board Module TP4056 5V 1A

This compact and efficient Lipo battery charging board uses the TP4056 chip, providing a reliable and adjustable charging solution for single or parallel LiPo battery setups. It's ideal for DIY electronics, RC projects, and portable devices that charge via USB.

Package Includes:

  • 1 × TP4056 Lipo Battery Charging Board with Mini USB

8.40 AED 8.40 AED Tax Included
8.40 AED Tax Included

Not Available For Sale

This combination does not exist.

Battery Charger
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



Features:

  • Uses mature TP4056 charging chip for simple circuitry and high charging accuracy
  • Good protection performance and reliable operation
  • Fully automated machine processing and SMD component assembly
  • Each unit is tested before shipment for high reliability
  • Adjustable charging current by changing fixed resistor on the board

Specifications:

  • Item Name: Lipo Battery Charging Board
  • Item No.: TP4056
  • Charging Method: Linear charge
  • Charging Current: 1A Adjustable
  • Charge Accuracy: 1.5%
  • Input Voltage: 4.5V–5.5V
  • Full Charge Voltage: 4.2V
  • Charging Input Interface: Mini USB
  • Working Temperature: -10°C to +85°C
  • Reverse Protection: Not supported
  • Weight: 1.8g
  • Dimensions: 25 × 19 × 10 mm
  • Usage: Suitable for charging a single LiPo battery or multiple LiPo batteries in parallel. Can be powered via USB port.

Current Regulation Table:

R (KΩ) I (mA)
30 50
20 70
10 130
5 250
4 300
3 400
2 580
1.66 690
1.5 780
1.33 900
1.2 1000

Note:

  • Reverse connection on input has no effect, but reverse connection at battery output will damage the chip
  • Ampere meter must be in series with the 5V input
  • Charging current is recommended at 0.37 × battery capacity
  • Avoid thin or long charging wires for best performance
  • Ensure good battery contact for proper operation
  • Normal working temperature may reach around 60°C
