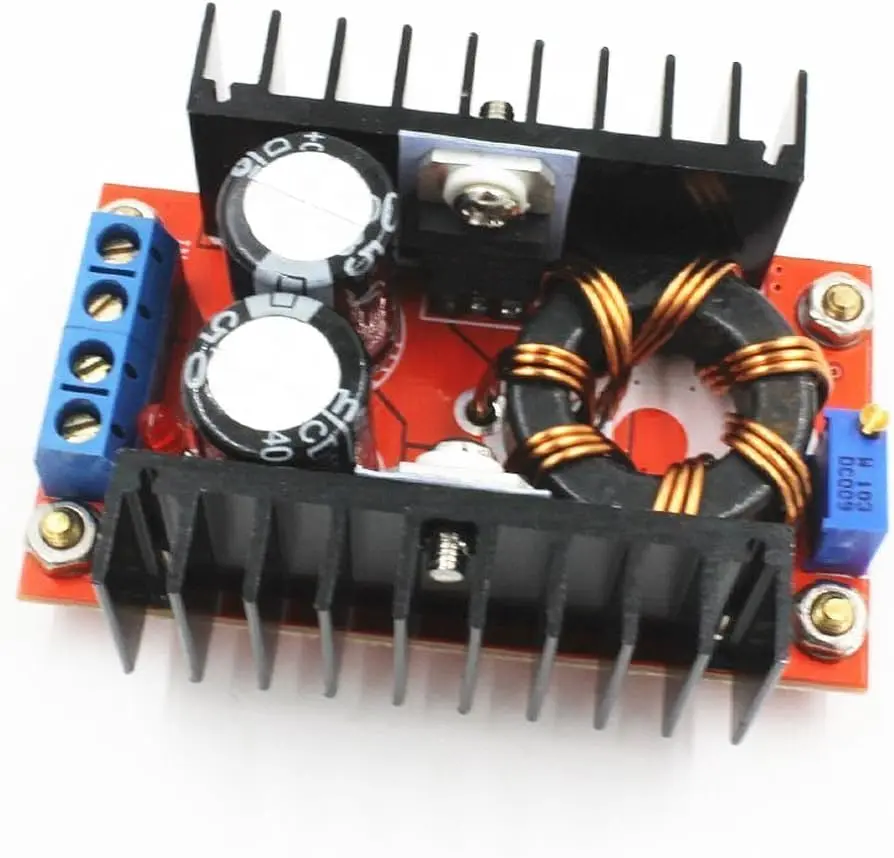

DC-DC Boost Converter Step Up Power Module 150W 10-32V to 12-35V (w/ Copper Pillar)

DC-DC Boost Converter Step Up Power Module 150W 10-32V to 12-35V (w/ Copper Pillar)

The Adjustable On-Board Power Supply is an efficient and flexible DC-DC boost converter module. By inputting a DC voltage between 10V and 32V, users can obtain a customizable output ranging from 12V to 35V. This makes it ideal for powering various electronics, DIY projects, and custom booster chargers.

Package Includes:

  • 1 x DC-DC Boost Converter Step-Up Power Module 150W 10-32V to 12-35V (with copper pillar)

21.95 AED 21.95 AED Tax Included
21.95 AED Tax Included

Not Available For Sale

This combination does not exist.

Boost Converter
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



Features:

1. Power and Efficiency Features:

  • Wide Input Range: Accepts DC input voltage from 10V to 32V for versatility across projects.
  • Adjustable Output: Provides adjustable output voltage from 12V to 35V to meet specific device needs.
  • High Efficiency: Achieves up to 94% conversion efficiency (e.g., Input 19V 2.5A, Output 16V).
  • Enhanced Cooling Support: Capable of delivering up to 150W real power with added fan cooling. Recommended to install a fan when output exceeds 10A.
  • Temperature Tolerance: Industrial operating range from -40°C to +85°C. For temperatures over 40°C, reduce power or enhance cooling.

2. Precision and Control Features:

  • Voltage Regulation: ±0.5% for consistent output under varying conditions.
  • Load Regulation: ±0.5% to support stable current flow to connected devices.
  • Low Ripple: Max ripple of 2% ensures clean and stable output voltage.
  • Fast Response: Dynamic response speed of 200µs (5%) for rapid load adjustments.
  • Manual Safety Integration: Does not include short-circuit or reverse polarity protection—users should install a fuse or diode at the input terminal.

Specifications:

  • Input Voltage: DC 10V–32V
  • Output Voltage: DC 12V–35V (adjustable)
  • Output Current: 10A (MAX)
  • Input Current: 16A (MAX)
  • Output Power: 100W (natural cooling), 150W (with fan)
  • Conversion Efficiency: 94%
  • Output Ripple: 2% (MAX)
  • Working Temperature: -40°C to +85°C
  • Full-Load Temperature: ~45°C
  • No-Load Current: 25mA (typical)
  • Voltage Regulation: ±0.5%
  • Load Regulation: ±0.5%
  • Dynamic Response Speed: 200µs (5%)
  • Short Circuit Protection: No (external fuse recommended)
  • Input Reverse Protection: No (use external diode for polarity protection)
  • Dimensions: 65mm x 35mm x 21mm

Note:

This module does not have built-in short circuit or reverse polarity protection. For safe operation, always install a fuse or diode at the input terminal.
