Microphone Sound Detection Sensor Blue

Microphone Sound Detection Sensor Blue

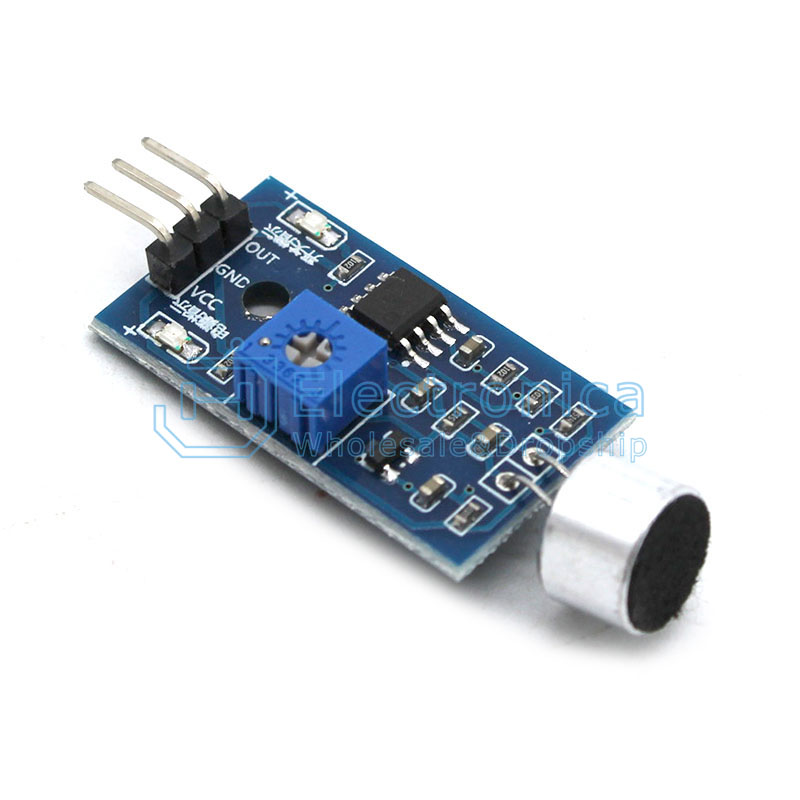

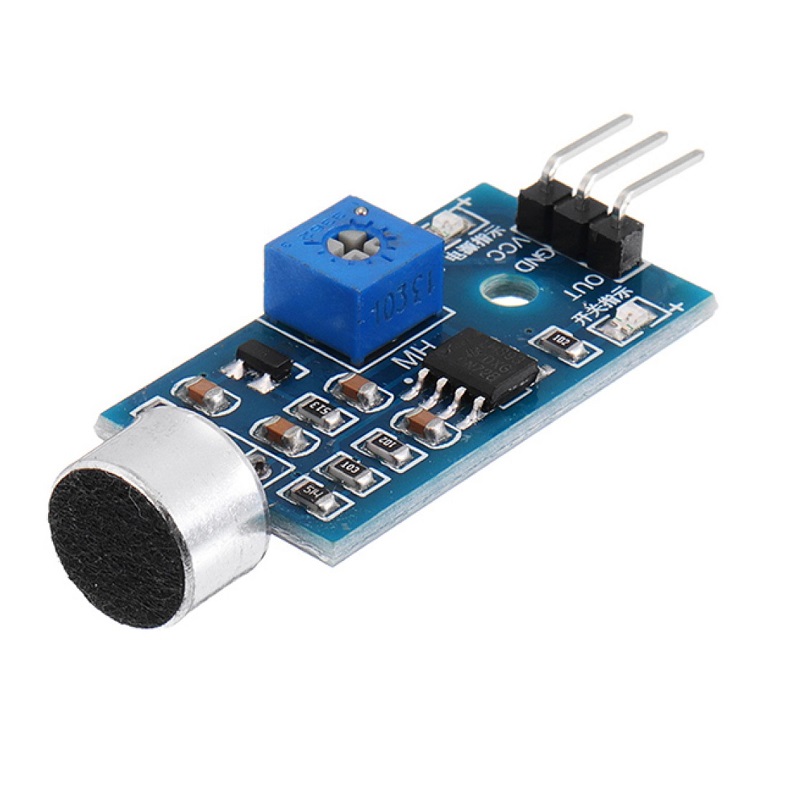

The Microphone Sound Detection Sensor Module acts like a microphone that detects sound and outputs digital signals based on an onboard Schmitt trigger circuit. This sensor is ideal for clap-activated projects, pet monitors, and other audio-triggered systems. It’s simple to use, affordable, and sensitive to a wide range of sound frequencies (50Hz–10kHz).

Package Includes:

  • 1 x Microphone Sound Detection Sensor Module (Blue)

12.00 AED 12.00 AED Tax Included
12.00 AED Tax Included

Not Available For Sale

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



Features:

  • Power-On LED: Indicates when the module is powered (LED1)
  • Electret Condenser Microphone (ECM): Captures sound signals from the environment
  • Output Status LED: (LED2) Illuminates when sound exceeds the threshold
  • Built-in Potentiometer: Allows adjustment of the digital output (DO) sensitivity threshold
  • Mounting Hole: Includes 3mm mounting hole for easy installation

Principle of Operation:

Sound waves cause the microphone diaphragm to vibrate, changing the capacitance and generating a voltage. This voltage is processed by the onboard comparator (LM393), which outputs a digital signal based on the preset threshold.

Pinout of the Module:

Microphone Sensor Pinout

  • VCC: Power supply (3.3V to 5V)
  • GND: Ground
  • OUT: Digital Output – LOW when sound is detected, HIGH otherwise

Applications:

  • Clap-activated switch projects
  • Sound-triggered LED or relay systems
  • Animal noise monitoring
  • Security systems

Circuit Diagram:

Circuit Diagram

Connect the module’s VCC and GND to 5V and GND on the Arduino. Connect OUT to digital pin 7.

Arduino Code Example:

#define sensorPin 7
unsigned long lastEvent = 0;

void setup() {
  pinMode(sensorPin, INPUT);
  Serial.begin(9600);
}

void loop() {
  int sensorData = digitalRead(sensorPin);

  if (sensorData == LOW) {
    if (millis() - lastEvent > 25) {
      Serial.println("Clap detected!");
    }
    lastEvent = millis();
  }
}

This code outputs "Clap detected!" to the Serial Monitor when a sound is detected.

Technical Details:

  • Mounting Hole Diameter: 3mm
  • Comparator IC: LM393
  • Power Supply: +5V
  • Dimensions: 35mm x 15mm x 14mm (L x W x H)
  • Color: Blue



Resources:

  • Tutorial 1 (watch for wiring and example use cases)

Comparison:

This module is perfect for binary (digital) sound detection without needing a microcontroller—just connect it directly to a relay. However, for analog sound level monitoring, consider a different sensor with analog output capabilities.
