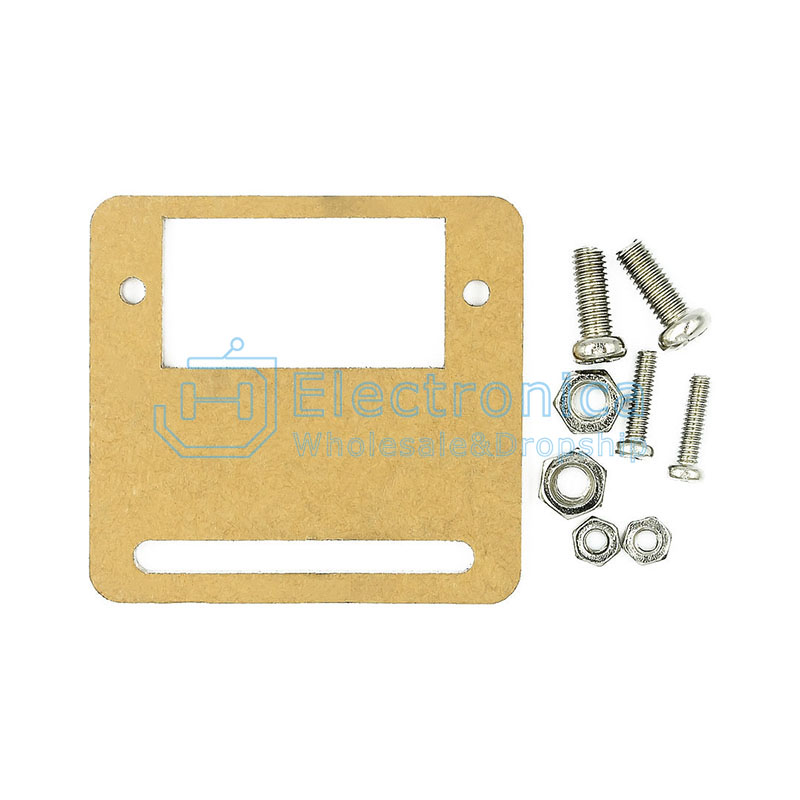

Servo Acrylic Bracket for SG90 Mounting Holder with Fixing Screws

Servo Acrylic Bracket for SG90 Mounting Holder with Fixing Screws

This acrylic Mount Holder Bracket is specially designed to securely fix the SG90 9g Micro Servo Motor in place. It offers a compact and efficient mounting solution for various electronic projects, particularly in RC models, robotics, and automation systems. Crafted from transparent acrylic with a protective yellow film, this bracket ensures durability and a clean appearance, making it ideal for both functional and aesthetic integration.

Package Includes:

  • 1 x Acrylic Mount Holder Bracket for SG90 9g Micro Servo Motor

Note:

  • Servo motor is not included in the package.

4.95 AED 4.95 AED Tax Included
4.95 AED Tax Included

Not Available For Sale

This combination does not exist.

Servo Accessories
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



Features:

  • SG90 Servo Compatibility: Tailored specifically for the SG90 9g micro servo motor, ensuring a snug and reliable fit.
  • Material Quality: Made from durable 3mm thick transparent acrylic for lightweight and strong support.
  • Protective Film: Covered with a removable yellow protective film on both sides to prevent scratches during transport and assembly.
  • Easy Integration: Simple to mount and dismount for quick setup and modification in your electronic projects.
  • Clean Aesthetic: The transparent and white finish gives a modern, polished look to your setup.
  • Space-Saving Design: With its compact dimensions, the bracket fits easily into tight spaces in project enclosures or chassis.

Specifications:

  • Product Name: Mount Holder Bracket for SG90 Micro 9g
  • Application: Electronic product mounting (e.g., robotics, RC vehicles)
  • Material: Acrylic
  • Dimensions: 36.5mm (L) x 34.4mm (W) x 3mm (T)
  • Color: Transparent (with protective yellow film)



Image References:

SG90 Bracket - Image 1 SG90 Bracket - Image 2 SG90 Bracket - Image 3 SG90 Bracket - Image 4



Features

  • LoRa SX1276 Wireless Module: Built around the SX1276 chip, the module employs LoRa technology, allowing for long-range data transmission and excellent penetration capabilities.
  • Configurable Output Power: The module's output power can be adjusted from +13 to +20 dBm (up to 100 mW) through software settings, providing flexibility in balancing communication distance and power consumption.
  • Low Power Consumption: During transmission, power consumption ranges from 50mA (+13 dBm) to 150mA (+20dBm), while in listening mode, it requires approximately 30mA, making it energy-efficient for battery-operated applications.
  • AES-128 Encryption Support: The module offers AES-128 encryption, ensuring secure and private data transmission, making it suitable for applications that require data confidentiality.
  • Multipoint Network Capabilities: It supports multipoint networks, allowing the establishment of individual nodes within the network for seamless and efficient communication.
  • Wide Power Supply Range: The module can be powered with a voltage range from 3V to 5V, making it compatible with various power sources and microcontrollers.

NOTE: It is important to solder a 16cm length of cable to the antenna pin before using it since not connecting any antenna can damage it. Optionally, the board has pads to solder an SMA connector with antenna thread.

Specifications

  • LoRa SX1276 wireless module with SPI interface (900 MHz)
  • Output power: +13 to +20 dBm up to 100 mW configurable by software
  • Consumption: 50mA (+13 dBm) to 150mA (+20dBm) in transmission, approx 30mA in listening
  • Supports AES-128 encryption
  • Supports multipoint networks with individual nodes
  • Power: 3 to 5V
