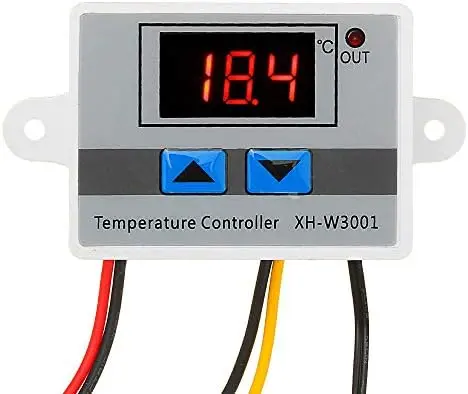

Temperature Thermostat Controller XH-W3001 Digital LED NTC Sensor 10A 12V 220VAC

Temperature Thermostat Controller XH-W3001 Digital LED NTC Sensor 10A 12V 220VAC

The XH-W3002 is a versatile digital thermostat module designed for precise temperature monitoring and control within a range of -50°C to 110°C. It features a 0.1°C resolution and is equipped with a relay output that allows it to operate heating or cooling devices. The included waterproof NTC sensor is housed in a stainless steel probe with IP68 protection, making it suitable for a variety of indoor and outdoor applications.

Package Includes:

  • 1 x XH-W3002 Digital Thermostat
  • 1 x 1m Waterproof NTC Sensor

24.00 AED 24.00 AED Tax Included
24.00 AED Tax Included

Not Available For Sale

This combination does not exist.

Thermostat Controller
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share





Features:

  • Temperature control from -50°C to 110°C with 0.1°C resolution
  • Relay output for controlling heating and cooling systems
  • Waterproof NTC sensor in stainless steel casing (IP68-rated)
  • Low power consumption (3W)
  • High-accuracy sensor with ±1% error margin
  • 12V DC 10A switch contact (resistive load)
  • Red LED display for clear temperature reading
  • Compact and lightweight design
  • Includes 1-meter NTC sensor probe
  • Operating temperature: 0°C to 60°C

Specifications:

  • Power Consumption: 3W
  • Adjustable Temperature Range: -50°C to 110°C (0.1°C resolution)
  • Temperature Accuracy: ±1%
  • Sensor Type: NTC, 10kΩ, 0.5%
  • Relay Output: 12V DC 10A (resistive load)
  • Relay Contact Type: Switching
  • Operating Temp: 0°C to 60°C
  • Display Type: Red LED
  • Module Dimensions: 60 x 45 x 30 mm
  • Sensor Length: 1 meter (waterproof)

How to Work with the Item:

  • Connect to 12V DC power.
  • Press UP and DOWN simultaneously for 3+ seconds to initialize settings.
  • "LLL" indicates a sensor fault; "HHH" indicates over-range temperature.
  • Real-time temperature is displayed continuously.
  • Use the menu options (P0, P1) to set start and stop temperatures.
  • P2 allows temperature calibration adjustment.
  • P3 sets a delay timer for starting output (if required).
  • Refer to the included manual for detailed mode configuration.
