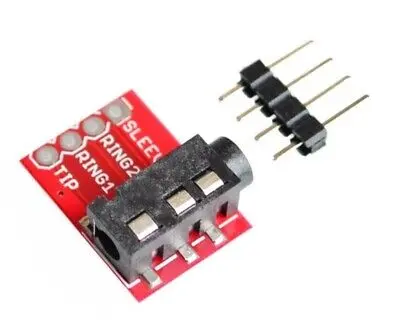

Audio Stereo Breakout Module 4 Pin 3.5mm Red For Arduino

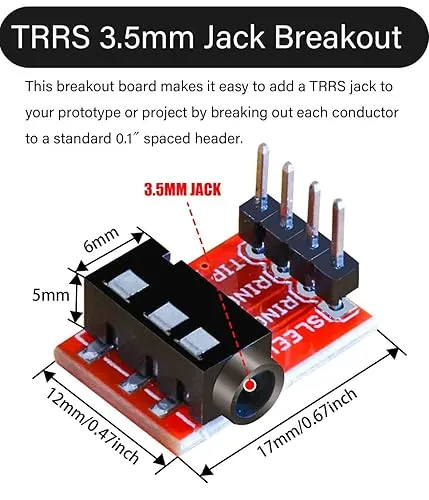

The Audio Stereo Breakout Module 4 Pin 3.5mm (Red) for Arduino is a breakout board designed for a 3.5mm stereo jack. It provides compatibility with various project and prototyping boards such as the MB-102 Breadboard by converting the jack connection into 4 2.54mm pins. This module facilitates access to the different channels within a stereo jack, serving as an ideal prototyping tool for audio-related projects.

Package Includes:

  • 1 x Audio Stereo Breakout Module 4 Pin 3.5mm (Red)

7.35 AED 7.35 AED (Tax included)

Add to cart
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days



Features:

  • Breakout board for a 3.5mm stereo jack.
  • Converts the jack connection into 4 2.54mm pins.
  • Compatible with project and prototyping boards like the MB-102 Breadboard.
  • Provides access to different channels within a stereo jack.
  • Ideal for audio-related prototyping projects.

Specifications:

  • Color: Red
  • Connector Type: 3.5mm stereo jack
  • Pin Count: 4
  • Pin Spacing: 2.54mm

Connections:

  • Ring 2 - Left Channel (L): Connects to the left audio signal of the 3.5mm stereo jack.
  • Ring 1 - Right Channel (R): Connects to the right audio signal of the 3.5mm stereo jack.
  • Sleeve - Ground (GND): Common ground shared by the left and right audio channels.
  • Tip - Mic / Detect (Optional): Fourth pin can be used for microphone input or jack detection, depending on the jack wiring.
