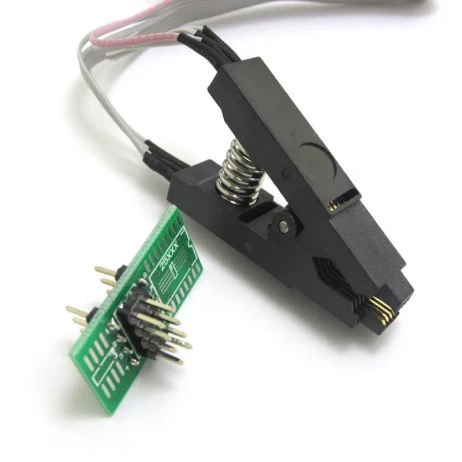

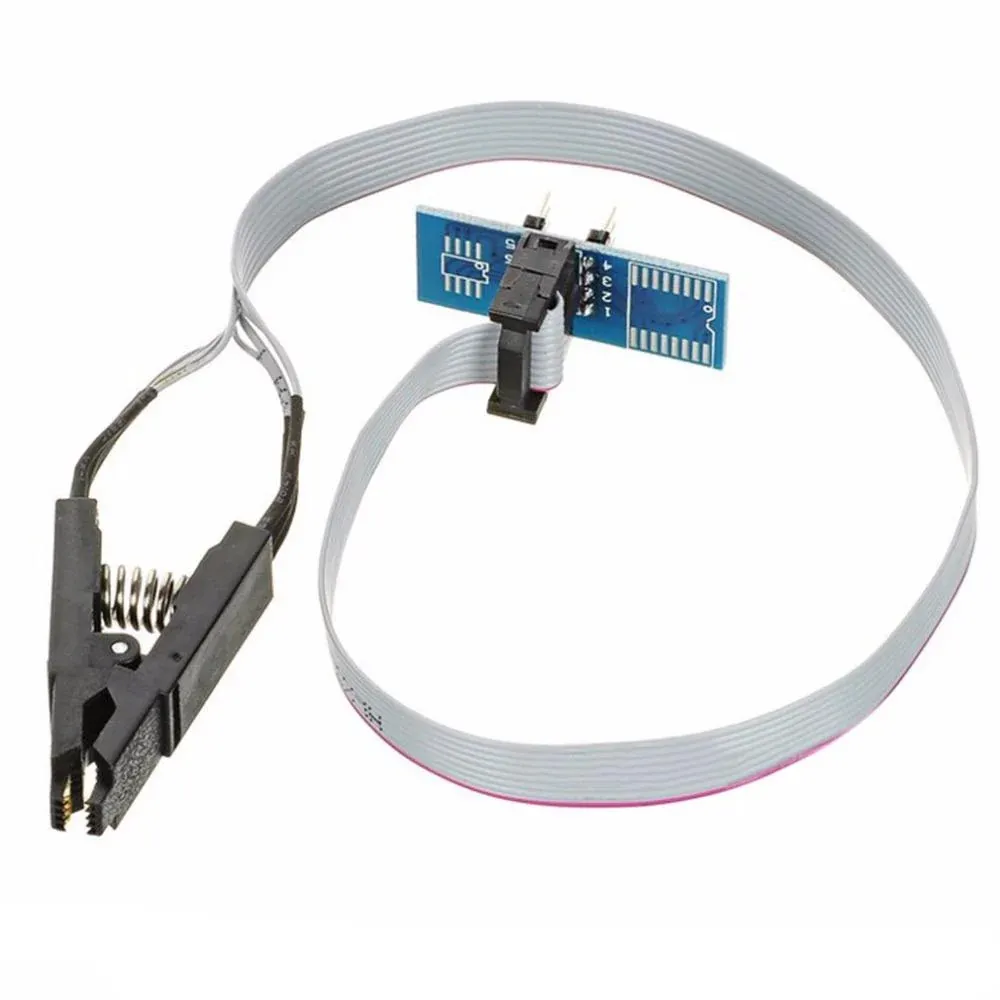

These clips provide a secure and non destructive way to interface with surface mount memory chips. With a spring loaded mechanism and wide compatibility they are widely used by technicians engineers and hobbyists working on embedded systems and electronic repairs.
Features
- Compatible with multiple EEPROM families including 24Cxx 25Cxx 93Cxx 95xxx and 25Lxx
- Designed for SOIC8 and SOP8 chip packages
- Spring loaded mechanism ensures stable and reliable pin contact
- Non destructive connection without soldering or permanent wiring
- Suitable for programming testing debugging and data recovery tasks
Specifications
- Type Test clip
- Connector type Test clip
- Pin format SOIC SOP
- Dimensions thirty eight by fifteen by eighteen millimeter length width height
- Weight ten gram
How to Use
- Identify whether the target memory chip uses an SOIC8 or SOP8 package
- Align the clip correctly according to the chip orientation and pin layout
- Attach the test clip carefully to ensure all pins are in contact
- Connect the clip cable to the programmer or debugging device
- Perform reading writing or testing operations using the programming tool
Applications
- Reading and programming BIOS chips on computer motherboards
- Flashing firmware on microcontrollers
- Data recovery from faulty or corrupted Flash memory chips
- Debugging and testing embedded electronic systems
Caution
- Do not apply excessive force to avoid damaging the chip or PCB
- Ensure clean and stable connections to prevent data errors
- Always verify correct pin orientation before powering the device
