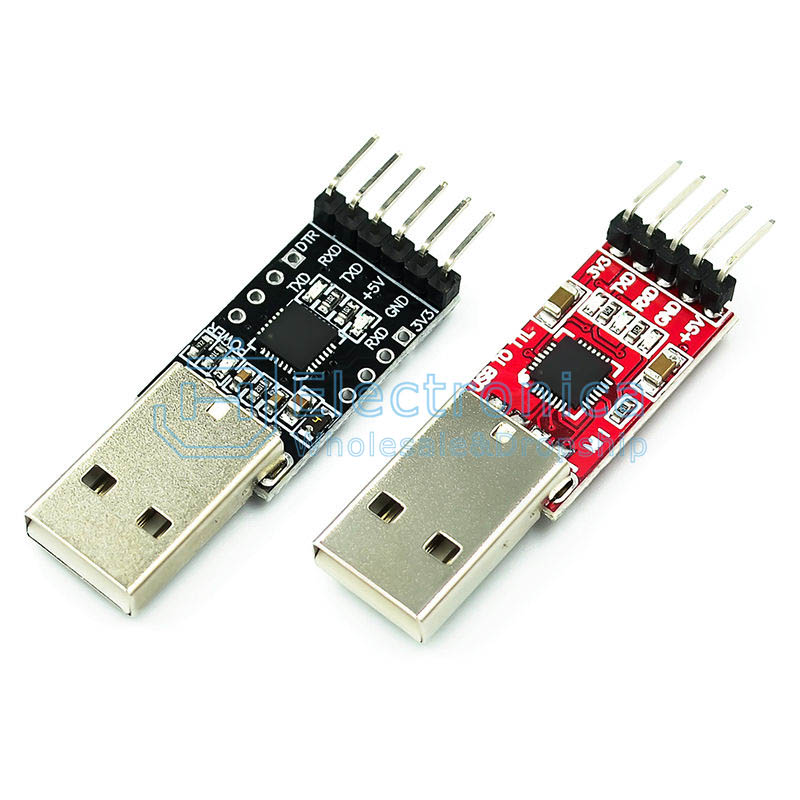

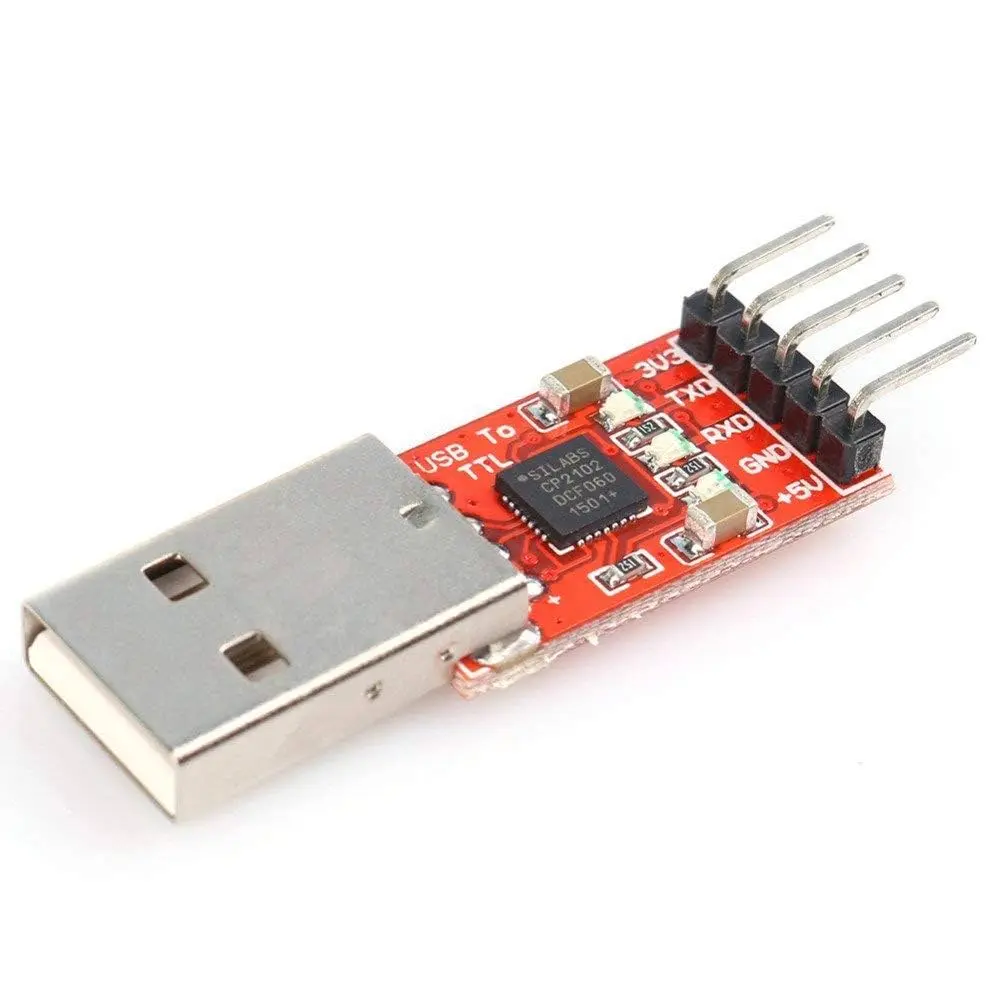

When connected to a computer USB port the module is recognized as a virtual COM port through the driver enabling seamless communication with microcontrollers development boards and embedded systems. It is widely used for programming debugging and serial data exchange applications.
Features
- Built around the CP2102 USB to UART controller chip
- USB full speed compliant interface
- Integrated crystal oscillator and EEPROM
- Asynchronous UART interface with full modem signal support
- Receive buffer size of five hundred twelve bytes
- Transmit buffer size of five hundred twelve bytes
- Supports hardware handshake and software flow control
- Supports eight data bits one stop bit and optional parity
- Resettable fuse for short circuit and overcurrent protection
- Three onboard LEDs for power receive and transmit indication
- Provides both three point three volt and five volt power outputs
- Onboard clock circuit no external components required
- Power on reset circuit included
- Reset signal output compatible with Arduino Pro Mini and similar boards
Specifications
- Chip CP2102
- USB standard USB two point zero
- Printed circuit board size twenty six point five by fifteen point six millimeter
- Weight four gram
- Power output three point three volt and five volt

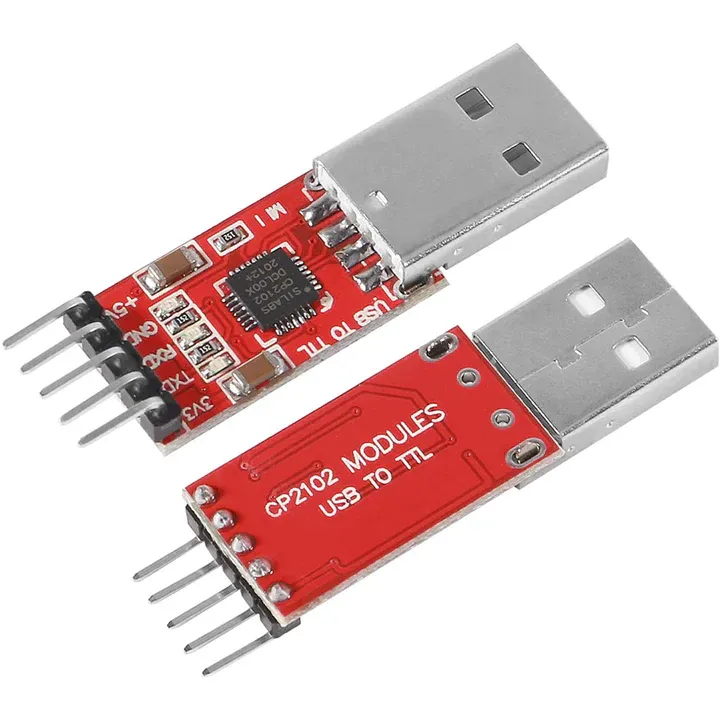

Pinout:
Compatible Operating Systems
- Windows ninety eight
- Windows Me
- Windows two thousand
- Windows XP
- Windows seven
- Mac OS nine
- Mac OS
- Windows CE
- Linux version two point forty or later
