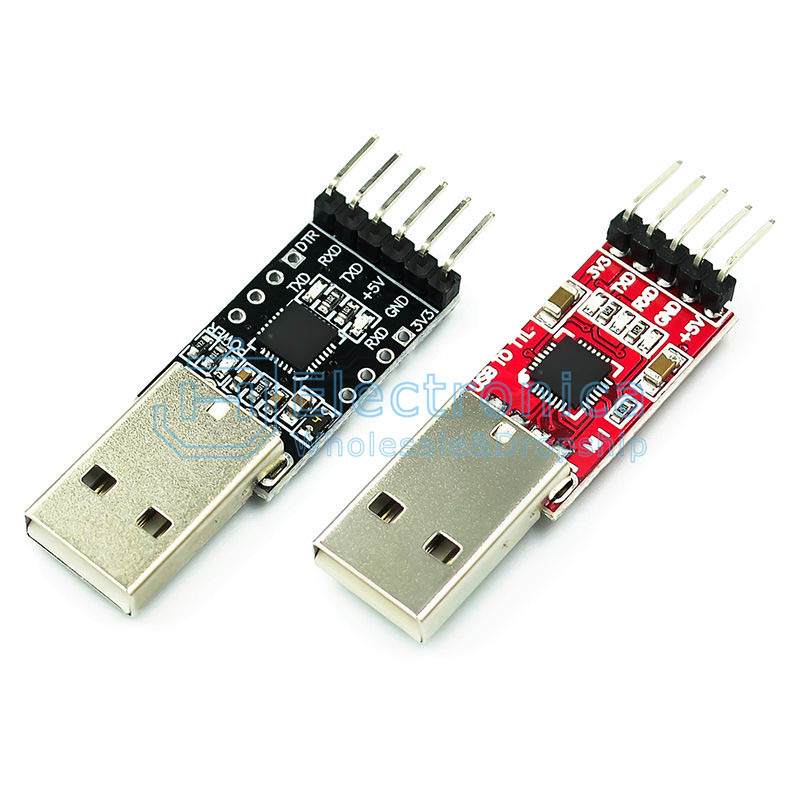

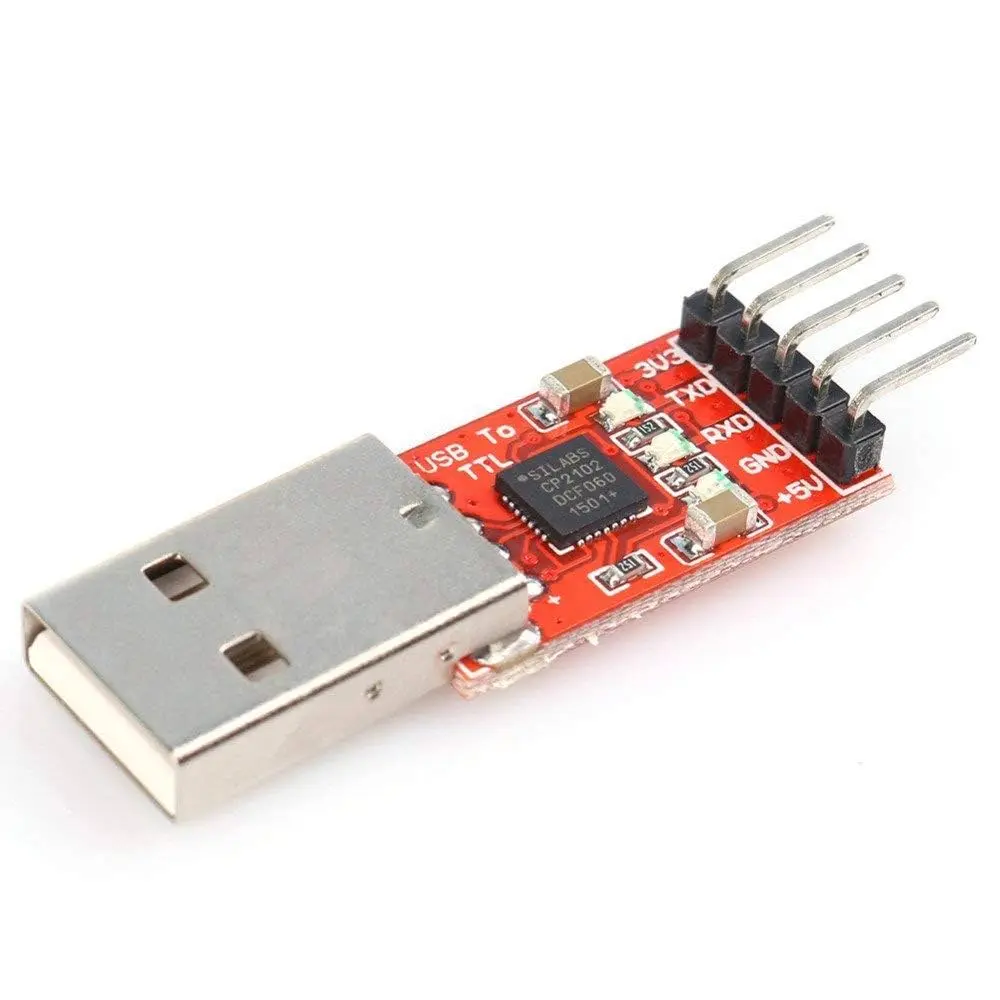

USB to TTL Serial UART CP2102 Converter Red

USB to TTL Serial UART CP2102 Converter Red

The CP2102 is a highly integrated USB 2.0 full-speed function controller with a built-in USB transceiver, crystal oscillator, EEPROM, and asynchronous serial data bus (UART). It supports full-featured modem signals without requiring external USB components. This module allows your PC’s USB port to act as a virtual COM port, providing convenient communication with microcontrollers and development boards.

Package Includes:

  • 1 x USB to TTL Serial UART CP2102 Converter

15.75 AED 15.75 AED Tax Included
15.75 AED Tax Included

Not Available For Sale

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



Specifications:

  • PCB Size: 26.5mm x 15.6mm
  • Weight: 4g
  • Chip: CP2102
  • USB Version: USB 2.0
  • Buffer: 512-byte receive buffer and 512-byte transmit buffer
  • Handshake Support: Hardware or X-ON/X-OFF
  • Data Format: 8 data bits, 1 stop bit, optional parity bit
  • Fuse: Resettable fuse for short-circuit protection
  • Indicators: Power, data reception, and transmission LEDs
  • Power Output: 3.3V and 5V selectable
  • Clock Circuit: Built-in
  • Reset Circuit: Built-in power-on reset circuit
  • Reset Signal Output: Can connect directly to Arduino Pro Mini and similar boards
  • Interface: Compatible with asynchronous serial handshakes and control signals
  • Operating System Compatibility:
    • Windows 98 / Me / 2000 / XP / 7
    • Mac OS 9 / Mac OS X
    • Windows CE
    • Linux 2.4.0 or later
