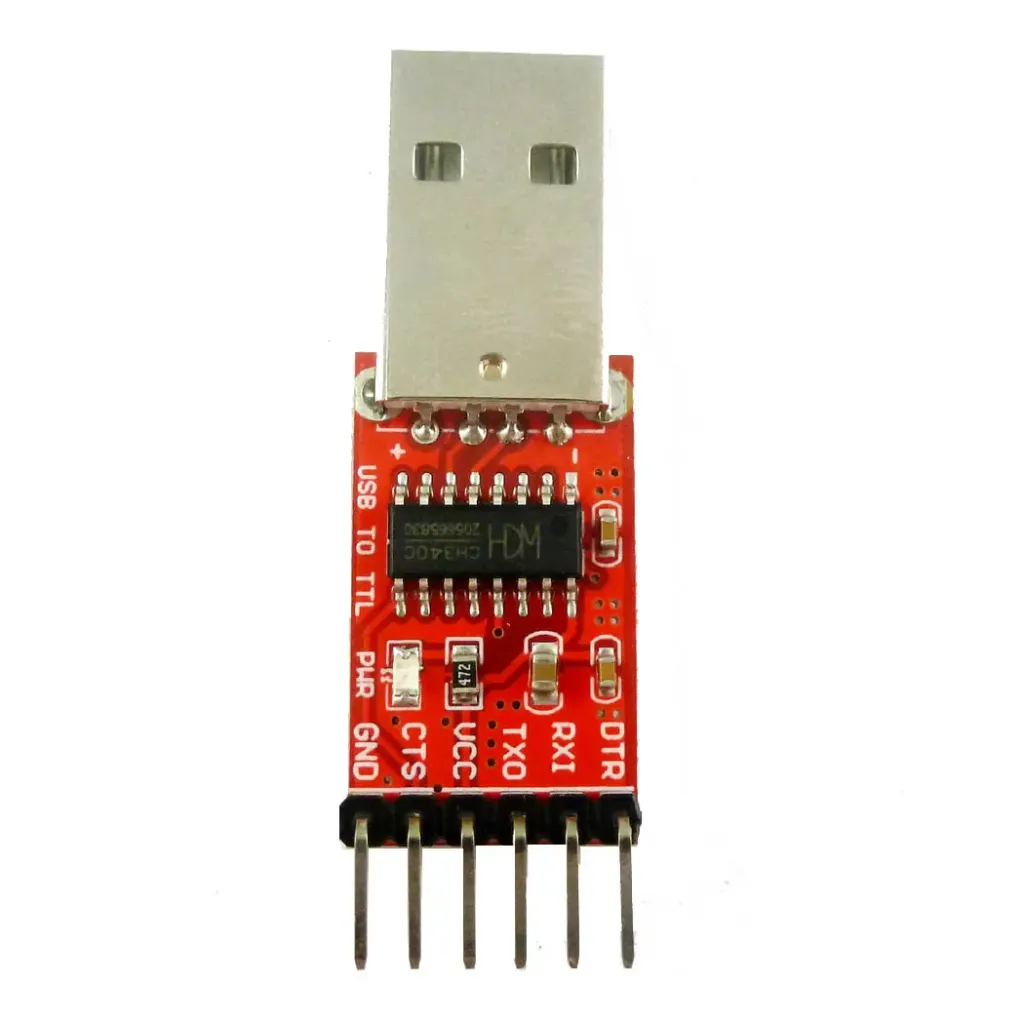

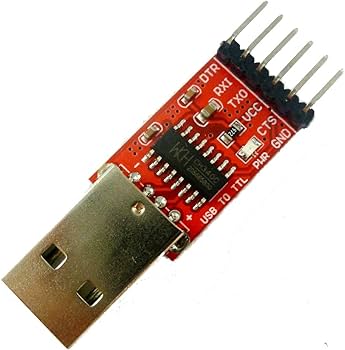

USB to TTL Serial Converter 6Pins CH340 Red

This serial converter module is based on the stable and widely used CH340 chip. It provides reliable USB to TTL serial communication and is fully compatible with USB 1.1 USB 2.0 and USB 3.0 standards. With baud rate support up to 256 kbps, it is an excellent replacement for FT232 modules when uploading sketches to Arduino Pro Mini boards. The module includes onboard receiver, transmitter, and power indicator LEDs and works seamlessly with Arduino Pro Mini ESP01 and standalone ATmega-based homemade Arduino boards.

Package Includes

1 x USB to TTL serial converter module based on CH340

30.45 AED (Tax included)

Add to cart

Add to wishlist

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Features

Uses stable performance CH340 USB to serial chip
Fully compatible with USB 1.1 USB 2.0 and USB 3.0
Supports baud rates up to 256 kbps
Direct replacement for FT232 in Pro Mini sketch uploads
Onboard power receive and transmit indicator LEDs
Compatible with Arduino Pro Mini ESP01 and ATmega based boards

Specifications

Chip CH340
Maximum baud rate 256 kbps
LED indicators power receive transmit
Pins CTS TXO RXI DTR VCC GND
Pin count 6 pins
Pin pitch 2.54 mm
Board size 26 mm x 15 mm excluding USB and pins

Compatible Operating Systems

Windows 98SE
Windows ME
Windows 2000 SP4
Windows XP SP2 and above 32 bit and 64 bit
Windows Server 2003 32 bit and 64 bit
Windows Server 2008 and 2008 R2 32 bit and 64 bit
Windows Vista 32 bit and 64 bit
Windows 7 32 bit and 64 bit

Driver Download

CH341SER ZIP

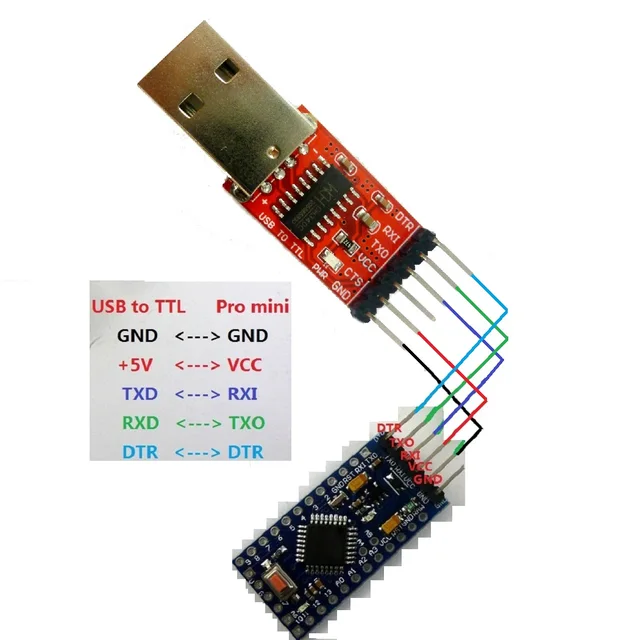

Pinout

CH340 Programming Cable USB To TTL Serial Converter Cable - 100cm ...

Pin	Description
DTR	Data Terminal Ready output used for auto reset and flow control
RX	Serial data receive
TX	Serial data transmit
VCC	Power input
CTS	Clear to send input for flow control
GND	Ground
