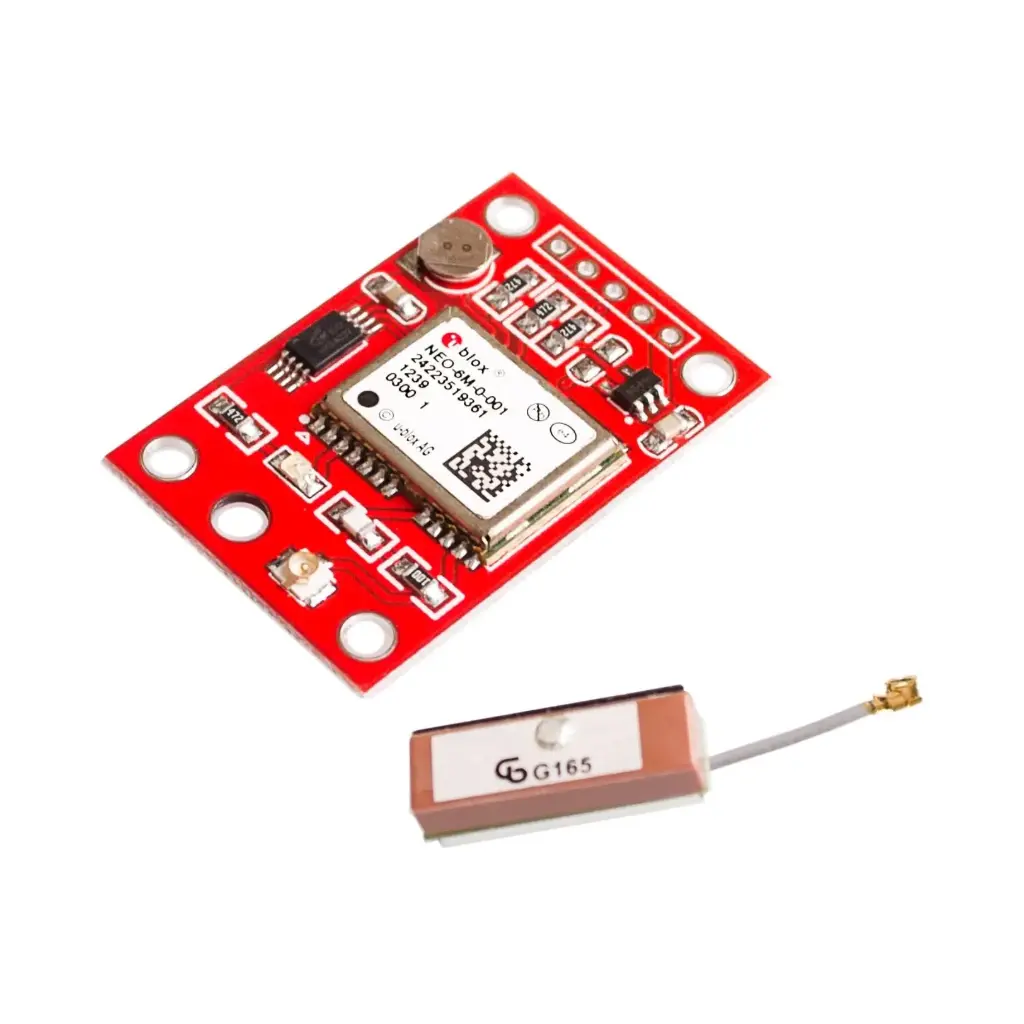

GPS Module NEO-6M-0-001 Red With APM2.5 Antenna

GPS Module NEO-6M-0-001 Red With APM2.5 Antenna

This GPS receiver is built around the high-end u-Blox NEO-6M-0-001 GPS module. It is compatible with APM2 and APM2.5, and the EEPROM can save all your setup data. The module has a TTL RS232 interface that operates on 3–5V with a default baud rate of 9600bps. It does not include a battery for safety reasons during airmail shipping, but it supports a rechargeable battery (model MS621FE) that requires soldering.

Package Includes

  • 1 x GPS Module NEO-6M-0-001 GPS Red
  • 1 x APM2.5 Antenna

36.75 AED 36.75 AED Tax Included
36.75 AED Tax Included

Not Available For Sale

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



Features

  • Compatibility: APM2 and APM2.5
  • EEPROM: Can save setup data
  • Interface: TTL RS232
  • Voltage: 3–5V
  • Default Baud Rate: 9600bps
  • Battery: Not included; supports MS621FE (requires soldering)
  • Test Application: Available from u-Blox website (u-center version 6.31)

Specifications

  • Power Supply: 3V/5V
  • Model: GPS-NEO-6M-001
  • Antenna: Ceramic antenna
  • Battery: Rechargeable battery backup
  • Signal Light: LED indicator
  • Antenna Size: 25×25 mm
  • Module Size: 25.5×31.5 mm
  • Mounting Hole: 2 mm
  • Default Baud Rate: 9600
  • Default Output: Compatible with NMEA0183 protocol

Pinout of the Module

NEO-6M-0-001 GPS Description
Vcc Power 3.3 Volt
GND Ground
TXD Connected to RX on MCU
RXD Connected to TX on MCU

Resources

  • Ublox Program: U-center for Windows – a powerful tool for evaluating and configuring u-Blox GPS receivers, including the NEO-6M
  • Library: TinyGPS++
