USB Type B Receptacle Female Breakout Board

USB Type B Receptacle Female Breakout Board

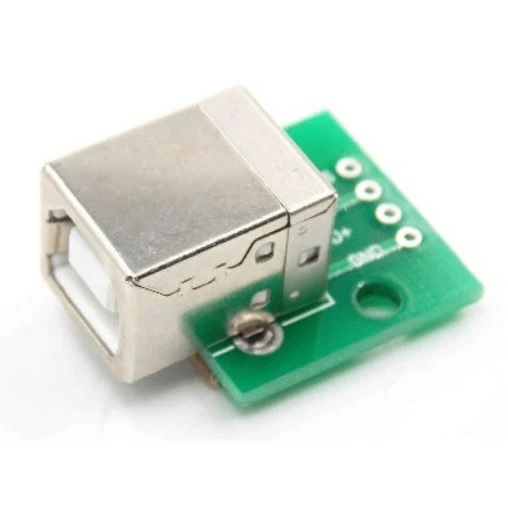

This USB Type B Female Breakout Board is a simple and practical adapter designed to bring out all essential USB signals for easy prototyping. It breaks out the VCC, GND, D−, D+, and Shield Ground pins from a USB Type B female connector to standard 0.1″ (2.54 mm) pitch header pins. This makes it ideal for adding USB connectivity to breadboard-based projects, prototype boards, or custom PCBs quickly and conveniently.

Package Includes

  • 1 × USB Type B Female Breakout Board
5.78 AED 5.78 AED (Tax included)

Add to cart
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days



Features

  • USB Type B Female Connector: Provides a reliable and standard USB interface for your project.
  • Full Pin Breakout: All 5 USB pins (VCC, GND, D−, D+, and Shield Ground) are brought out to header pins.
  • Breadboard Compatible: Standard 0.1″ pitch header allows direct insertion into breadboards.
  • Easy Prototyping: Enables quick and clean USB integration without complex wiring.
  • Mounting Support: Includes four mounting holes for secure installation on enclosures or prototype boards.
  • No External Power Required: Power is supplied directly through the USB connection.
  • Compact Design: Small footprint suitable for space-constrained projects.

Specifications

  • Connector Type: USB Type B Female
  • Pin Pitch: 0.1″ (2.54 mm)
  • Breakout Pins: VCC, GND, D−, D+, Shield GND
  • Mounting Holes: 4
  • Board Size: 2.21 cm × 2.39 cm

Applications

  • Adding USB connectivity to DIY electronics projects
  • Breadboard and prototype development
  • Microcontroller and embedded system projects
  • Educational and testing applications
