Adapter 8PIN SMD TO DIP Breakout

Adapter 8PIN SMD TO DIP Breakout

Electronic components are either mounted directly on the surface of a printed circuit board (surface mount or SMT) or have leads that go through holes drilled in the circuit board (through-hole or TH). A surface mount to through-hole adapter board allows you to use one type of component with the opposite type of board.

Package Includes:

  • 1 x 8PIN SMD to DIP Adapter Board

2.00 AED 2.00 AED Tax Included
2.00 AED Tax Included

Not Available For Sale

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



What is it used for?

SMT to through-hole adapter boards are mainly used during the prototyping phase of electronic projects. They are very helpful for testing and modifying a circuit before mass production or final assembly. These adapter boards help with debugging and make it easier to fix any design issues before committing to a permanent PCB layout.

Types and Features:

SMT to through-hole adapter boards come in a variety of types, depending on your specific needs. They can be:

  • Single or double-sided
  • Pre-scored for easy separation into individual modules
  • Available in different pitch sizes to match various SMD packages

Product: 8PIN SMD to DIP Adapter Board

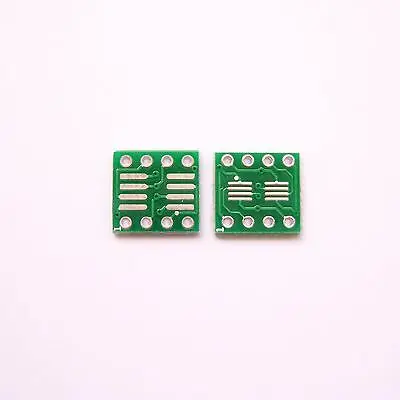

This is an 8-pin SMD to DIP adapter – a perfect PCB if you do not want to solder your IC directly onto your main PCB. The board is double-sided and supports a variety of common SMD package types.

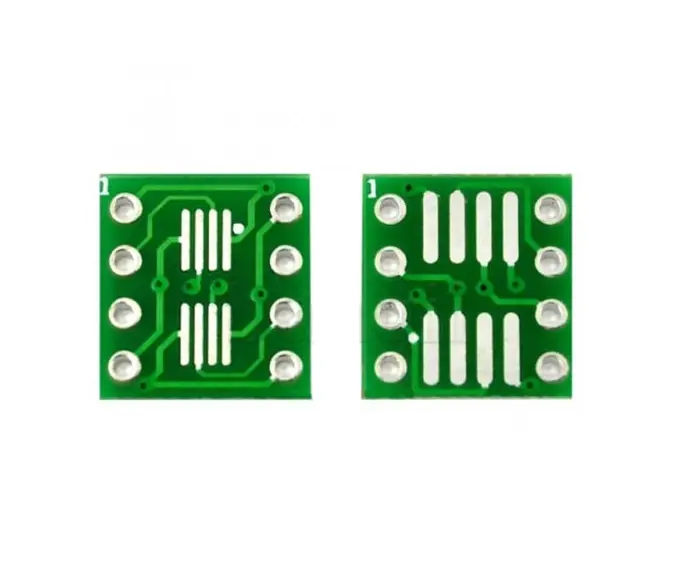

Side One:

  • Pitch size: 0.65mm
  • Supports MSOP8, SSOP8, TSSOP8 packages

Side Two:

  • Pitch size: 1.27mm
  • Supports SO8, SOP8, SOIC8 packages

Specifications:

  • Pin Count: 8 Pins per side
  • Pin Spacing: 0.65mm / 1.27mm
  • Size: 17.5mm × 20.5mm
  • Board Thickness: 1.6mm
  • Type: Double-sided SMD to DIP adapter
